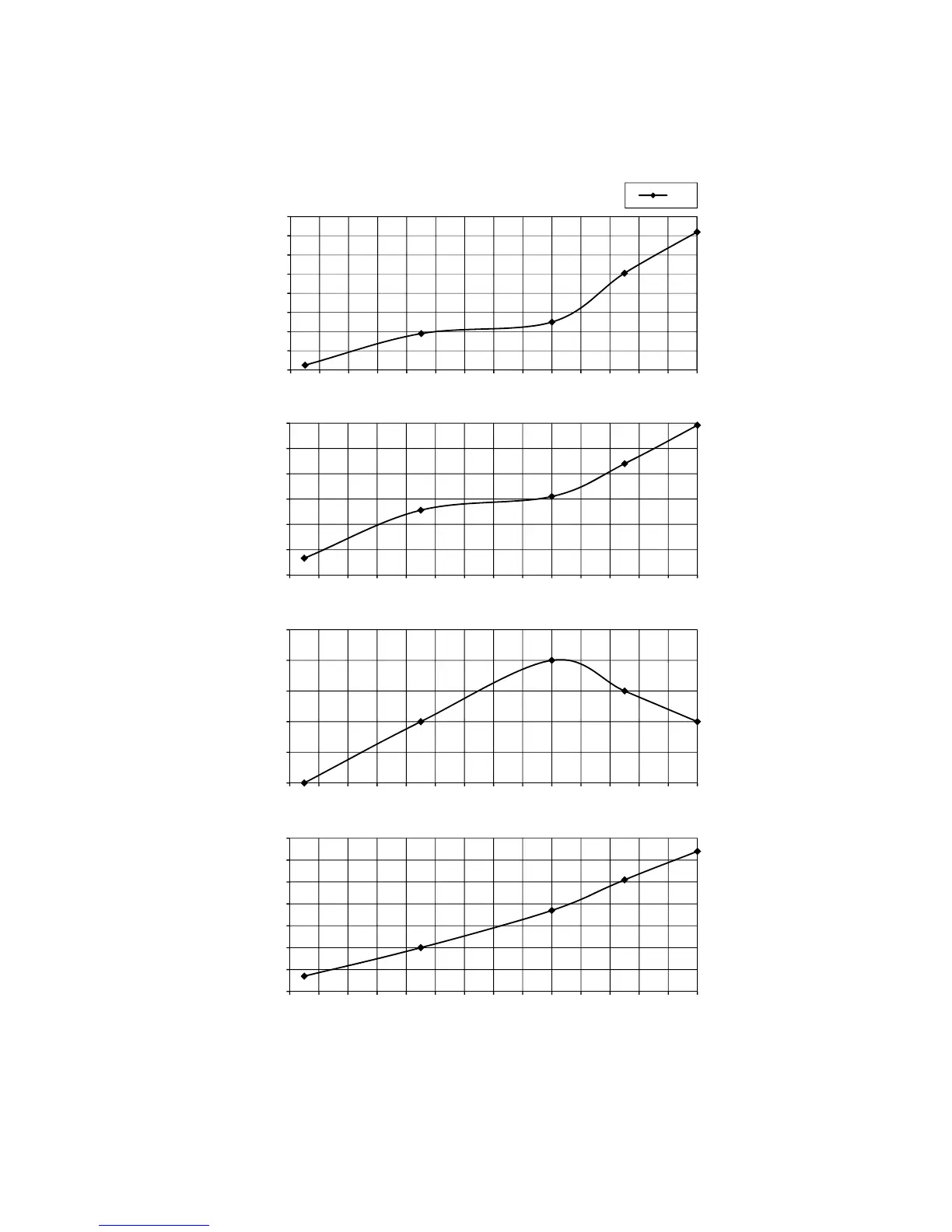

 Heating Characteristic
[Condition] Room temperature: 20°C (DBT), 12°C (WBT)
Operation condition: High fan speed
Piping length: 5.0 m
Voltage: 230V, 50Hz
A) Indoor unit capacity: Heating (2.0), CS-E7QKEW
7°C & 12°C (Outdoor Air Temp.) = Heating Overload Protection activated
30.000
32.000
34.000
36.000
38.000
40.000
42.000
44.000
46.000
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
Outlet Air
(°C)
Outdoor Air Temperature (°C)
230
1.000
1.500
2.000
2.500
3.000
3.500
4.000
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
Heating
Capacity (kW)
Outdoor Air Temperature (°C)
6.400
6.600
6.800
7.000
7.200
7.400
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
Current
(A)
Outdoor Air Temperature (°C)
0.300
0.400
0.500
0.600
0.700
0.800
0.900
1.000
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
Gas Side Piping
Pressure (MPa)
Outdoor Air Temperature (°C)
