18.4.3 Three Indoor Unit Operation

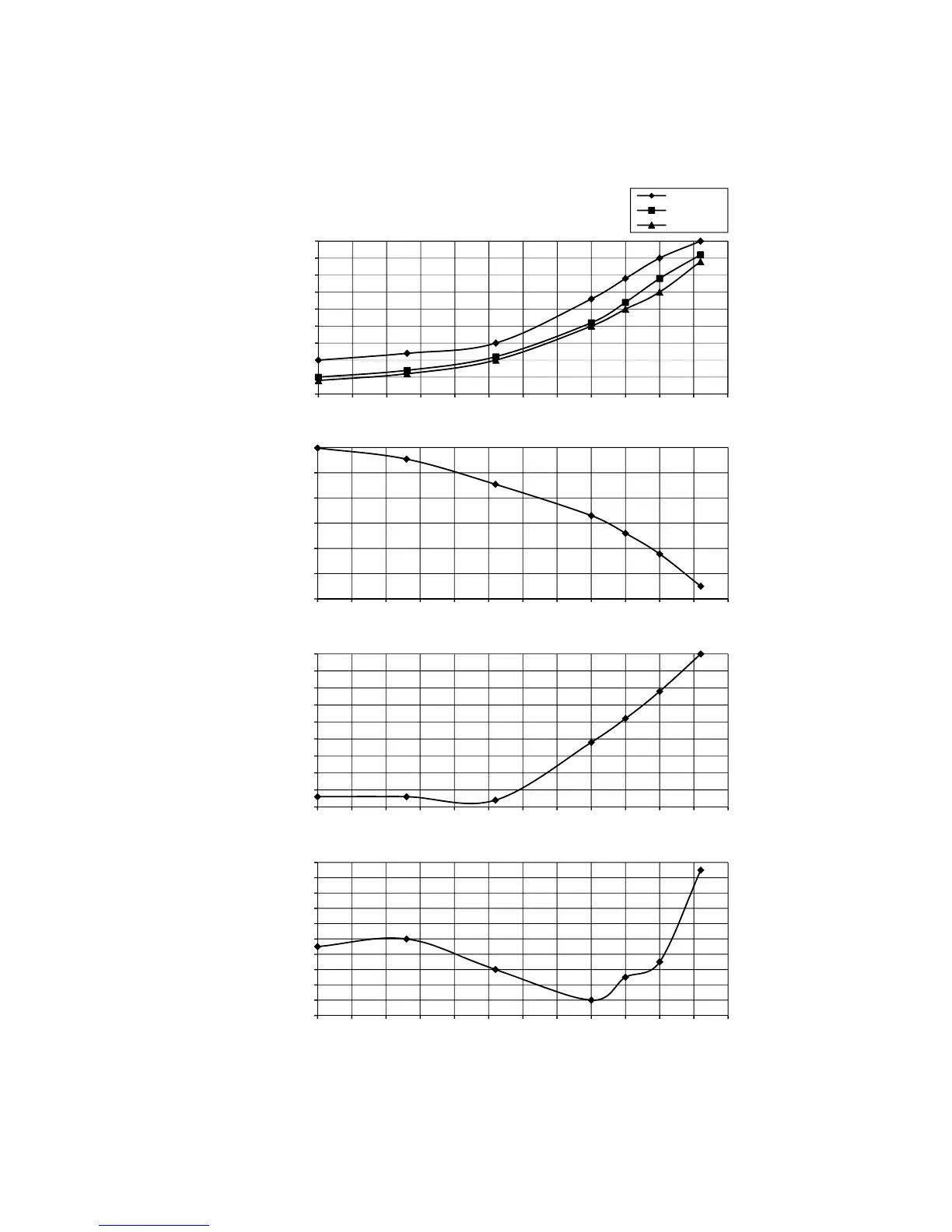

 Cooling Characteristic
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Operation condition: High fan speed
Piping length: 5.0 m
Voltage: 230V, 50Hz
A) Indoor unit capacity: Cooling (2.0 + 2.5 + 3.2), CS-E7QKEW + CS-E9QKEW + CS-E12QKEW
14.000
14.500
15.000
15.500
16.000
16.500
17.000
17.500
18.000
18.500
-10-5 0 5 101520253035404550
Outlet Air
(°C)
Outdoor Air Temperature (°C)
E7QKEW
E9QKEW
E12QKEW
5.500
6.000
6.500
7.000
7.500
8.000
8.500
-10-5 0 5 101520253035404550
Cooling
Capacity (kW)
Outdoor Air Temperature (°C)
4.000
4.500
5.000
5.500
6.000
6.500
7.000
7.500
8.000
8.500
-10-5 0 5 101520253035404550
Current
(A)
Outdoor Air Temperature (°C)
1.100
1.120
1.140
1.160
1.180
1.200
1.220
1.240
1.260
1.280
1.300
-10-5 0 5 101520253035404550
Gas Side Piping
Pressure (MPa)
Outdoor Air Temperature (°C)
