You can improve sound quality by connecting this unit to an amplifier or system component using the audio cable
or the optical digital audio cable.

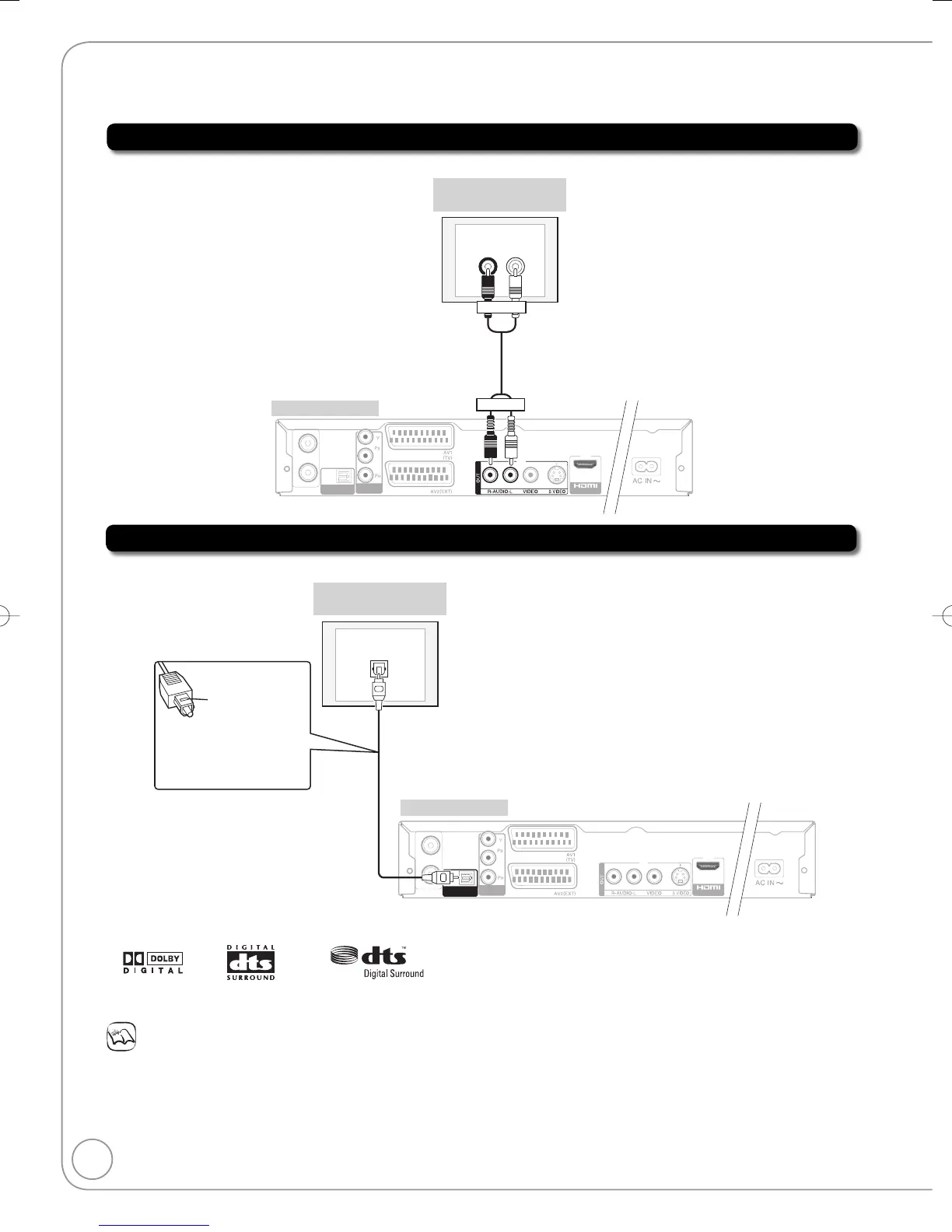

Using an Audio Cable for Better Sound
Use this connection to play sound through speakers connected to an amplifier or system component.
AV1
(
TV
)
VIDEO OUT
AV OUT
AV2
(
EXT
)
RF
OUT
DIGITAL AUDIO OUT
(
PCM/ BITSTREAM
)
OPTICAL
RF
IN
AV1
(
TV
)
COMPONENT
VIDEO OUT
AV2
(
EXT
)
Rear of Amplifier or
System Component
Rear of this unit
AUDIO IN
R L
Red White
Red White
AV OUT
Audio cable
(not included)
Using an Optical Digital Audio Cable for Better Sound (Optical Digital Audio Cable not included)
This method allows you to enjoy multi-channel surround sound on DVD-Video.
Rear of this unit
OPTICAL IN
Rear of Amplifier or
System Component
AV1
(
TV
)
VIDEO OUT
AV O U T
AV2
(
EXT
)
RF
OUT
DIGITAL AUDIO OUT
(
PCM/ BITSTREAM
)
OPTICAL
RF
IN
AV1
(
TV
)
COMPONENT
VIDEO OUT
AV2
(
EXT
)
DIGITAL AUDIO OUT
(
PCM/ BITSTREAM
)
AV O U T
Insert fully with
this side up.
Do not bend
cable sharply.
Optical digital audio cable
(not included)
Connect an amplifier or system component with a built-in decoder displaying these logo marks or MPEG decoder.
Adjust settings in “Digital Audio Output” ( 49).
Notes
When this unit is connected to an amplifier with an optical digital audio cable and connected to a television with an HDMI cable, you can enjoy
the highest quality of audio from the disc by setting “Digital Audio Output” to “Optical Only” in the Setup menu ( 51).
In this case audio is only output from the amplifier not the television.
You cannot use DTS Digital Surround decoders not meant for DVD.
Before purchasing an optical digital audio cable, check the terminal shape of the equipment to be connected.
Additional Connections
