Panasonic DMR-E53EG - Page 151

220
R7802
2700
R7825
R7827 3300R7826 2200R7819 3300R7818 2200R7817 2700R7809 2700
33
R7801
321
(REMOTE CON.SENSOR)
B3RAD0000071
IR7801
EVQ11G07K
S7820
TIME-WARPSKIP-R
EVQ11G07K
S7813
EVQ11G07K
S7811
REC
EVQ11G07K
S7802
SKIP-F PLAY
EVQ11G07K
S7821
EVQ11G07K
S7819
CH-UPSTOP
EVQ11G07K
S7812
EVQ11G07K
S7809
CH-DOWNOPEN/CLOSE
EVQ11G07K
S7801
TIME-WARP
B3ABA0000396
D7801
LED DRIVE
TIME WARP
UNR221400L
QR7801
1
C7801
GND
IR
N SW 5V
TIME WARP LED
KEYIN1
KEYIN3
KEYIN2
P7801
(TIMER)
MAIN P.C.B.
TO P7504
12
11
10
9
8
7
6
5
4
H
3
2
1

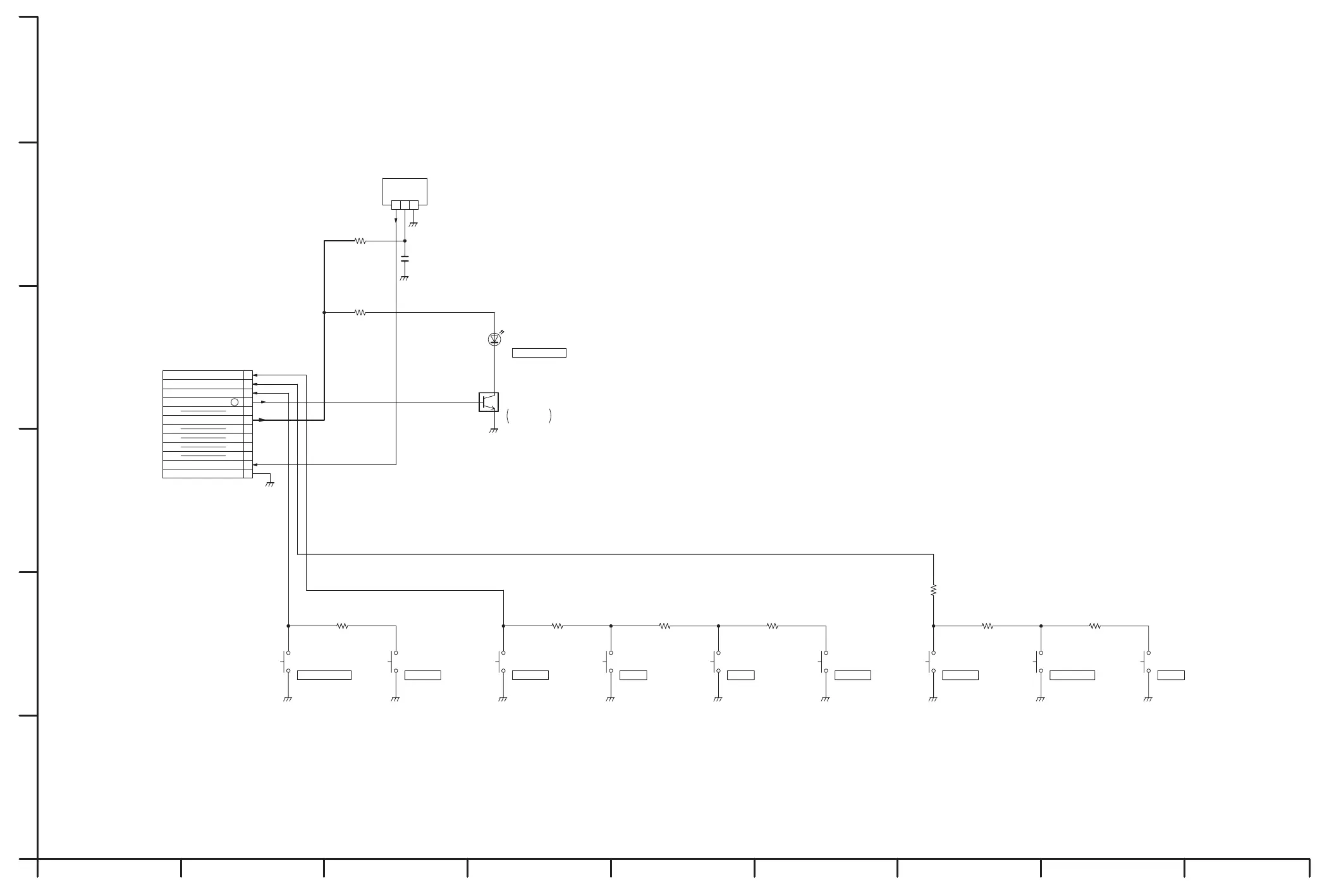

Schematic Diagram
Front (R)
DMR-E53EG,E55EB/EG/EBL/EP
