10 Service Fixture and Tools
TOP PREVIOUS NEXT
Part
Number
Description Compatibility
RFKZ0125 Extension FFC (Digital P.C.B. - DVD-RAM Drive / 40 Pin) Same as E50 series
RFKZ0168 Extension Cable (Main P.C.B. - Fan / 3 Pin) Same as E50 series
RFKZ0197 Extension Cable (Main P.C.B. - DVD-RAM Drive / 8 Pin) New
RFKZ0214 Extension Cable (MainP.C.B. - Digital P.C.B. / 88 Pin) New
RFKZ0215 Extension Cable (MainP.C.B. - Front (R) P.C.B. / 12 Pin) New
RFKZ0216 Extension Cable (MainP.C.B. - Power P.C.B. / 23 Pin) New
NOTE:

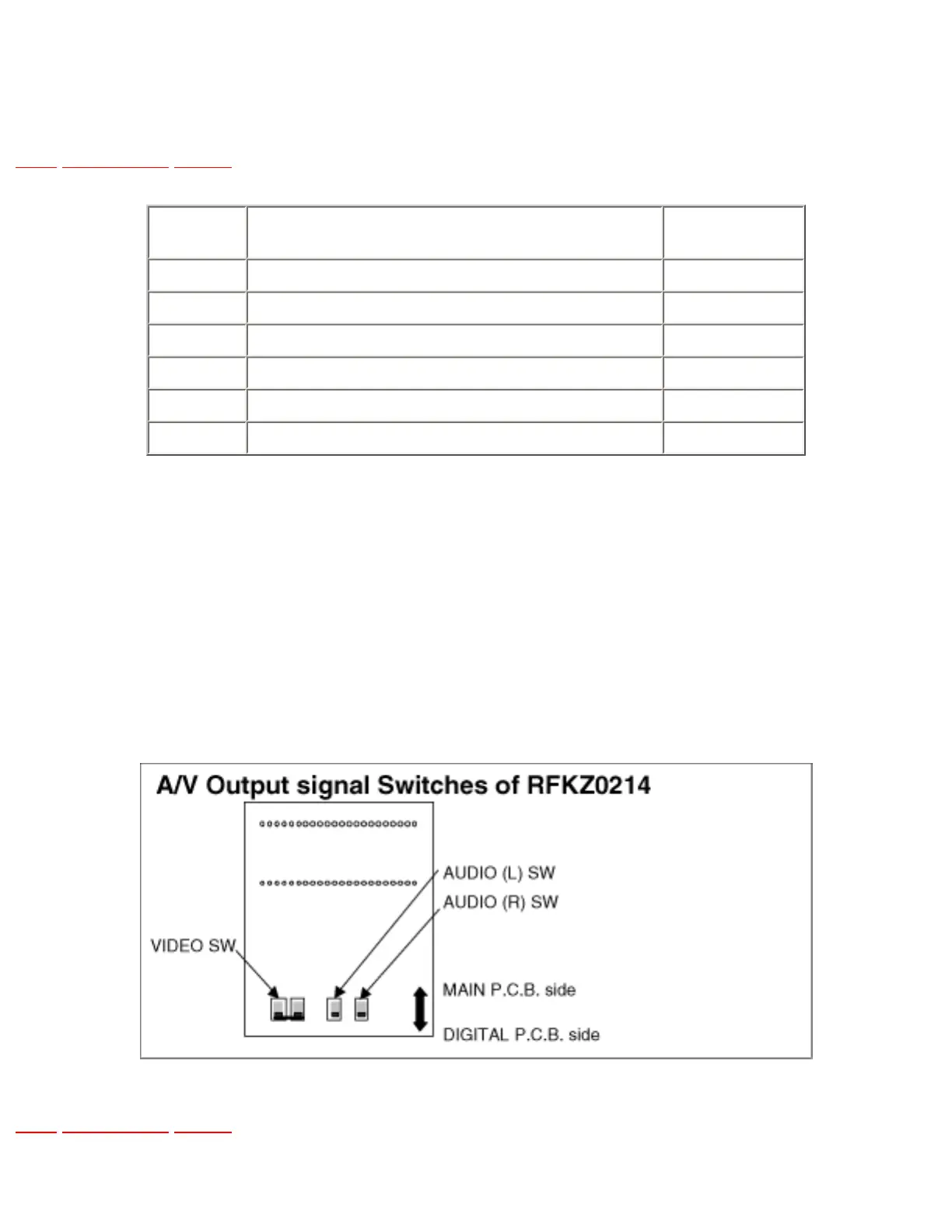

Extension Cable RFKZ0214 has A/V Output Signal switches.
Output signals can be switched from MAIN P.C.B. side or DIGITAL P.C.B. side.
When check MAIN P.C.B., turn switches to MAIN PCB side.
When check DIGITAL P.C.B., turn switches to DIGITAL P.C.B. side.
