Panasonic DMR-E53EG - Front Panel

9.5 Front Panel
TOP PREVIOUS NEXT

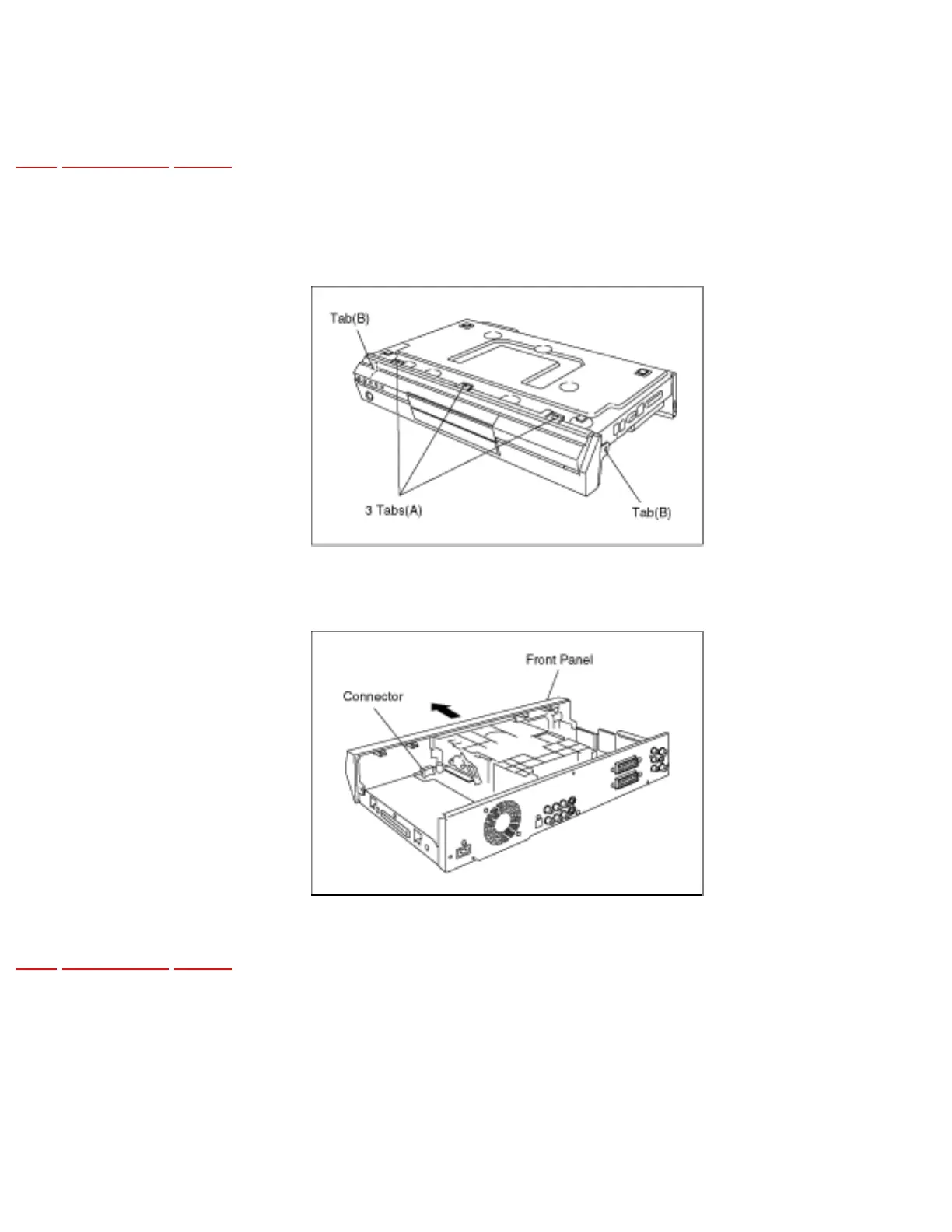

1. Remove 3 tabs (A) and 2 tabs (B) in this order. (The tab (A) and (B) should be removed at the
same time, respectively.)
2. Move the front panel to front side straight and slowly so to remove it with Connector.
