9.9 Main P.C.B.
TOP PREVIOUS NEXT

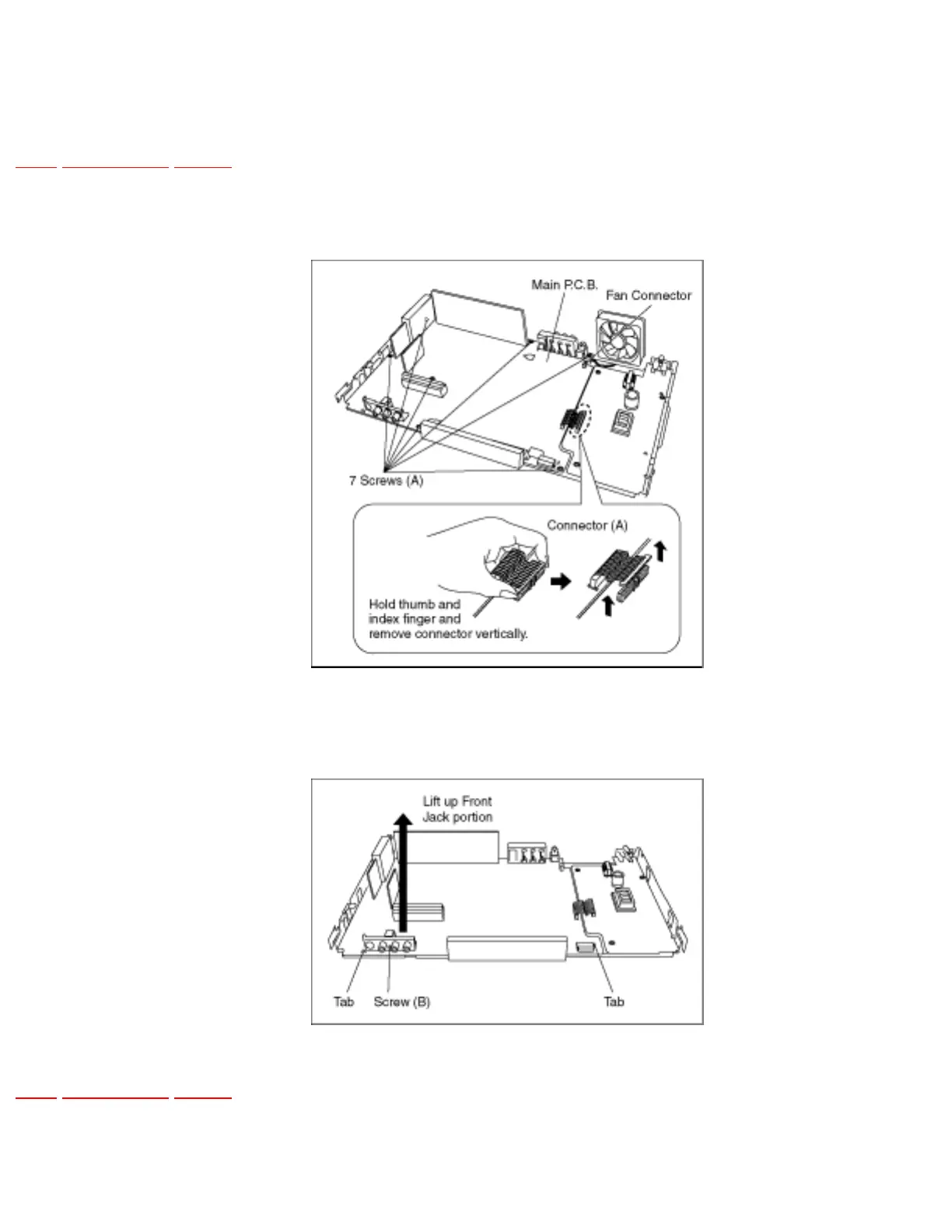

1. Remove the 7 screws (A), Connector (A) and Fan Connector.
2. Remove a Screw (B) and lift up Front Jack portion of Main P.C.B. slightly so to unlock Tab to
remove Main P.C.B..
