Panasonic DMR-EZ28K

59
RQT9046
Other SettingsOther Settings

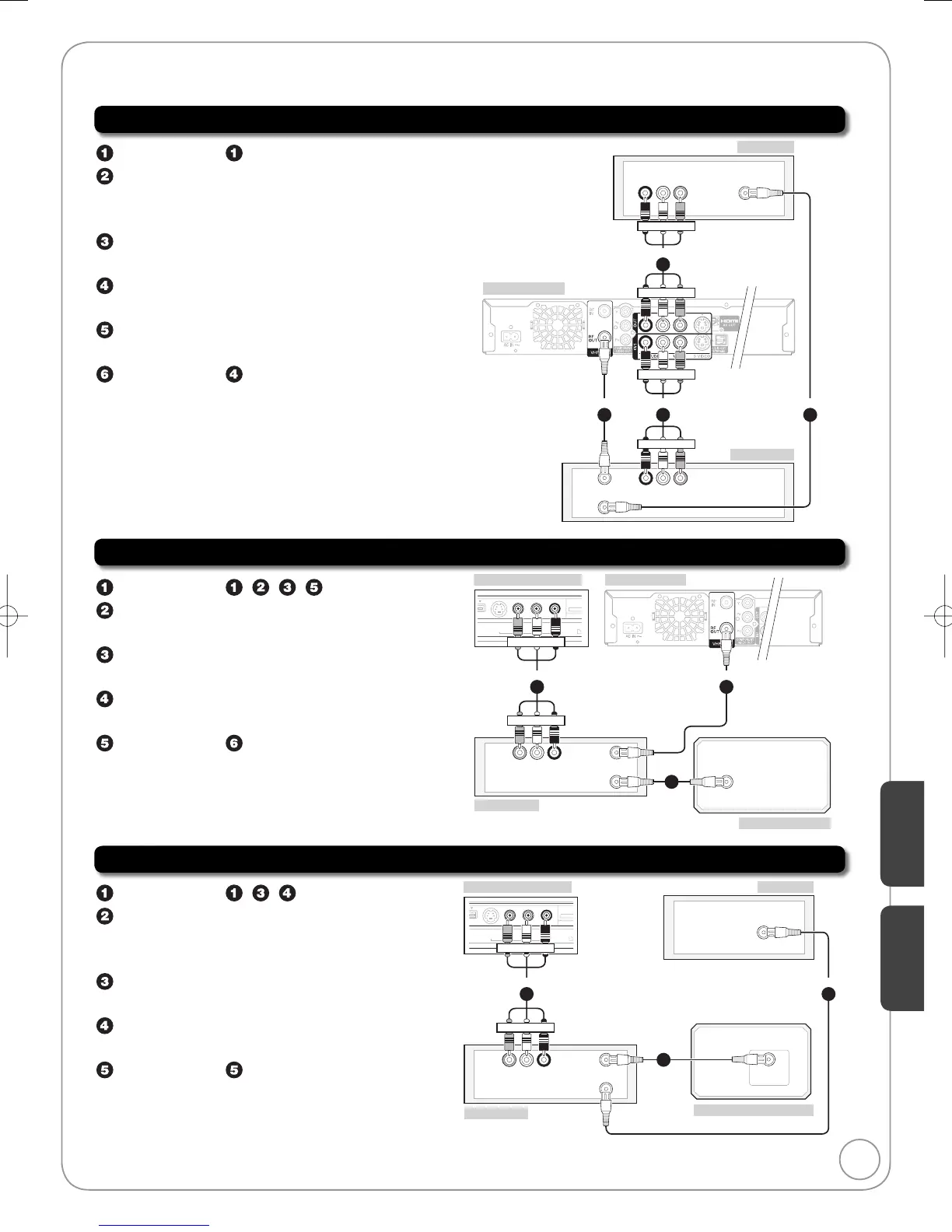

Adding a Video Cassette Recorder (VCR)
Additional coaxial cable and audio/video (AV) cable are required.
Connecting to a Television and a VCR (No Cable Box or Satellite Receiver)
Perform step on page 8.
75 Ω coaxial cable (included) from the “RF
OUT” on the VCR to the “VHF/UHF RF IN”
on the TV.
Audio/video cable (included) from the
“OUT” on the unit to the “AV IN” on the TV.
75 Ω coaxial cable from the “RF OUT” on
the unit to the “RF IN” on the VCR.
Audio/video cable from the “IN1” on the
unit to the “AV OUT” on the VCR.
Perform step on page 8.
AUDIO OUT
R L
VIDEO
OUT
RF IN
RF OUT
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO
IN
step
2
step
4
step
5
Red White Yellow
Red White Yellow
Rear of TV
Rear of this unit
Rear of VCR
AUDIO IN
R L
VIDEO
IN
step
3
Red White Yellow
Red White Yellow
Connecting to a Television, a Cable Box and a VCR
Perform step , , , on page 9.
75 Ω coaxial cable from the “RF OUT” on
the unit to the “RF IN” on the VCR.
75 Ω coaxial cable from the “RF OUT” on
the VCR to the “RF IN” on the cable box.
Audio/video cable from the “AV OUT” on
the VCR to the “ IN2 ” on the unit.
Perform step on page 9.
IN2
DV IN
S VIDEO VIDEO
L/MONO-AUDIO-R
AUDIO OUT
L R
VIDEO
OUT
RF IN
RF OUT
RF IN
step
4
Yellow White Red
Yellow White Red
step
2
step
3
Rear of VCR
Rear of Cable Box
Rear of this unit This unit’s front panel
Connecting to a Television, a Satellite Receiver and a VCR
Perform step , , on page 10.
75 Ω coaxial cable (included) from the
“RF OUT” on the satellite receiver to the
“RF IN” on the VCR.
75 Ω coaxial cable from the “RF OUT” on
the VCR to the “VHF/UHF RF IN” on the TV.
Audio/video cable from the “AV OUT” on
the VCR to the “ IN2 ” on the unit.
Perform step on page 10.
IN2
DV IN
S VIDEO VIDEO
L/MONO-AUDIO-R
RF OUT
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO
IN
step
3
Rear of VCR
Rear of Satellite Receiver
Rear of TVThis unit’s front panel
AUDIO OUT
L R
VIDEO
OUT
Yellow White Red
Yellow White Red
step
4
RF IN
RF OUT
step
2
•
Reference
