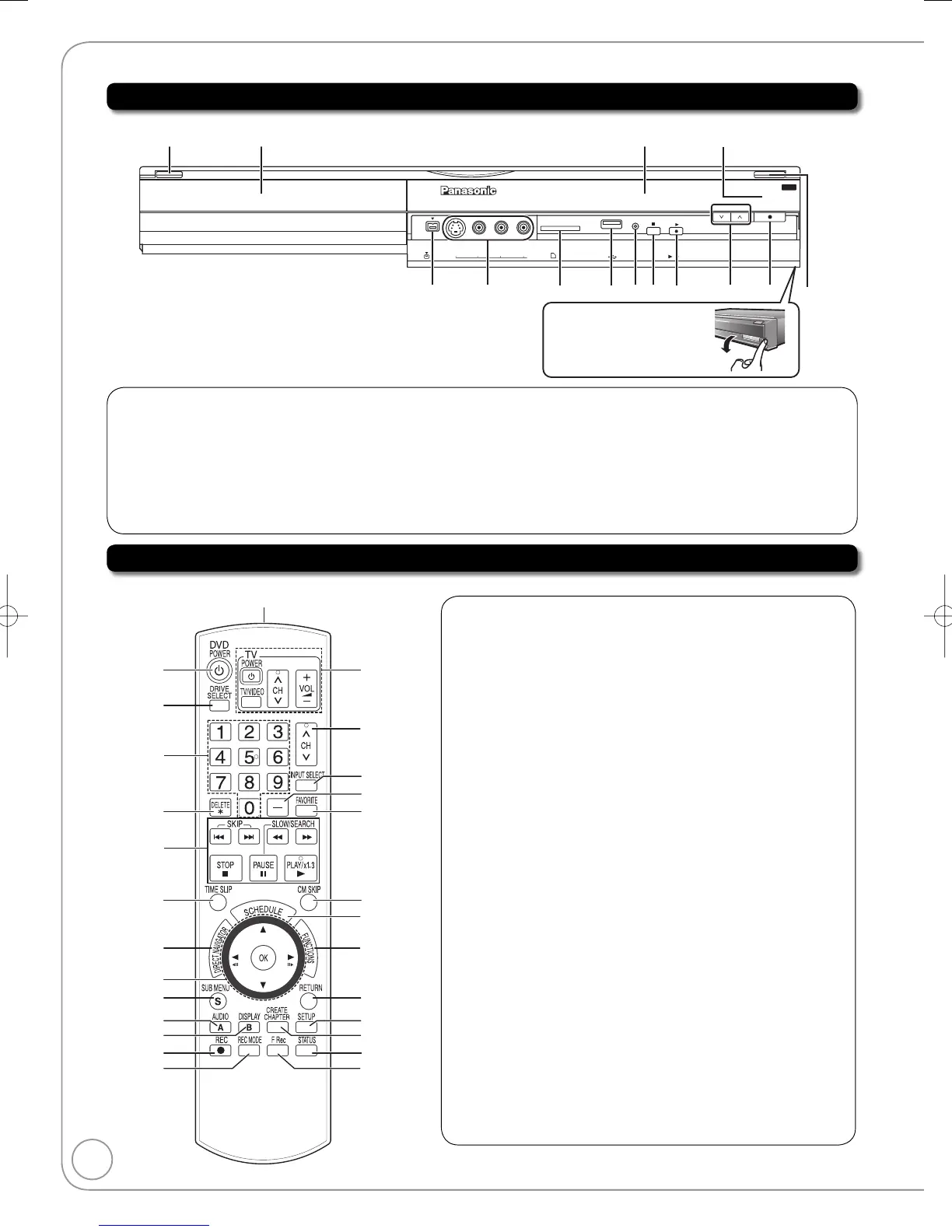

Main Unit
Opening the front panel
Pull down
USB
CH REC
/ 1.3 RESET SD CARD IN2
DV I N
S VIDEO VIDEO
L/MONO-AUDIO-R
2456789bk
The unit’s display
Remote control
signal sensor
1
Disc tray
3
bl
1
POWER on/off button (POWER
^
/I) ......... (➔ 12)
Press to switch the unit from on to standby mode or vice versa.
In the standby mode, the unit is still consuming a small amount
of power.
2
DV IN terminal
(for a digital video Camcorder) ................. (➔ 25)
3
IN2 input terminals (IN2) .......................... (➔ 24)
4
SD Card slot ............................................... (➔ 7)
•
5
USB port ..................................................... (➔ 7)
6
Reset button ............................................. (➔ 70)
7
Stop button ............................................... (➔ 16)
8
Play/x1.3 button ........................................ (➔ 16)
9
Channel Select button .............................. (➔ 15)
bk
Recording button ...................................... (➔ 17)
bl
Disc tray open/close button ........................ (➔ 7)
Remote Control
1
4
5
7
6
3
9
bp
bq
bt
ck
cl
cm
8
bo
br
bs
bk
bl
bm
bn
cp
cq
cn
co
cr
2
1
Turn the unit on or off .............................................. (➔ 12)
2
Select the drive (DVD, SD or USB) .........(➔ 19, 28 to 30)
3
Select channels and recording numbers etc./
Enter numbers ........................................................ (➔ 15)
4
Delete
5
Basic operations for recording and play
6
Skip the specified time ............................................ (➔ 27)
7
Direct Navigator ................................................ (➔ 26, 36)
8
Selection/OK, Frame-by-frame ......................... (➔ 12, 27)
9
Show sub menu ................................................ (➔ 26, 36)
bk
Select audio ...................................................... (➔ 22, 27)
[A] for Recordings screen ....................................... (➔ 19)
bl
Show on-screen menu ............................................ (➔ 42)
[B] for Album View screen....................................... (➔ 30)
bm
Start recording ........................................................ (➔ 17)
bn
Change recording mode ......................................... (➔ 17)
bo
Transmission window
bp
TV and Set Top Box operations .............................. (➔ 56)
bq
Channel select ........................................................ (➔ 15)
br
Input select (TV, IN1, IN2, DV) ................................ (➔ 24)
bs
Sub channel access for digital broadcasts ............. (➔ 15)
bt
Favorite ................................................................... (➔ 15)
ck
Skip 1 minute forward ............................................. (➔ 27)
cl
Show scheduled recording list ................................ (➔ 18)
cm
Show FUNCTIONS window ................................... (➔ 33)
cn
Return to previous screen
co
Show setup menu ................................................... (➔ 46)
cp
Create chapters ...................................................... (➔ 27)
cq
Show status messages..................................... (➔ 31, 32)
cr
Start Flexible Recording ......................................... (➔ 22)
