Panasonic DMR-EZ28K

9
Getting Started
RQT9046

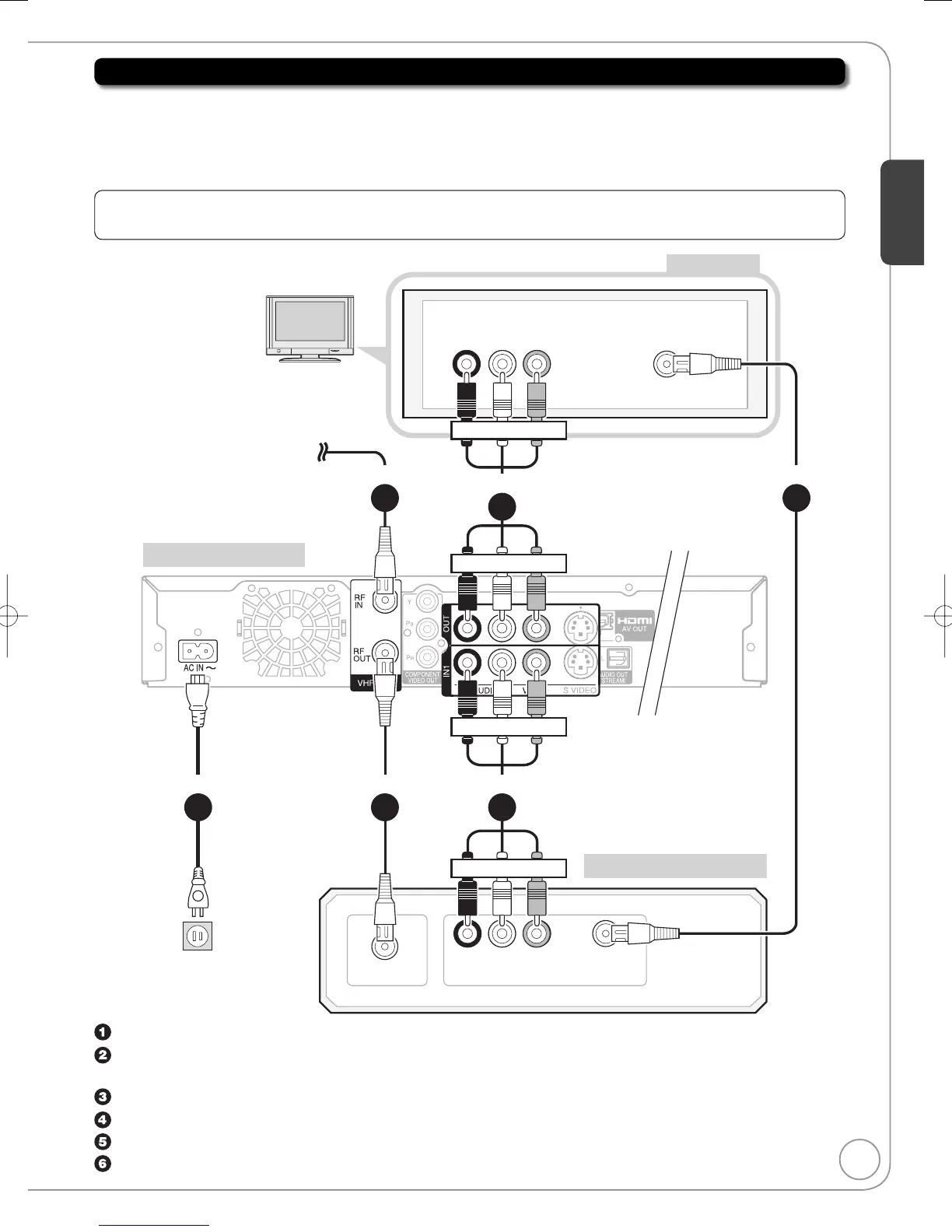

Connecting to a Television and a Cable Box
Please check with your Cable Service Provider to verify whether the coaxial cable from the Cable Wall Jack must be
connected to your Cable Box first, before connecting to other devices.
Consult your cable service provider about the appropriate cable box to use.
Additional coaxial cable and audio/video (AV) cable are required.
If your TV does not have AV IN terminals (➔ 61).
Note: The terminals on the rear of your TV and Cable Box may not appear as shown below.
Please read terminal labels carefully to ensure correct connections.
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO
IN
Rear of TV
AUDIO OUT
R L
VIDEO
OUT
RF IN
RF OUT
step
3
step
1
step
2
step
6
Red White Yellow
Red White Yellow
step
4
step
5
Red White Yellow
Red White Yellow
Rear of Cable Box
Rear of this unit
Cable from the wall
To a household AC outlet
(AC 120 V, 60 Hz)
75 Ω coaxial cable from the wall to the “RF IN” on the unit.
75 Ω coaxial cable (included) from the “RF OUT” on the cable box to the “VHF/UHF RF IN” on
the TV.
Audio/video cable (included) from the “OUT” on the unit to the “AV IN” on the TV.
75 Ω c oaxial cable from the “RF OUT” on the unit to the “RF IN” on the cable box.
Audio/video cable from the “AV OUT” on the cable box to the “IN1” on the unit.
AC power supply cord (included) from the “AC IN~” on the unit to a household AC outlet.
•
•
•
