Panasonic DMR-EZ47VP

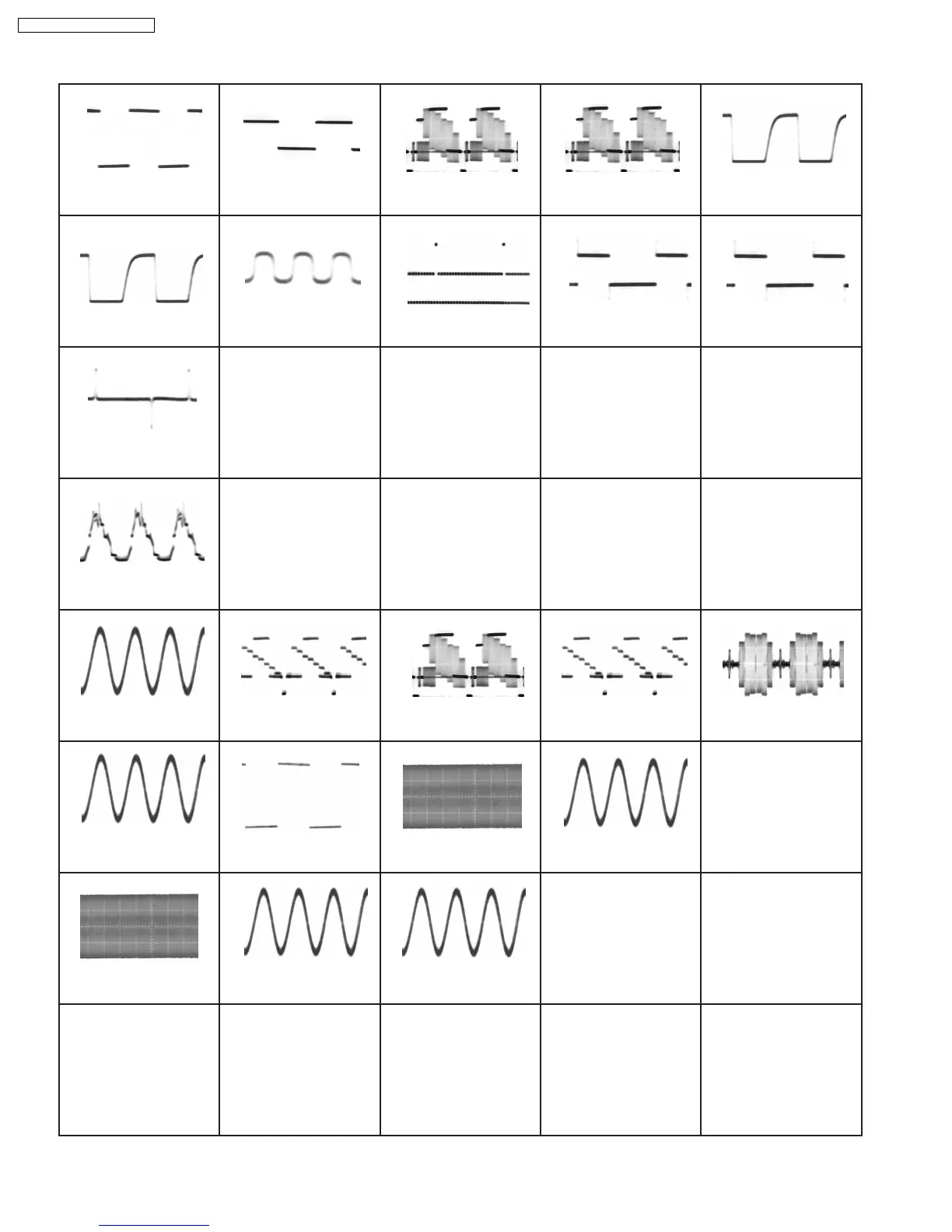

14.1.6. Waveform Chart
IC6001-18(TW2001) REC
5.0Vp-p (10msec.div.)
IC2501-22,23,25 PLAY
8.0Vp-p (2msec.div.)
IC6001-50 REC/PLAY
2.2Vp-p (20usec.div.)
IC6001-52 REC/PLAY
2.2Vp-p (20usec.div.)
IC6001-79 FF/REW
5.0Vp-p (1msec.div.)
IC6001-90 REC
5.0Vp-p (10msec.div.)
IC6001-94 REC
2.4Vp-p (10msec.div.)
IC3001-67 PLAY
0.5Vp-p (0.5usec.div.)
IC3001-98 REC
1.5Vp-p (1msec.div.)
IC3001-57 REC/PLAY
0.2Vp-p (20usec.div.)
IC3001-80 REC/PLAY
0.5Vp-p (10msec.div.)
IC4501-21(TW4501) REC
1.1Vp-p (20usec.div.)
IC3001-86 REC
1.4Vp-p (20usec.div.)
IC6001-80 FF/REW
5.0Vp-p (1msec.div.)
IC6001-95 REC
2.4Vp-p (10msec.div.)
IC3001-6 REC/PLAY
0.9Vp-p (2msec.div.)
IC3001-19 REC
1.0Vp-p (20usec.div.)
IC3001-29 REC/PLAY
2.4Vp-p (20usec.div.)
IC3001-36 PLAY
0.5Vp-p (20usec.div.)
IC4501-57 REC/PLAY
1.6Vp-p (0.5msec.div.)
IC4501-53 REC/PLAY
1.6Vp-p (0.5msec.div.)
IC6001-19 PLAY
5.0Vp-p (5msec.div.)
IC6001-86(TL2015) PLAY
0.7Vp-p (0.5msec.div.)
IC6001-97(TW2002) PLAY
4.4Vp-p (5msec.div.)
102
DMR-EZ47VP / DMR-EZ475VP
