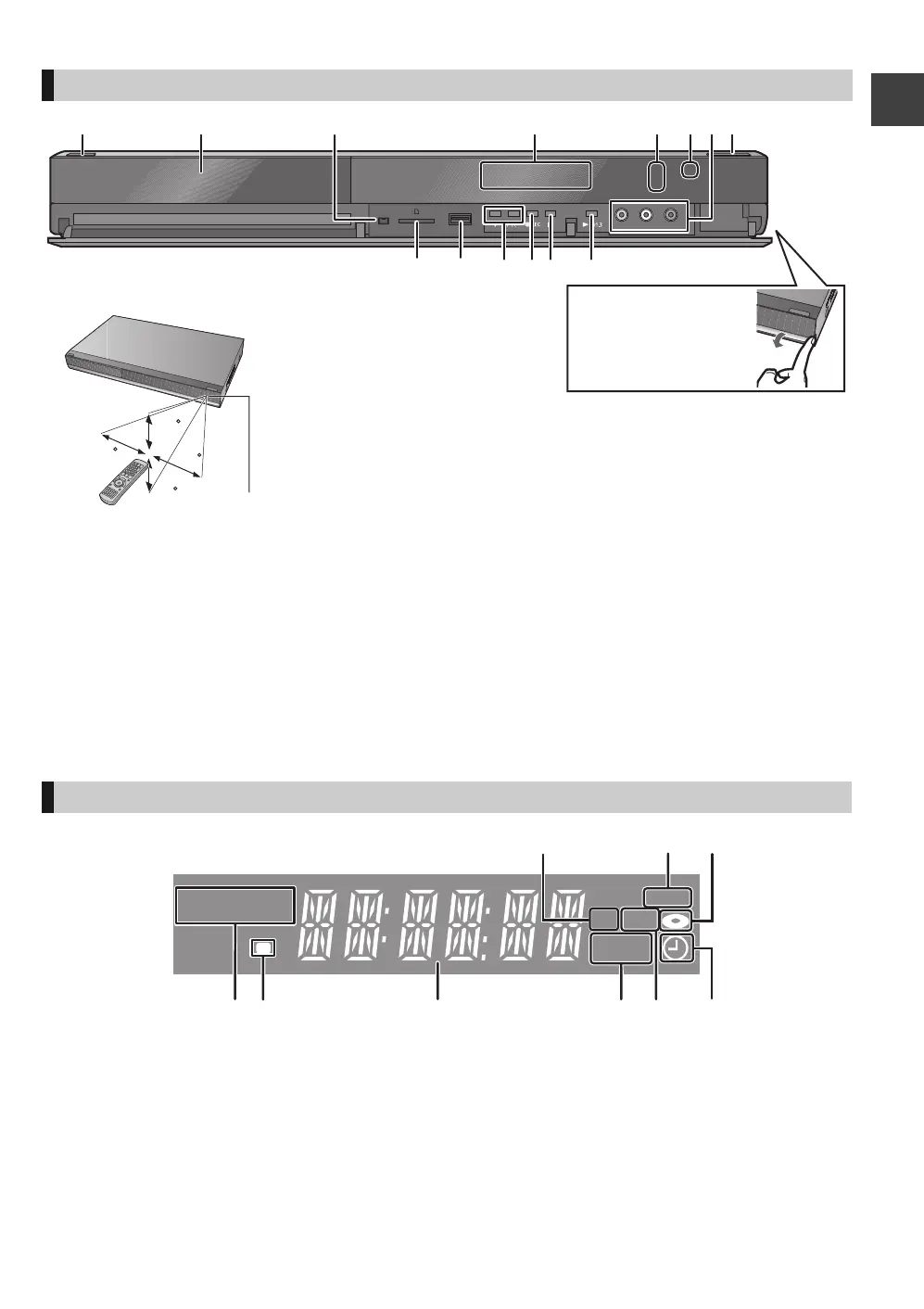

1 Standby/on switch (Í/I) (> 16, 18)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a
small amount of power.
2 Disc tray (> 16)
3 Connection for digital video (DV) camcorder (> 60)
4 Display (> below)
5 Recording indicator
6 Remote control signal sensor (> above)
7 Connection for VCR, Panasonic’s video camera, etc.
(> 60)
8 Open/close disc tray (> 16)
9 SD card slot (> 16)
: USB port (> 16)
; Channel select
< Start recording/One Touch Recording (> 26)
= Stop
> Start play
Rear panel terminals (> 12, 13, 14, 15)
1 SD card slot indicator
2 Copying indicator
3 Disc indicator
4 Drive (HDD, DVD or SD) indicator
5 Remote control signal indicator
6 Main display section indicator
Current time/playback counter, various messages
7 Playback indicator
8 USB port indicator
9 Timer recording indicator
This indicator lights up when the timer recording standby
is activated.
Main unit
30
30
20
20
Pull to flip down the front
panel.
Distance: Within approx. 7 m in front of the unit
∫ Remote Control signal sensor
The unit’s display
PLAY
COPY
SD USB
HDDSDVD
