Connection
≥Before connection, turn off all equipment and read the appropriate operating instructions.
When connected to an HDMI compatible unit, you can enjoy high quality, digital video and audio.
≥The HDMI connection supports VIERA Link “HDAVI Control” (> 64) when used with a compatible Panasonic TV.
Required setting:
Set “HDMI Video Mode” and “HDMI Audio Output” to “On” (> 80, 81).
(The default setting is “On”.)
About HDMI
≥Video sources converted to 1920k1080 resolution, while of high quality, will exhibit somewhat lower subjective image
resolution than true, native 1080p full-HD sources. See dealer for details.
≥Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover).
≥When outputting 1080p signal, please use HDMI Cables 5.0 meters or less.
≥Recommended Panasonic’s HDMI cable part number:
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.
≥ You cannot connect this unit to DVI devices that are incompatible with HDCP.
Depending on the unit that are compatible with HDCP, images may not display properly or at all when connecting with a DVI/HDMI switching cable.
(Audio cannot be output.)
≥ If you are connecting to a TV that is only compatible with 2 channel audio output, audio with 3 channels or more will be down mixed (> 106) and output
as 2 channels, even if connecting with an HDMI cable. (Some discs cannot be down mixed.)

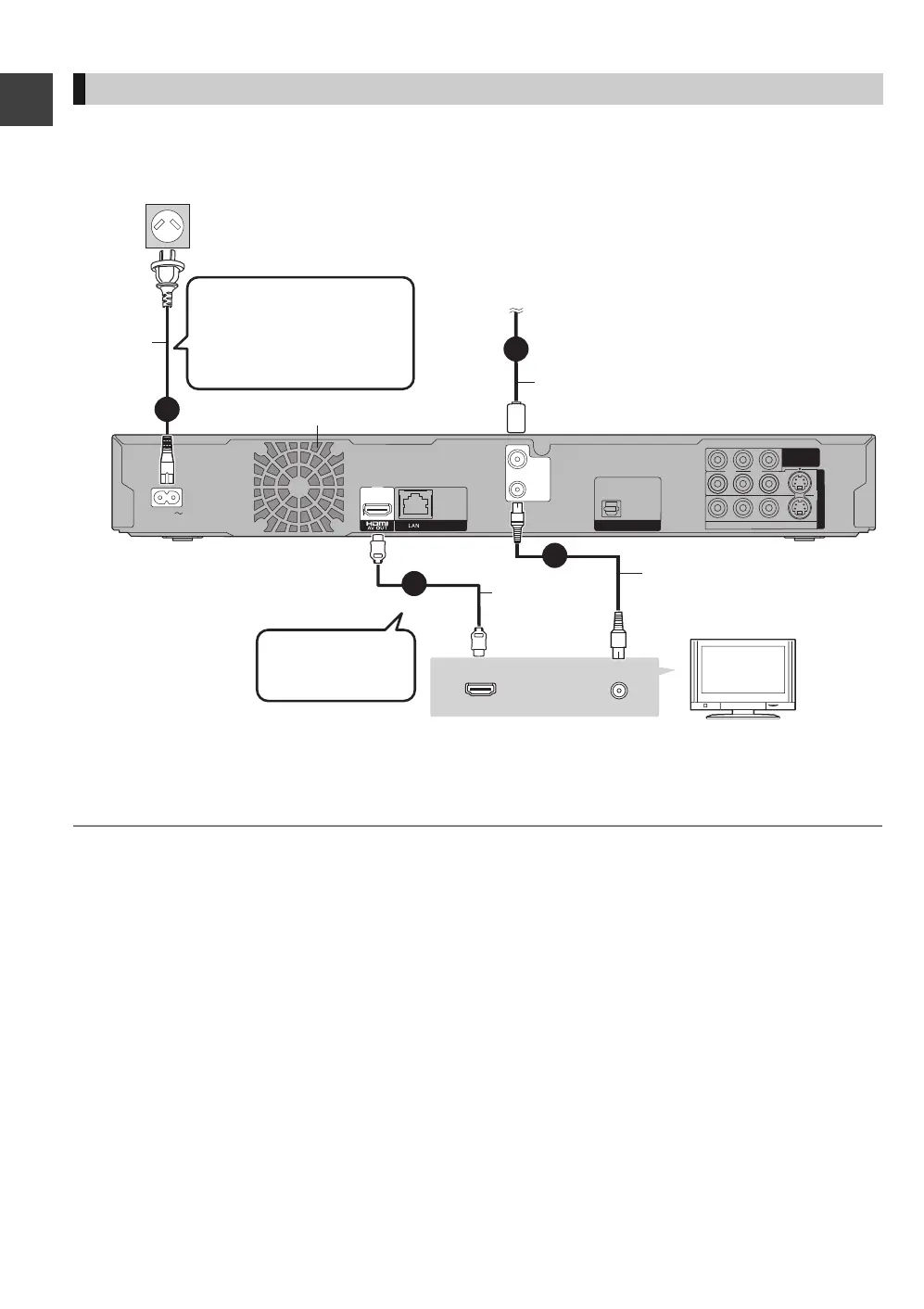

Recommended connections
COMPONENT
VIDEO OUT
OUTAV1 IN
Y
R
P
B
P
OPTICAL
R-AUDIO- L
VIDEO S VIDEO
10BASE-T/
100BASE-TX
AC IN
RF IN
RF OUT
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
VHF/UHF
RF IN
HDMI IN
4
1
2
3
To the aerial
Television’s rear panel
Aerial cable
RF coaxial cable
(included)
This unit’s rear panel
To household mains socket
(AC 220 to 240 V, 50 Hz)
Cooling fan
AC mains
lead
(included)
HDMI cable
(> below)
Other television
connections (> 14)
Connect only after all other
connections are complete.
