Panasonic DMR-XW480

Getting started
VQT2J62
15

≥ When this unit is connected to a television with an HDMI cable, set
“HDMI Audio Output” to “Off” in the Setup menu (> 81). In this case
audio is only output from the amplifier not the television.
≥ When you use the optical digital audio cable, insert the tip correctly into
the terminal.

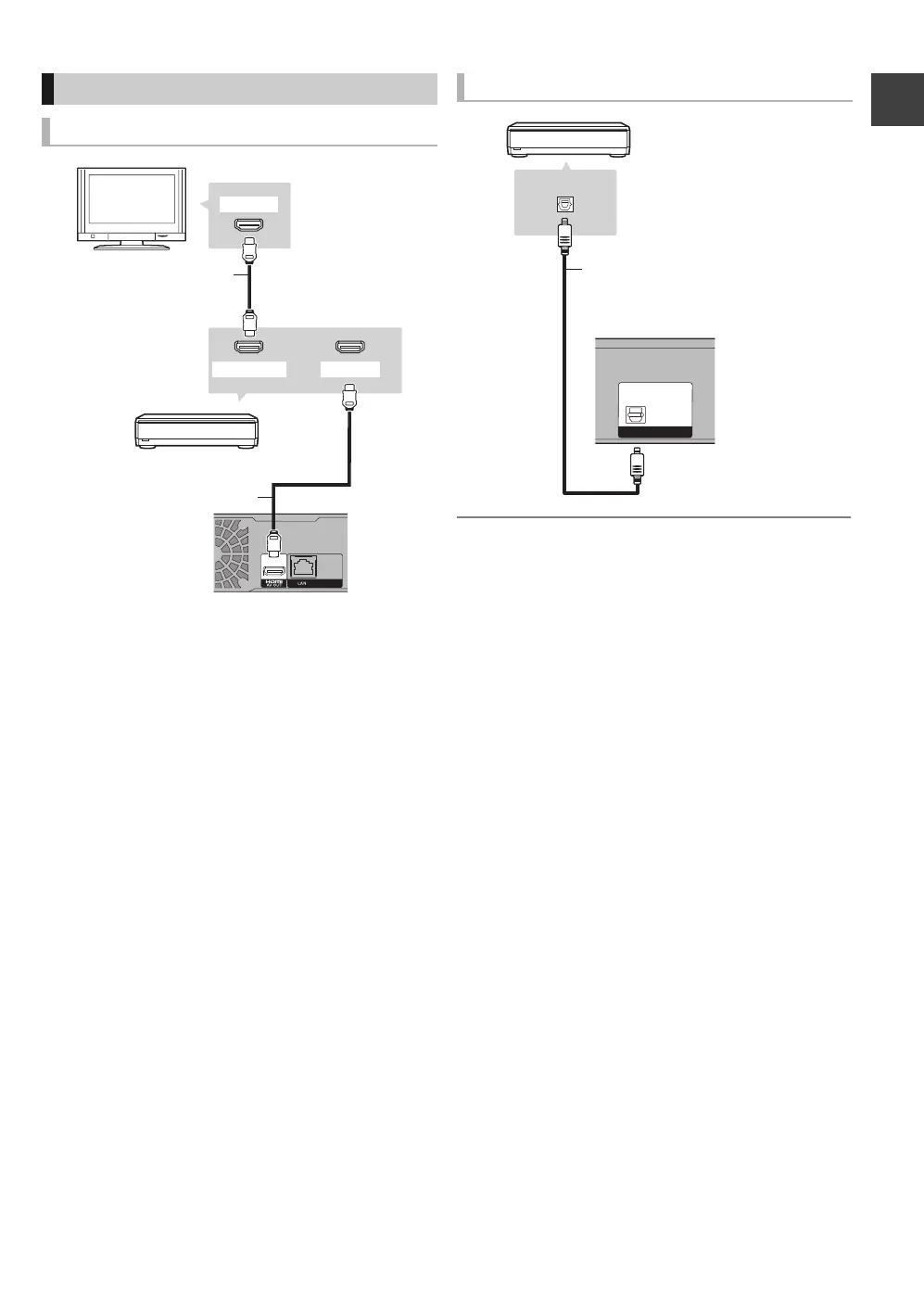

Amplifier connections
HDMI AV OUT terminal
10BASE-T/
100BASE-TX
HDMI IN
HDMI IN
HDMI OUT
This unit’s rear panel
HDMI cable
Amplifier’s rear
panel
Television’s rear
panel
HDMI cable
DIGITAL AUDIO OUT terminal
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
OPTICAL IN
This unit’s rear
panel
Amplifier’s rear panel
Optical digital audio
cable
