Panasonic HDC-SD600 - Watching Video and Pictures on TV; Connecting the Unit to a TV

87
VQT2V00
Advanced
With a TV
1
Watching Video/Pictures
on your TV
≥ Use the supplied AV multi cable. Check the output settings when connecting the
component terminal or the video terminal with the AV multi cable. (l 90)
≥ Use of the following Panasonic HDMI mini cables is recommended to connect the unit to
the HDMI terminal.
≥ HDMI is the interface for digital devices. If you connect this unit to a HDMI compatible high
definition TV and then play back the recorded high definition images, you can enjoy them
in high resolution with high quality sound.

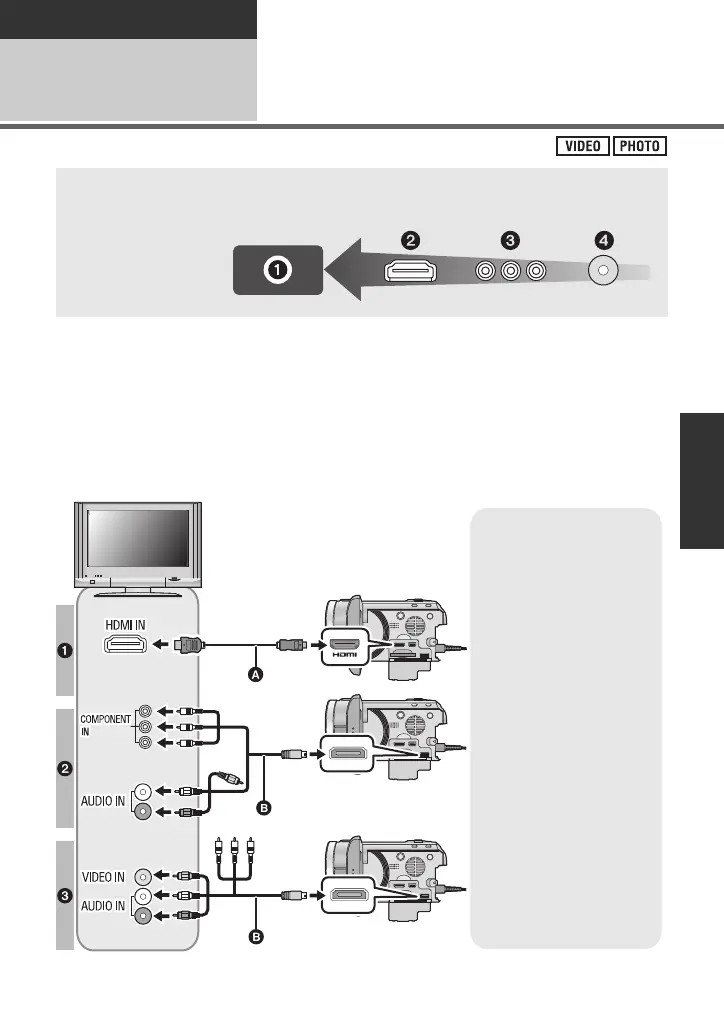

1 Connect this unit to a TV.
Confirm the terminals on your TV and use a cable compatible with the terminals.
Image quality may vary with the connected terminals.
1 High quality
2 HDMI terminal
3 Component
terminal
4 Video terminal
A HDMI mini cable
(optional)
≥ Be sure to connect to the
HDMI terminal.
B AV multi cable
(supplied)
Picture quality
1 High definition images
when connecting to
HDMI terminal
2 High definition images
when connecting to
component terminal
compatible with 1080i
Standard images
when connecting to
component terminal
compatible with 576i
3 Standard images
when connecting to
video terminal
