Preparation
Before using
1
Parts identification and
handling

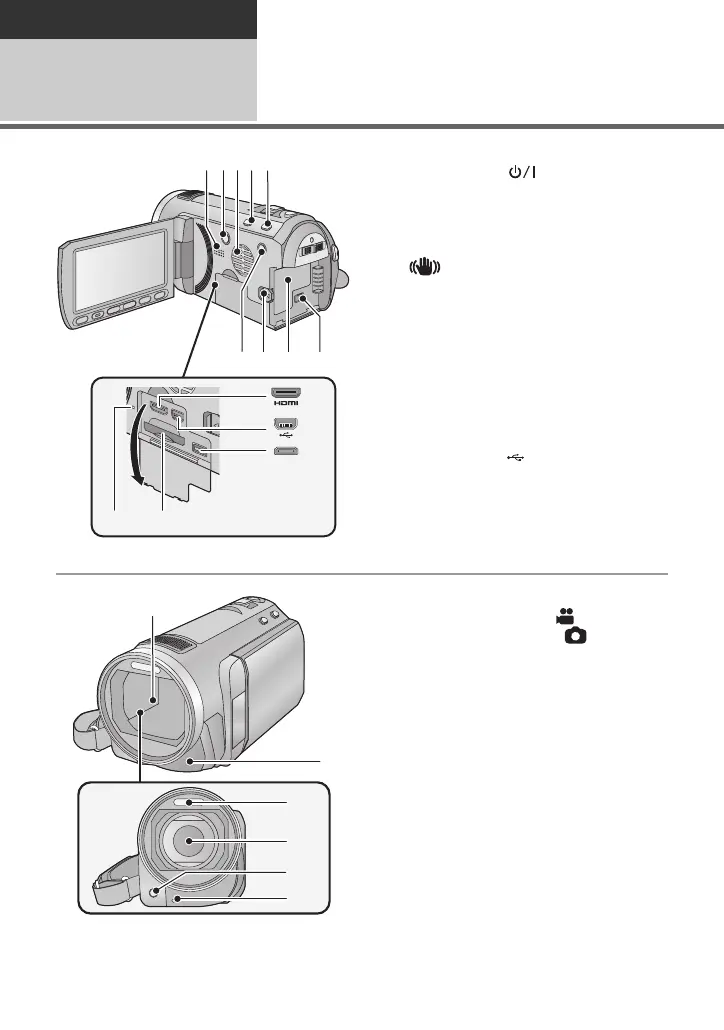

1 Speaker
2 Power button [ ] (l 17)
3 Inlet (cooling fan) (l 21)
4 Intelligent auto/Manual button
[iA/MANUAL] (l 26, 69)
5 Optical image stabilizer button
[ /O.I.S.] (l 43)
6 1080/50p button [1080/50p] (l 45)
7 Battery release lever [BATT] (l 12)
8 Battery holder (l 12)
9 DC input terminal [DC IN] (l 14)
≥ Always use the supplied AC adaptor or a
genuine Panasonic AC adaptor
(VW-AD21E-K; optional).
10 HDMI mini connector [HDMI]
(l 87, 91)
11 USB terminal [ ] (l 94, 109)
12 AV multi connector (l 87, 100)
≥ Use the AV multi cable (only the supplied
cable).
13 Card slot (l 16)
14 Access lamp [ACCESS] (l 16)
15 Lens cover
≥ The lens cover opens in motion
picture recording mode or still picture
recording mode. (l 18)
16 Remote control sensor (l 41)
17 Built-in flash (l 49)
18 Lens (LEICA DICOMAR)
≥ Please refer to page 21 for details about
attaching the lens hood.
19 AF assist lamp (l 68)
20 Recording lamp (l 36)
