7.11.9. Detecting New Drum Units
Purpose
To investigate the actual number of printed papers with the drum units
(Investigating how the returned sets´ drum units were used)
Method

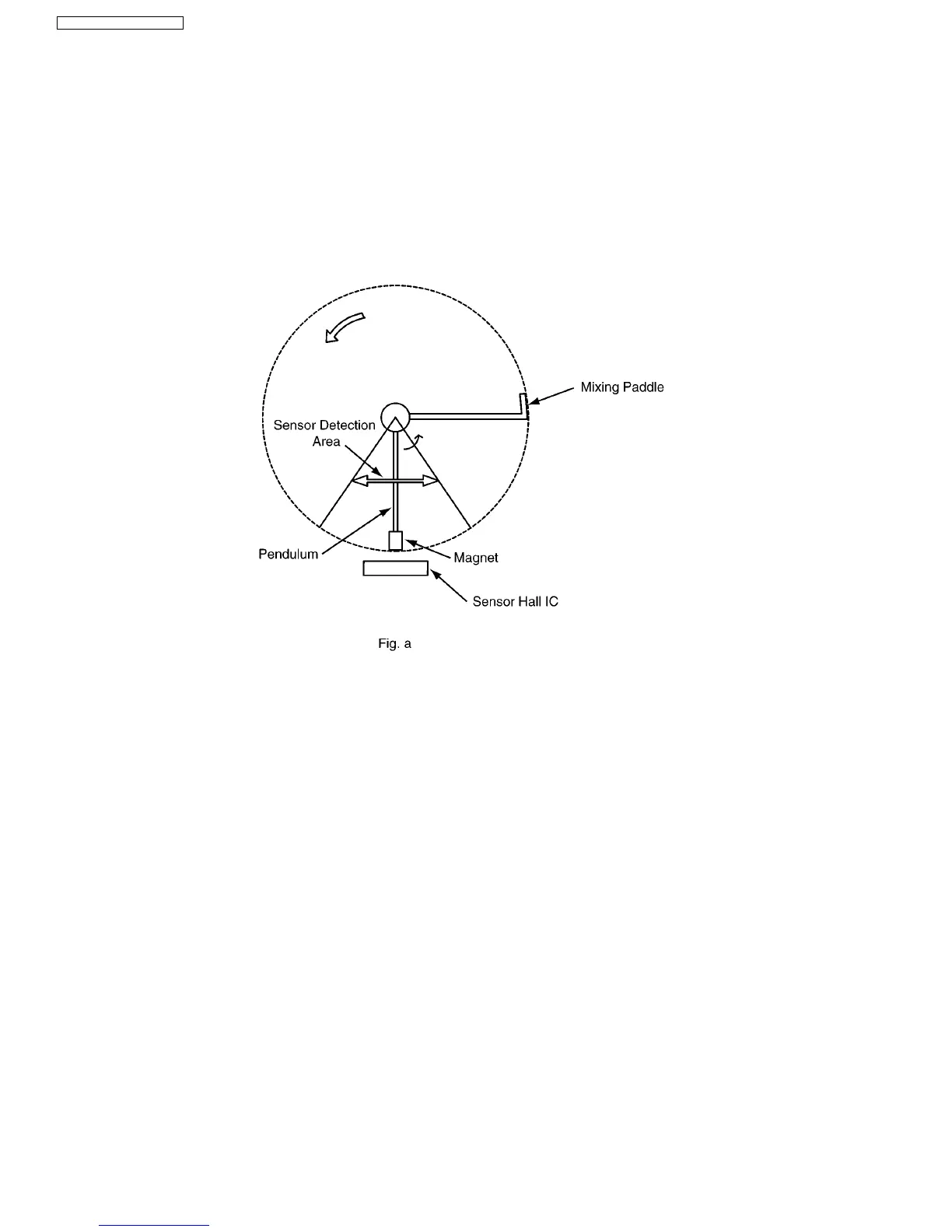

Whether the drum unit is new or old should be judged by detecting the turn delay of Mixing Paddle (Toner detection sensor).
•
• •
• When shipping the drum unit, the mixing paddle gear is set to the position that has the space of more than one turn (max.
600).
•
• •
• After the main motor starts, when the toner detection signal is not varied within the fixed time (max. 4.5 sec), the drum unit
is found new.
180
KX-FL612CX / KX-FL612CX-S
