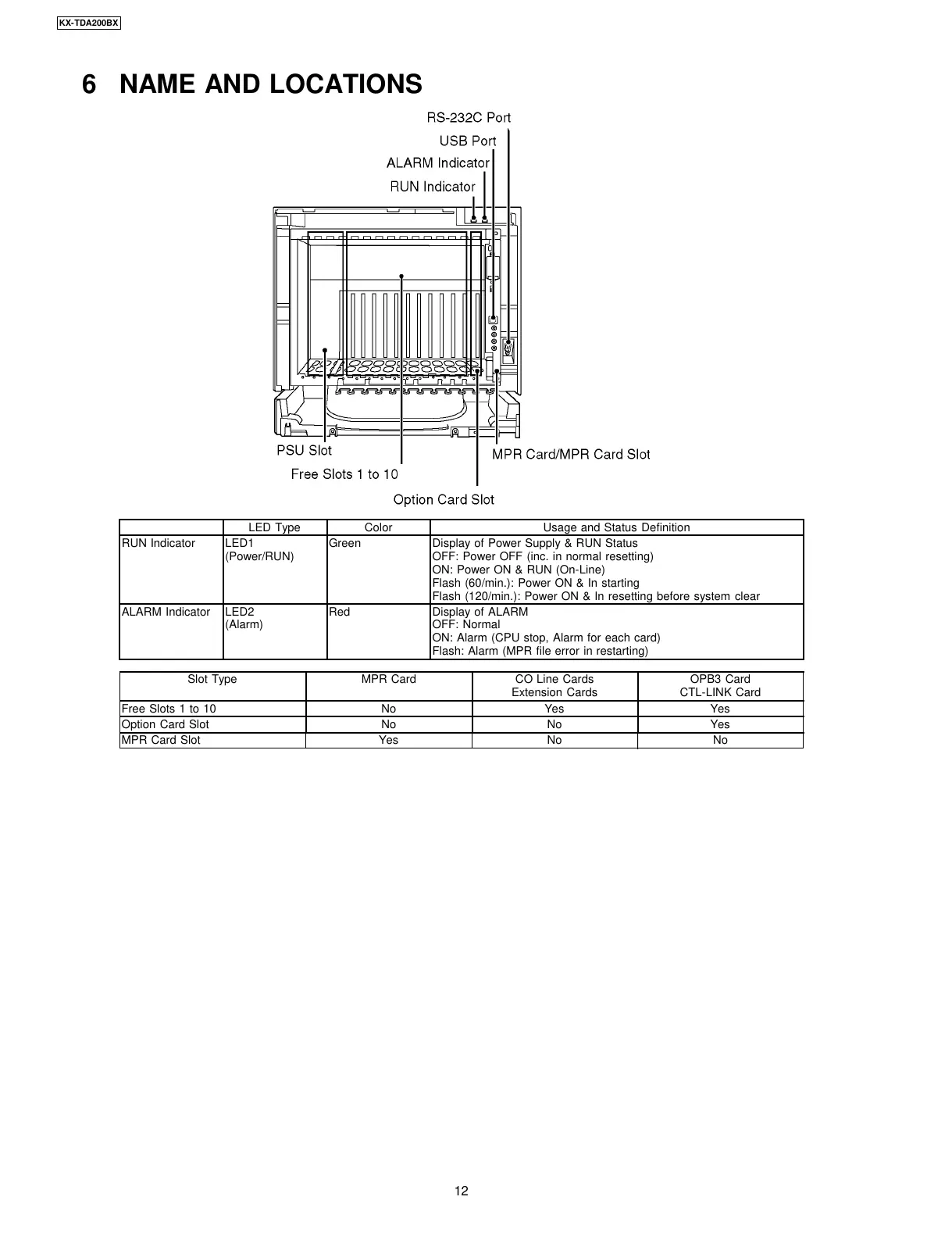

6 NAME AND LOCATIONS
LED Type Color Usage and Status Definition
RUN Indicator LED1
(Power/RUN)
Green Display of Power Supply & RUN Status
OFF: Power OFF (inc. in normal resetting)
ON: Power ON & RUN (On-Line)
Flash (60/min.): Power ON & In starting
Flash (120/min.): Power ON & In resetting before system clear
ALARM Indicator LED2
(Alarm)
Red Display of ALARM
OFF: Normal
ON: Alarm (CPU stop, Alarm for each card)
Flash: Alarm (MPR file error in restarting)
Slot Type MPR Card CO Line Cards
Extension Cards
OPB3 Card
CTL-LINK Card
Free Slots 1 to 10 No Yes Yes
Option Card Slot No No Yes
MPR Card Slot Yes No No
