Note:
1. RTL (Retention Time Limited)
The marking (RTL) indicates that the Retention Time is
limited for this item.
After the discontinuation of this assembly in production, the
item will continue to be available for a specific period of
time. The retention period of availability depends on the
type of assembly and the laws governing parts and product
retention. At the end of this period, the assembly will no
longer be available.
2. Important safety notice
Components identified by the
mark indicates special
characteristics important for safety. When replacing any of
these components, only use specified manufacture´s parts.
3. The S mark means the part is one of some identical parts.
For that reason, it may be different from the installed part.
4. ISO code (Example : ABS-94HB) of the remarks column
shows quality of the material and a flame resisting grade
about plastics.
5. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF), p=µ(µF)
*Type & Wattage of Resistor
18.1. CABINET AND ELECTRICAL
PARTS
Ref.
No.
Part No. Part Name & Description Remarks
1 PSKV1015Z1 COVER, TOP PC+ABS-
5V
2 PSKV1017Z1 COVER, LEFT SIDE ABS-HB
3 PSMD1035Z FRAME, SIDE
4 PSMD1036Y FRAME, BASE
5 PSMH1200Z FRAME, BACK BOARD
6 PSMD1037Z COVER, BACK
7 PSMH1264Z COVER, HOLD
8 PSHR1235Z GUIDE RAIL PC+ABS-
5V
Ref.
No.
Part No. Part Name & Description Remarks
9 PSMH1205Z CHASSIS, LED
10 PSHD1091Z BOLT WITH NUT
11 PSKV1016Z1 COVER, RIGHT SIDE ABS-HB
12 PSYCTDA200AL COVER, FRONT PC+ABS-
5V
13 PSMD1036Y FRAME, LOWER
14 PSMH1198Z FRAME
15 PSMH1222Z ANGLE, RS-232C
16 PSMH1206Y ANGLE
17 PSMH1207Z ANGLE
18 PSKK1035Z1 LID PC+ABS-
5V
19 PSKR1001Z1 GUIDE, CABLE PC+ABS-
5V
20 PSKL1013Z1 STAND
21 PSHA1008Z LEG ABS-HB
22 PQHR10379Z CLAMPER
23 PSGB1001Z BADGE PS-HB
24 PSQT1431Z LABEL, WARNING
25 PSYETDA200BX NAME PLATE
26 PSQT1949Z LABEL, CAUTION
27 PSJS03P16Z CONNECTOR, LED
28 PSJS09P12Z CONNECTOR, RS-232C
29 PQHD10011V SCREW
30 PSUS1022Z SPRING
31 XUC3VW RETAINING RING
32 PSMD1038Z FRAME, BASE
33 PSMH1201Z ANGLE
18.2. ACCESSORIES AND PACKING
MATERIALS
Ref.
No.
Part No. Part Name & Description Remarks
A1 PSJA1007Z POWER CORD (AC CORD)
A2 PQJP1E1Z PLUG
A3 XYN4+J18FZ SCREW
A4 PQHE17Z MOUNTING BRACKET
A5 XTB5+20AFY SCREW
A6 PSZETDA100BX ACCESSORY PARTS,SD CARD
A7 PSLB5D1 INSULATOR
A8 PSMD1039Z MOUNTING BRACKET
A9 PSQX2227YCD CD-ROM, INSTALLATION MANUAL
(FOR USER)
A10 PSQW2011Y LEAFLET, SAFETY INFORMATI
A11 PSQX2849ZCD CD-ROM (FOR USER DEALER)
A12 PSJA1081Z POWER CORD (AC CORD)
P1 PSZKTDA200BX PACKING CASE
P2 PSPD1157Z CUSHION
P3 PSPD1158Z CUSHION
P4 PSPN1125Y ACCESSORY BOX
P5 PSPD1180Z CUSHION
P6 PSPD1152Z CUSHION
P7 PSPD1151Y CUSHION
P8 PSPD1181Z CUSHION
P9 XZB05X08A03 PROTECTION COVER (FOR SCREW)
P10 XZB10X15A04 PROTECTION COVER
P11 XZB18X27A04 PROTECTION COVER (FOR CD-ROM)
P12 PSPP1070Z PROTECTION COVER (FOR SD
CARD)
P13 PQPP143Z PROTECTION COVER (FOR SET)
P14 PSPP1069Z PROTECTION COVER
P15 XZB50X30A06 PROTECTION COVER (FOR
MOUNTING BRACKET)

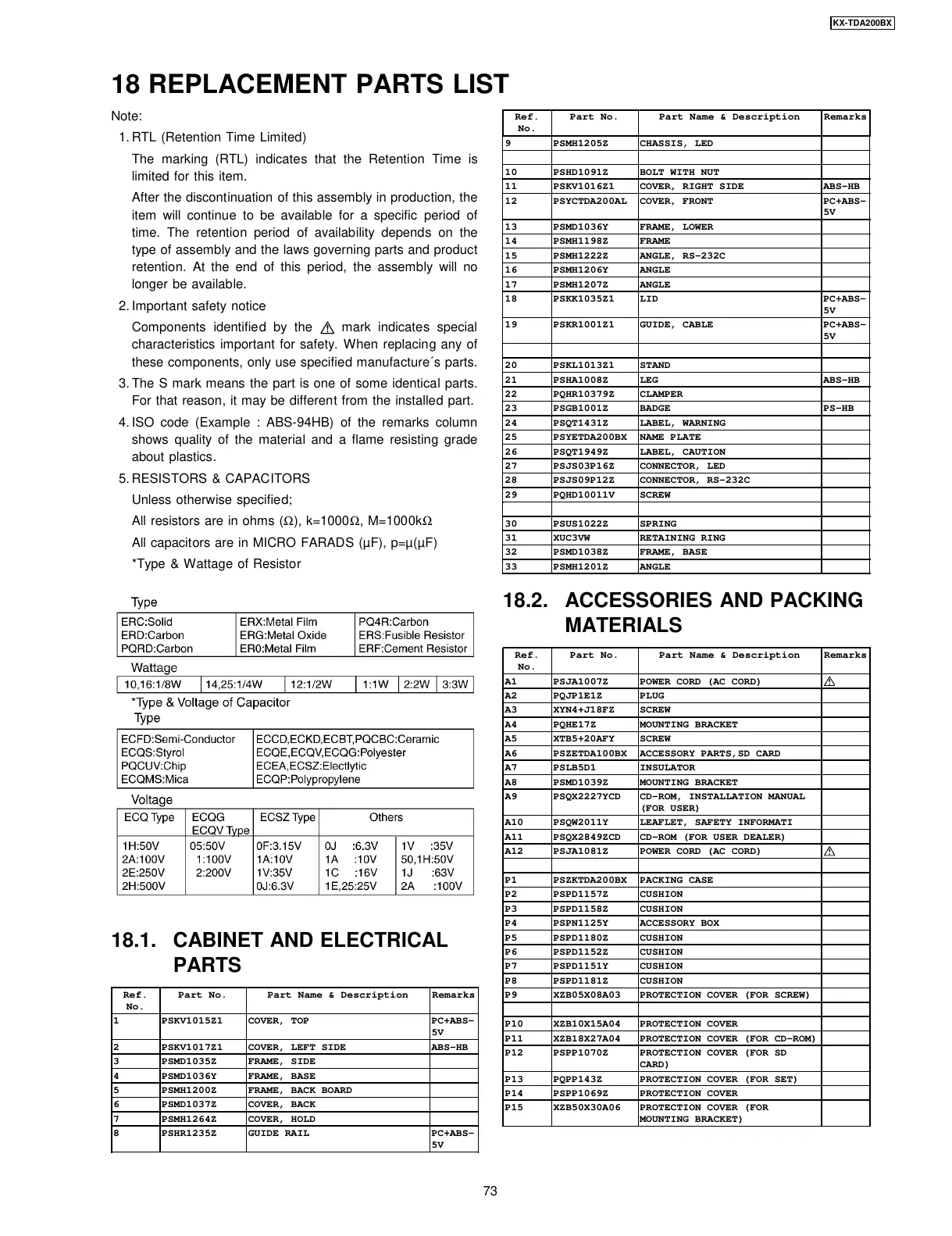

18 REPLACEMENT PARTS LIST
73
KX-TDA200BX
