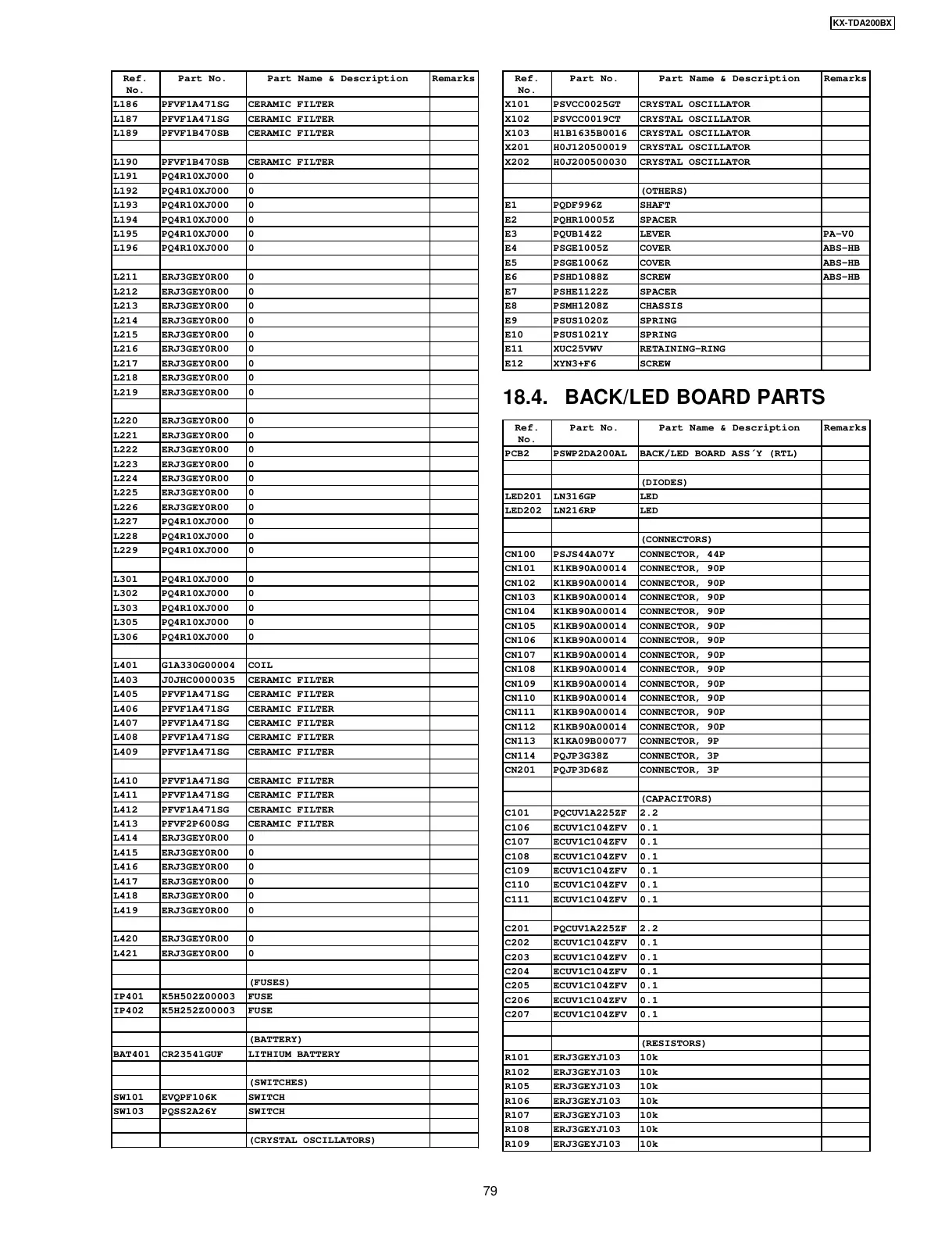

Panasonic KX-TDA200BX - Back;Led Board Parts

Ref.
No.
Part No. Part Name & Description Remarks
L186 PFVF1A471SG CERAMIC FILTER
L187 PFVF1A471SG CERAMIC FILTER
L189 PFVF1B470SB CERAMIC FILTER
L190 PFVF1B470SB CERAMIC FILTER
L191 PQ4R10XJ000 0
L192 PQ4R10XJ000 0
L193 PQ4R10XJ000 0
L194 PQ4R10XJ000 0
L195 PQ4R10XJ000 0
L196 PQ4R10XJ000 0
L211 ERJ3GEY0R00 0
L212 ERJ3GEY0R00 0
L213 ERJ3GEY0R00 0
L214 ERJ3GEY0R00 0
L215 ERJ3GEY0R00 0
L216 ERJ3GEY0R00 0
L217 ERJ3GEY0R00 0
L218 ERJ3GEY0R00 0
L219 ERJ3GEY0R00 0
L220 ERJ3GEY0R00 0
L221 ERJ3GEY0R00 0
L222 ERJ3GEY0R00 0
L223 ERJ3GEY0R00 0
L224 ERJ3GEY0R00 0
L225 ERJ3GEY0R00 0
L226 ERJ3GEY0R00 0
L227 PQ4R10XJ000 0
L228 PQ4R10XJ000 0
L229 PQ4R10XJ000 0
L301 PQ4R10XJ000 0
L302 PQ4R10XJ000 0
L303 PQ4R10XJ000 0
L305 PQ4R10XJ000 0
L306 PQ4R10XJ000 0
L401 G1A330G00004 COIL
L403 J0JHC0000035 CERAMIC FILTER
L405 PFVF1A471SG CERAMIC FILTER
L406 PFVF1A471SG CERAMIC FILTER
L407 PFVF1A471SG CERAMIC FILTER
L408 PFVF1A471SG CERAMIC FILTER
L409 PFVF1A471SG CERAMIC FILTER
L410 PFVF1A471SG CERAMIC FILTER
L411 PFVF1A471SG CERAMIC FILTER
L412 PFVF1A471SG CERAMIC FILTER
L413 PFVF2P600SG CERAMIC FILTER
L414 ERJ3GEY0R00 0
L415 ERJ3GEY0R00 0
L416 ERJ3GEY0R00 0
L417 ERJ3GEY0R00 0
L418 ERJ3GEY0R00 0
L419 ERJ3GEY0R00 0
L420 ERJ3GEY0R00 0
L421 ERJ3GEY0R00 0
(FUSES)
IP401 K5H502Z00003 FUSE
IP402 K5H252Z00003 FUSE
(BATTERY)
BAT401 CR23541GUF LITHIUM BATTERY
(SWITCHES)
SW101 EVQPF106K SWITCH
SW103 PQSS2A26Y SWITCH
(CRYSTAL OSCILLATORS)
Ref.
No.
Part No. Part Name & Description Remarks
X101 PSVCC0025GT CRYSTAL OSCILLATOR
X102 PSVCC0019CT CRYSTAL OSCILLATOR
X103 H1B1635B0016 CRYSTAL OSCILLATOR
X201 H0J120500019 CRYSTAL OSCILLATOR
X202 H0J200500030 CRYSTAL OSCILLATOR
(OTHERS)
E1 PQDF996Z SHAFT
E2 PQHR10005Z SPACER
E3 PQUB14Z2 LEVER PA-V0
E4 PSGE1005Z COVER ABS-HB
E5 PSGE1006Z COVER ABS-HB
E6 PSHD1088Z SCREW ABS-HB
E7 PSHE1122Z SPACER
E8 PSMH1208Z CHASSIS
E9 PSUS1020Z SPRING
E10 PSUS1021Y SPRING
E11 XUC25VWV RETAINING-RING
E12 XYN3+F6 SCREW
18.4. BACK/LED BOARD PARTS
Ref.
No.
Part No. Part Name & Description Remarks
PCB2 PSWP2DA200AL BACK/LED BOARD ASS´Y (RTL)
(DIODES)
LED201 LN316GP LED
LED202 LN216RP LED
(CONNECTORS)
CN100 PSJS44A07Y CONNECTOR, 44P
CN101 K1KB90A00014 CONNECTOR, 90P
CN102 K1KB90A00014 CONNECTOR, 90P
CN103 K1KB90A00014 CONNECTOR, 90P
CN104 K1KB90A00014 CONNECTOR, 90P
CN105 K1KB90A00014 CONNECTOR, 90P
CN106 K1KB90A00014 CONNECTOR, 90P
CN107 K1KB90A00014 CONNECTOR, 90P
CN108 K1KB90A00014 CONNECTOR, 90P
CN109 K1KB90A00014 CONNECTOR, 90P
CN110 K1KB90A00014 CONNECTOR, 90P
CN111 K1KB90A00014 CONNECTOR, 90P
CN112 K1KB90A00014 CONNECTOR, 90P
CN113 K1KA09B00077 CONNECTOR, 9P
CN114 PQJP3G38Z CONNECTOR, 3P
CN201 PQJP3D68Z CONNECTOR, 3P
(CAPACITORS)
C101 PQCUV1A225ZF 2.2
C106 ECUV1C104ZFV 0.1
C107 ECUV1C104ZFV 0.1
C108 ECUV1C104ZFV 0.1
C109 ECUV1C104ZFV 0.1
C110 ECUV1C104ZFV 0.1
C111 ECUV1C104ZFV 0.1
C201 PQCUV1A225ZF 2.2
C202 ECUV1C104ZFV 0.1
C203 ECUV1C104ZFV 0.1
C204 ECUV1C104ZFV 0.1
C205 ECUV1C104ZFV 0.1
C206 ECUV1C104ZFV 0.1
C207 ECUV1C104ZFV 0.1
(RESISTORS)
R101 ERJ3GEYJ103 10k
R102 ERJ3GEYJ103 10k
R105 ERJ3GEYJ103 10k
R106 ERJ3GEYJ103 10k
R107 ERJ3GEYJ103 10k
R108 ERJ3GEYJ103 10k
R109 ERJ3GEYJ103 10k
79
KX-TDA200BX
