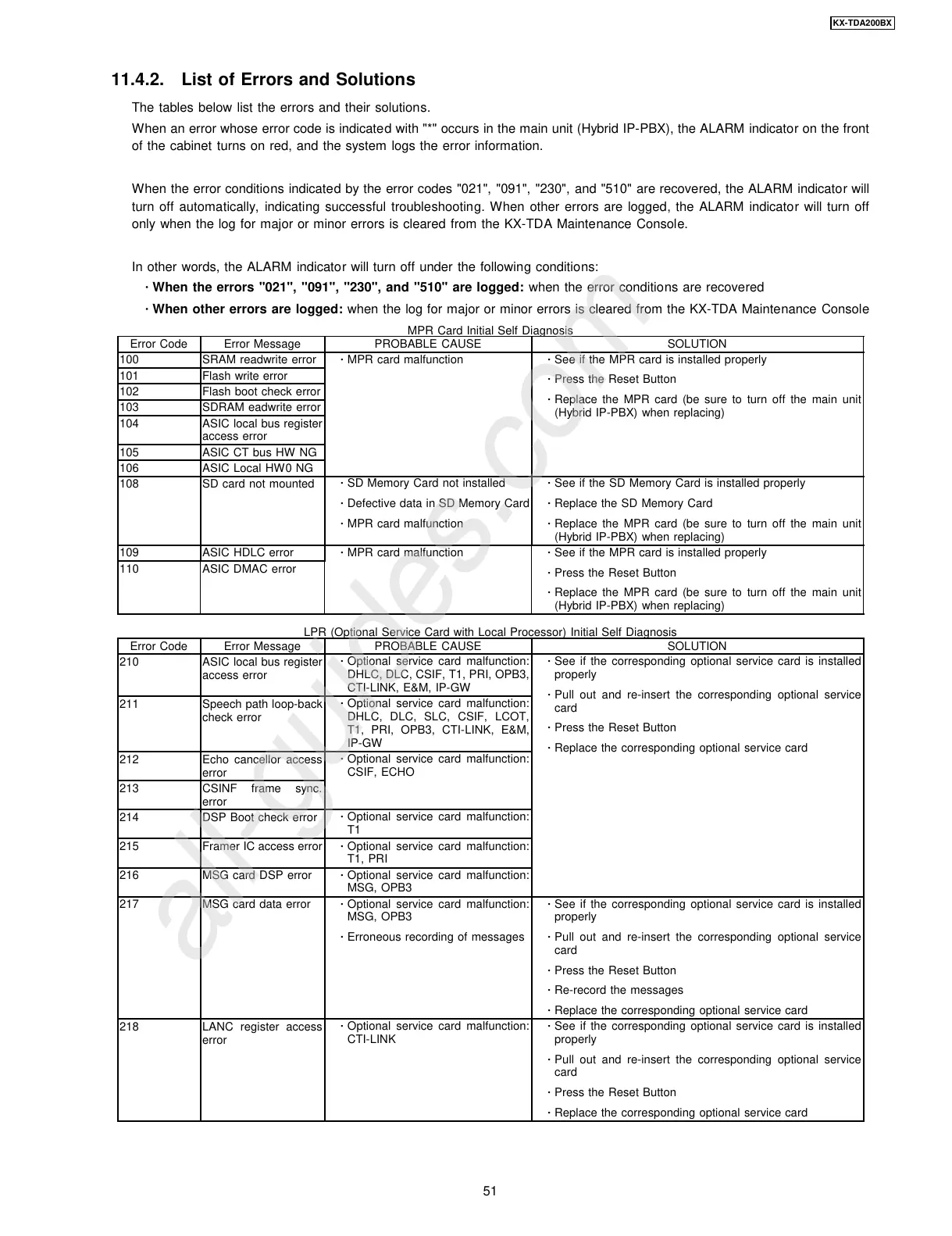

11.4.2. List of Errors and Solutions
The tables below list the errors and their solutions.
When an error whose error code is indicated with "*" occurs in the main unit (Hybrid IP-PBX), the ALARM indicator on the front
of the cabinet turns on red, and the system logs the error information.
When the error conditions indicated by the error codes "021", "091", "230", and "510" are recovered, the ALARM indicator will
turn off automatically, indicating successful troubleshooting. When other errors are logged, the ALARM indicator will turn off
only when the log for major or minor errors is cleared from the KX-TDA Maintenance Console.
In other words, the ALARM indicator will turn off under the following conditions:
· When the errors "021", "091", "230", and "510" are logged: when the error conditions are recovered
· When other errors are logged: when the log for major or minor errors is cleared from the KX-TDA Maintenance Console
MPR Card Initial Self Diagnosis
Error Code Error Message PROBABLE CAUSE SOLUTION
100 SRAM readwrite error
· MPR card malfunction · See if the MPR card is installed properly
· Press the Reset Button
· Replace the MPR card (be sure to turn off the main unit
(Hybrid IP-PBX) when replacing)
101 Flash write error
102 Flash boot check error
103 SDRAM eadwrite error
104 ASIC local bus register
access error
105 ASIC CT bus HW NG
106 ASIC Local HW0 NG
108 SD card not mounted
· SD Memory Card not installed
· Defective data in SD Memory Card
· MPR card malfunction
· See if the SD Memory Card is installed properly
· Replace the SD Memory Card
· Replace the MPR card (be sure to turn off the main unit
(Hybrid IP-PBX) when replacing)
109 ASIC HDLC error
· MPR card malfunction · See if the MPR card is installed properly
· Press the Reset Button
· Replace the MPR card (be sure to turn off the main unit
(Hybrid IP-PBX) when replacing)
110 ASIC DMAC error
LPR (Optional Service Card with Local Processor) Initial Self Diagnosis
Error Code Error Message PROBABLE CAUSE SOLUTION
210 ASIC local bus register
access error
· Optional service card malfunction:
DHLC, DLC, CSIF, T1, PRI, OPB3,
CTI-LINK, E&M, IP-GW
· See if the corresponding optional service card is installed
properly
· Pull out and re-insert the corresponding optional service
card
· Press the Reset Button
· Replace the corresponding optional service card
211 Speech path loop-back
check error
· Optional service card malfunction:
DHLC, DLC, SLC, CSIF, LCOT,
T1, PRI, OPB3, CTI-LINK, E&M,
IP-GW
212 Echo cancellor access
error
· Optional service card malfunction:
CSIF, ECHO
213 CSINF frame sync.
error
214 DSP Boot check error
· Optional service card malfunction:
T1
215 Framer IC access error
· Optional service card malfunction:
T1, PRI
216 MSG card DSP error
· Optional service card malfunction:
MSG, OPB3
217 MSG card data error
· Optional service card malfunction:
MSG, OPB3
· Erroneous recording of messages
· See if the corresponding optional service card is installed
properly
· Pull out and re-insert the corresponding optional service
card
· Press the Reset Button
· Re-record the messages
· Replace the corresponding optional service card
218 LANC register access
error
· Optional service card malfunction:
CTI-LINK
· See if the corresponding optional service card is installed
properly
· Pull out and re-insert the corresponding optional service
card
· Press the Reset Button
· Replace the corresponding optional service card
