11.4. The Setting Method of JIG (Handset)
11.4.1. Preparation
11.4.1.1. Equipment Required
• Frequency counter: It must be precise enough to measure intervals of 1 Hz (precision; ±4 ppm).
Hewlett Packard, 53131A is recommended.
• DC power: it must be able to output at least 1 A current under 2.4 V for Handset.
• Digital multi-meter (DMM): it must be able to measure voltage and current.
• Oscilloscope
11.4.1.2. JIG and PC
•Serial JIG
JIG Cable: PQZZ1CD300E
• PC which runs in DOS mode.
• Batch file CD-ROM for setting: PQZZTG1032M
11.4.2. PC Setting

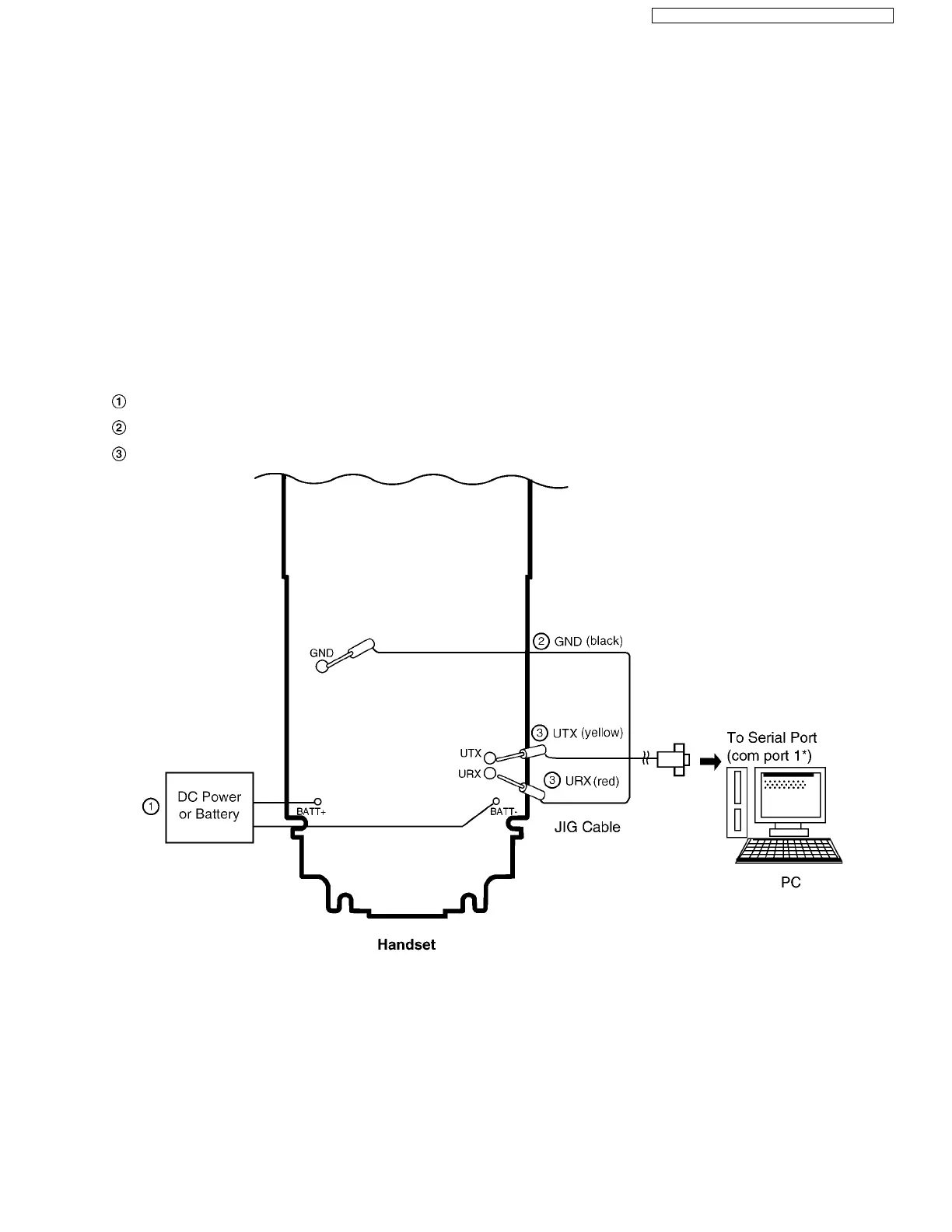

11.4.2.1. Connections
Connect the DC Power or Battery to BATT+ and BATT- (Handset).
Connect the JIG cable GND (black).
Connect the JIG cable UTX (yellow) and URX (red).
Note:
*: Com port names may vary depending on what your PC calls it.
