Panasonic KX-TG1033S

88
KX-TG1032S/KX-TG1033S/KX-TG1034S/KX-TGA101S

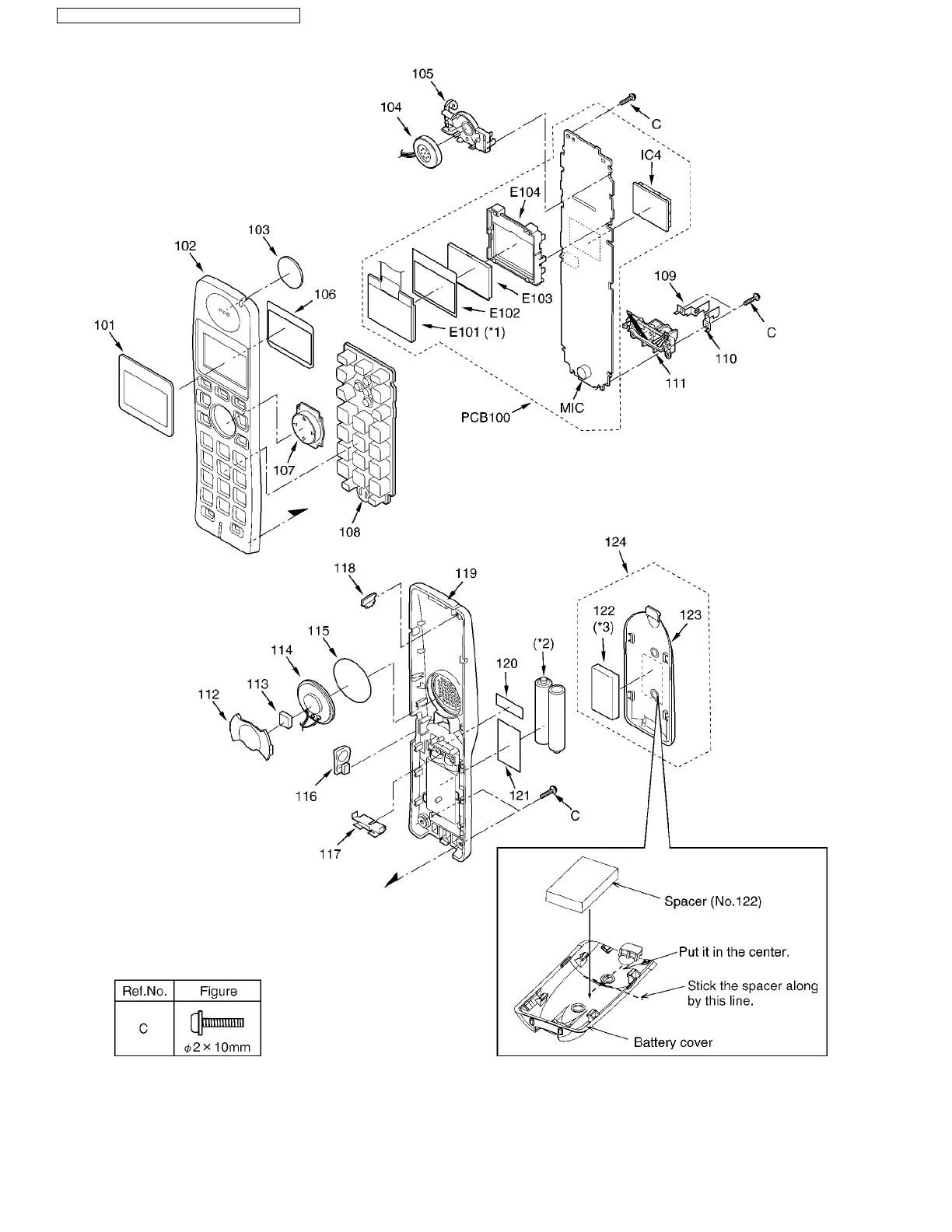

15.2. Cabinet and Electric Parts (Handset)
Note:
(*1) This cable is fixed by welding. Refer to How to Replace the Handset LCD (P.55).
(*2) The rechargeable Ni-MH battery HHR-4DPA (Capacity: up to 550 mAh) is available through sales route of Panasonic.
(*3) Attach the spacer (No. 122) to the exact location described above.
