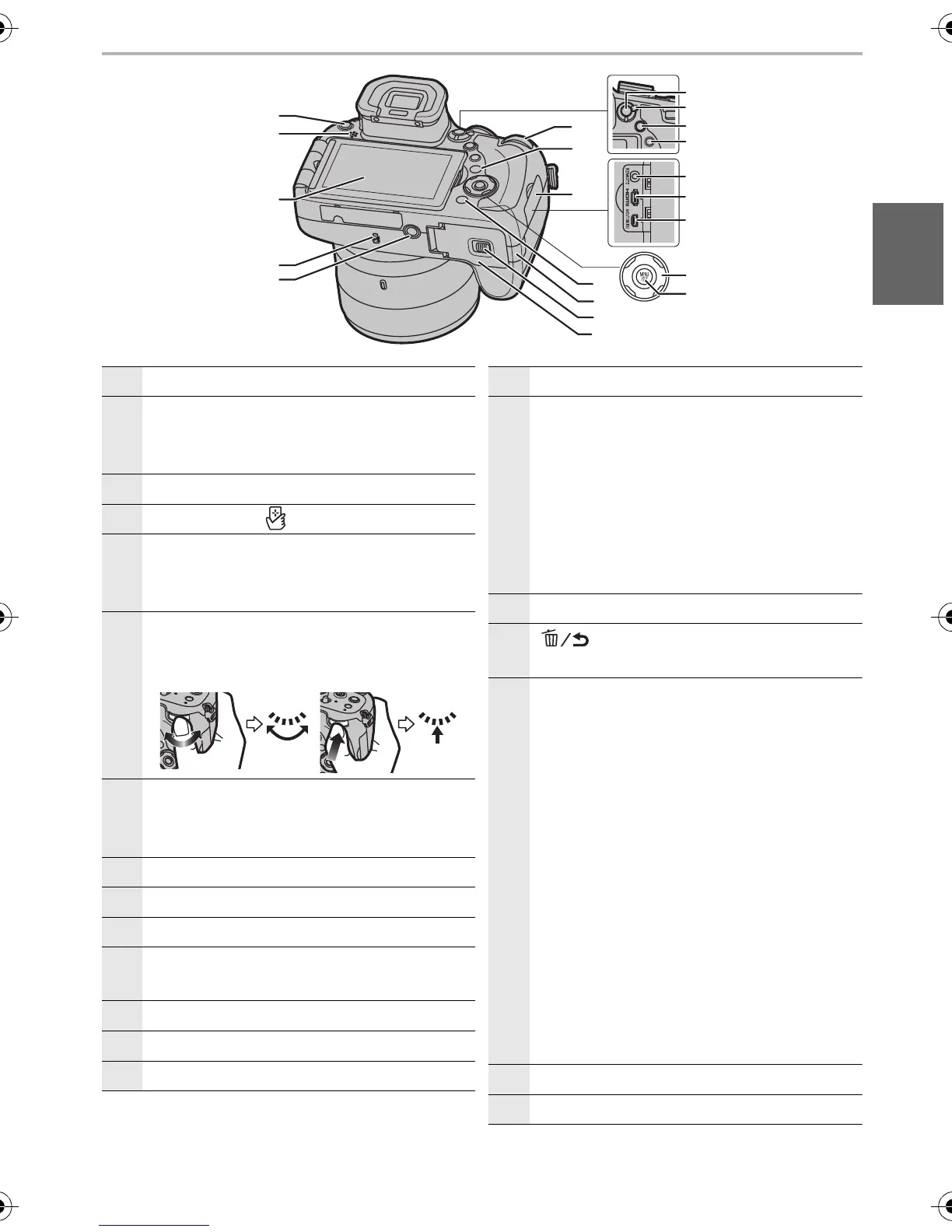

27 [LVF] button (P14)/[Fn5] button
28
Speaker
•
Be careful not to cover the speaker with your
finger. Doing so may make sound difficult to hear.
29 Monitor (P13)
30 NFC antenna [ ] (P57)
31
Tripod mount
•
A tripod with a screw length of 5.5 mm or more
may damage this unit if attached.
32
Rear dial
• These Operating instructions describe
operations of the rear dial as follows:
33
[DISP.] button (P22)
• Each time this is pressed, the display
on the monitor is switched.
34 Terminal cover
35 [AF/AE LOCK] button (P41)
36 Focus mode lever (P38, 39)
37
[Q.MENU] button (P18)/
[Fn3] button
38 [(] (Playback) button (P23)
39 [REMOTE] socket
40 [HDMI] socket (P63)
41 [AV OUT/DIGITAL] socket (P63, 66)
42
Cursor buttons
• These Operating instructions express
the up, down, left, and right of the
cursor button as 3/4/2/1.
3/ISO button (P42)
1/WB (White Balance) (P35)
2/AF Mode button (P38)
4/AF # button (P41)
43 [MENU/SET] button (P17)
44
[ ] (Delete/Cancel) button (P25)/
[Fn4] button
45
DC coupler cover
• When using an AC adaptor, ensure that
the Panasonic DC coupler (DMW-
DCC8: optional) and AC adaptor
(DMW-AC10G: optional) are used.
• Always use a genuine Panasonic AC
adaptor (DMW-AC10G: optional).
• When using an AC adaptor, use the AC
cable supplied with the AC adaptor.
• It is recommended to use a fully
charged battery or AC adaptor when
recording motion pictures.
• If while recording motion pictures using
the AC adaptor and the power supply is
cut off due to a power outage or if the
AC adaptor is disconnected etc., the
motion picture will not be recorded.
46 Release lever (P15)
47 Card/Battery door (P15)
