13. Connecting to other equipment
302
2
Turn on the TV and select the input to match the connector in use.
3
Turn the camera on and then press [(].
• Input of the TV will switch automatically and playback screen is displayed when
connected to a VIERA Link compatible TV using an HDMI micro cable with the [VIERA
Link] (P53) set to [ON]. (P304)
• Depending on the [Aspect Ratio], black bands may be displayed on the top and bottom or the
left and right of the pictures.
• Change the screen mode on your TV if the picture is displayed with the top or bottom cut off.
• Output from the HDMI micro cable has priority when both AV cable (optional) and HDMI micro
cable are connected.
• The connection with the USB connection cable (supplied) will take priority when you connect
the USB connection cable (supplied) simultaneously with the HDMI micro cable.
• When you play back a picture vertically, it may be blurry.
• Proper playback will be dependent on the TV used for viewing.
• No sound is output from the camera speakers.
• Read the operating instructions for the TV.
To connect with an AV cable (optional)
•
Always use a genuine Panasonic AV cable (DMW-AVC1: optional).
• Check the [TV Aspect]. (P52)
• Audio will be played back in monaural.
• The viewfinder cannot be displayed when connected with a AV cable.

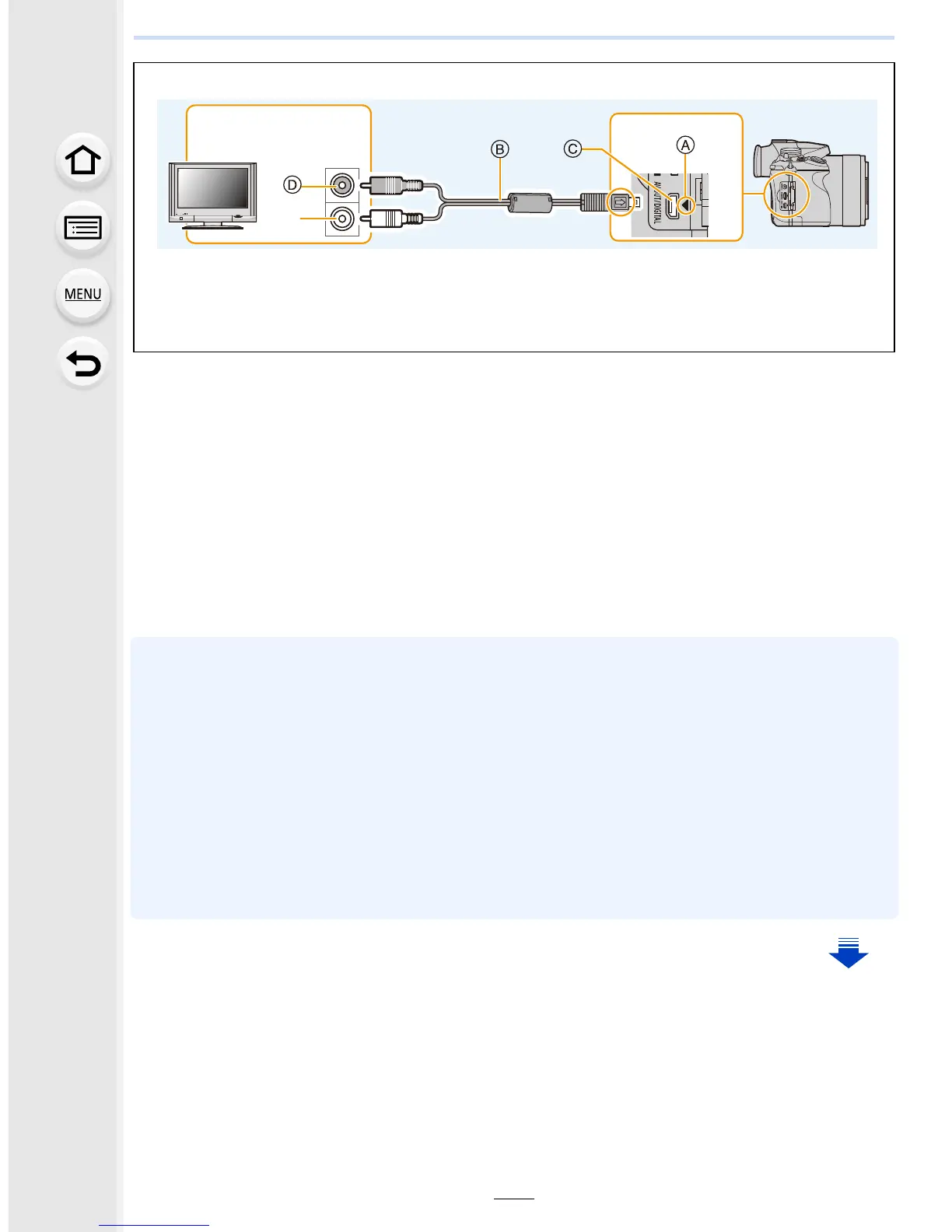

A Align the marks, and insert.
B AV cable (optional)
C [AV OUT/DIGITAL] terminal
• The color of the terminal is gold.
D Yellow: to the video input socket
E White: to the audio input socket
