2.1.4 FLAT CARD CABLE INSTALLATION
TOP PREVIOUS NEXT
When installing the Flat Card Cable on the connector, install the Flat Card Cable with the cable contacts
facing the connector contacts.

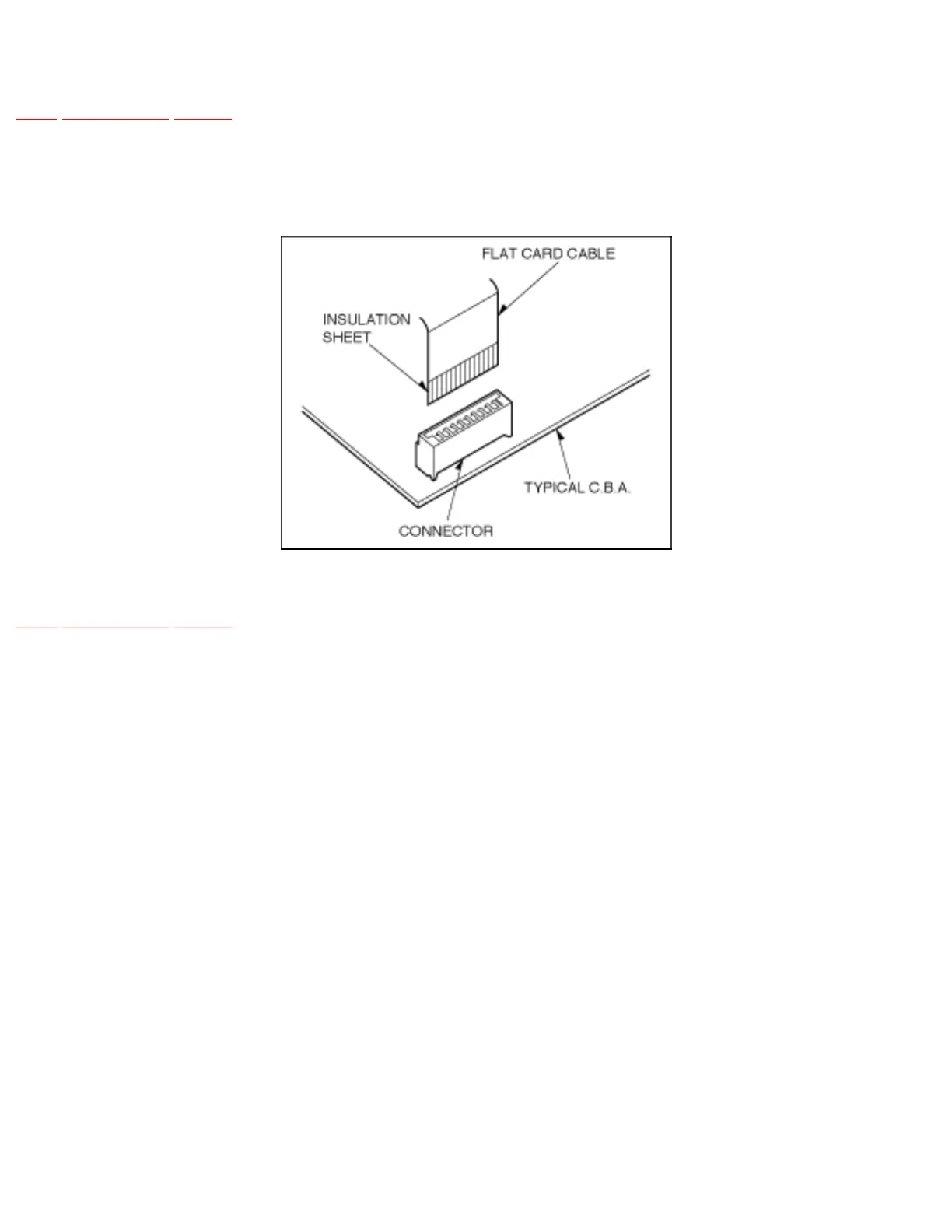

Fig. S11
•@
