4.1.1 DISASSEMBLY FLOW CHART
TOP PREVIOUS NEXT
This flow chart indicates disassembly steps of the cabinet parts and the circuit boards in order to find the
necessary items for servicing.
When reassembling, perform the steps in the reverse order.

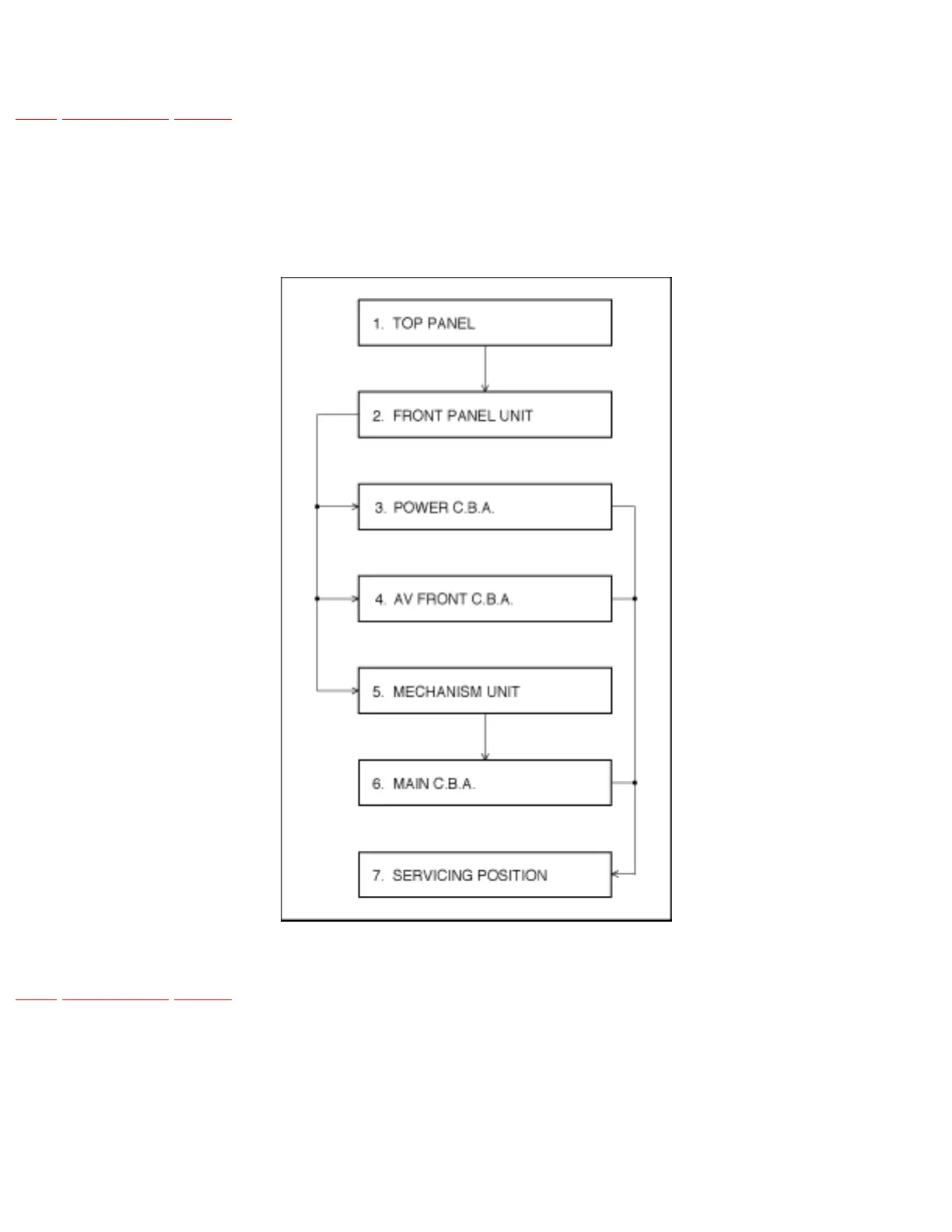

Fig. D1
•@
