2.1.2 CHECKING OF MAIN C.B.A.
TOP PREVIOUS NEXT
When servicing the MAIN C.B.A., take out the MAIN C.B.A. and mechanism from the frame and turn
over.

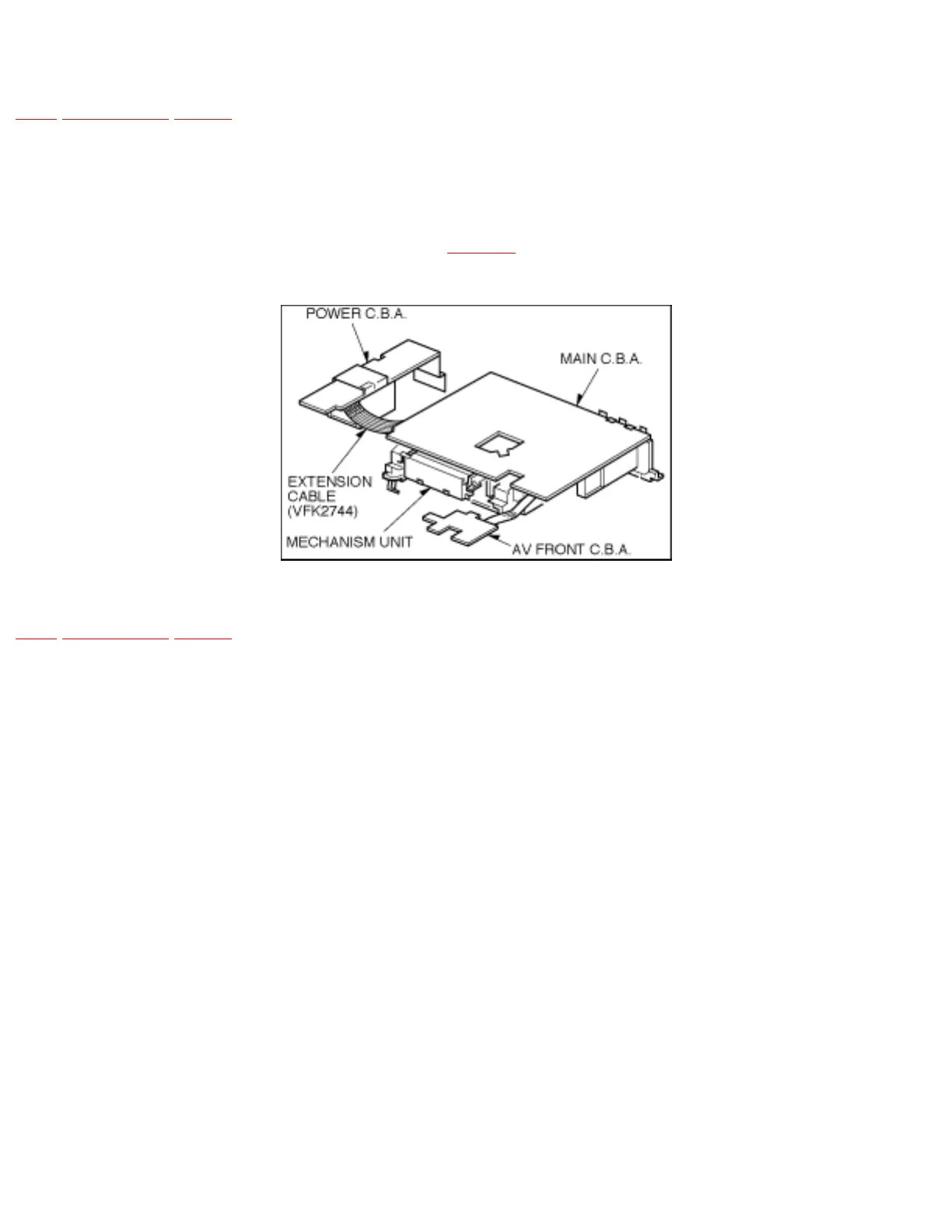

And then connect the Extension Cable (VFK2744) between the POWER C.B.A. connector (P1103) and
the MAIN C.B.A. connector (P1001) as shown in Fig. S3 .
Fig. S3
•@
