Panasonic NV-SD440EG/ - Detail of Disassembly Method

4.1.2 DETAIL OF DISASSEMBLY
METHOD
TOP PREVIOUS NEXT
REMOVAL OF THE TOP PANEL

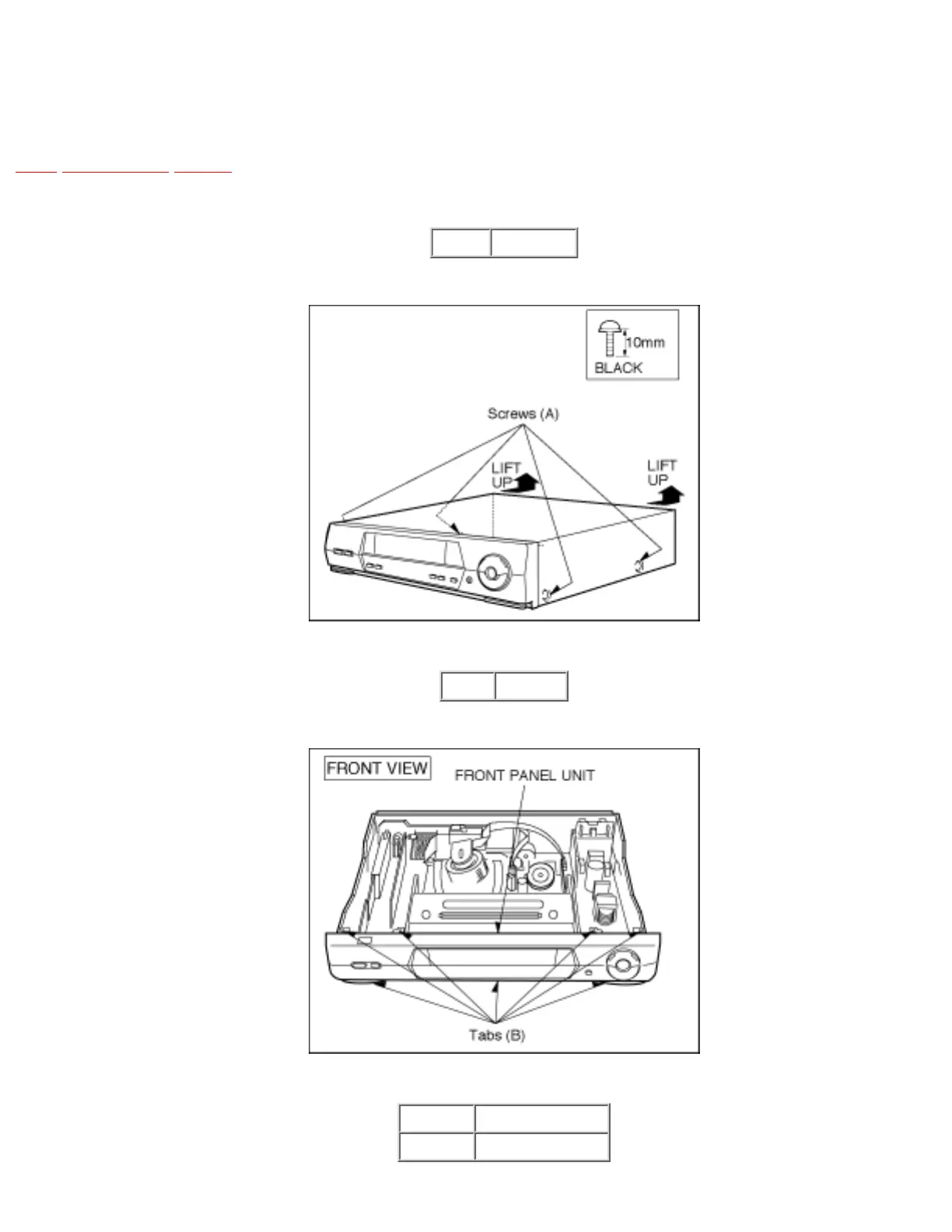

Remove 4 Screws (A)
Fig. D2
1.
REMOVAL OF THE FRONT PANEL UNIT
Unlock 7 Tabs (B)
Fig. D3
2.
REMOVAL OF THE POWER C.B.A.
Disconnect Bridge Connector (C)
Unlock 6 Tabs (D)
3.
