Panasonic NV-SD440EG/ - Page 26

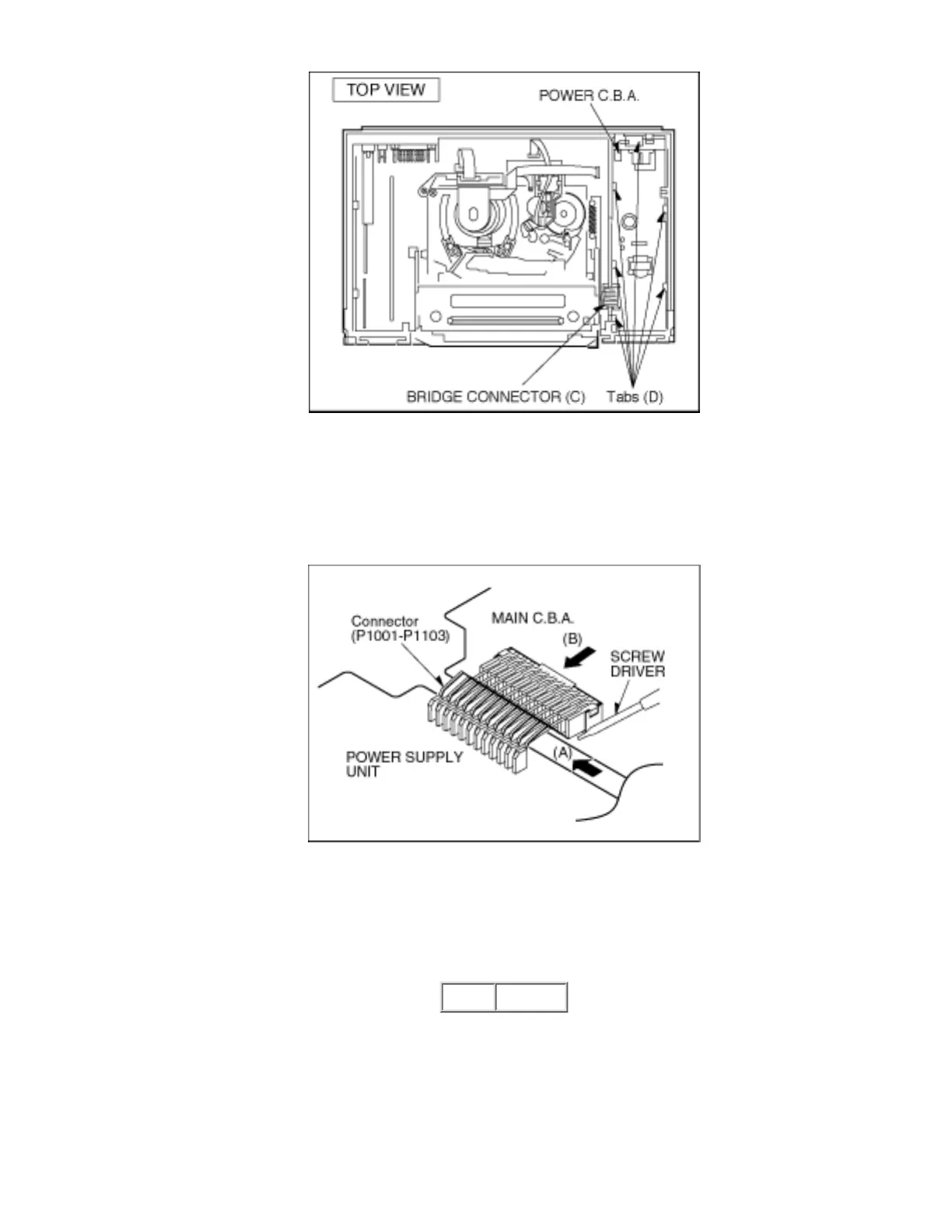

Fig. D4
COUTIONS:
Please pay an attention to disconnect the connector (P1001-P1103) which connected between
Main C.B.A. and Power supply unit as shown below.
Fig. D5
As above drawing, disconnect the connector by SCREW DRIVER from the direction (A)./Do not
disconnect from direction (B) because it is possibility to damage the parts located by the
connector.
REMOVAL OF THE AV FRONT C.B.A.
Unlock 2 Tabs (E)
Fig. D6
4.
