REMOVAL OF THE MECHANISM UNIT
Remove 3 Screws (F)
Remove 2 Screws (G)
Note:
Keep pressing 2 stoppers on Cassette Holder Plate and Press Cassette Holder Plate to the rear.

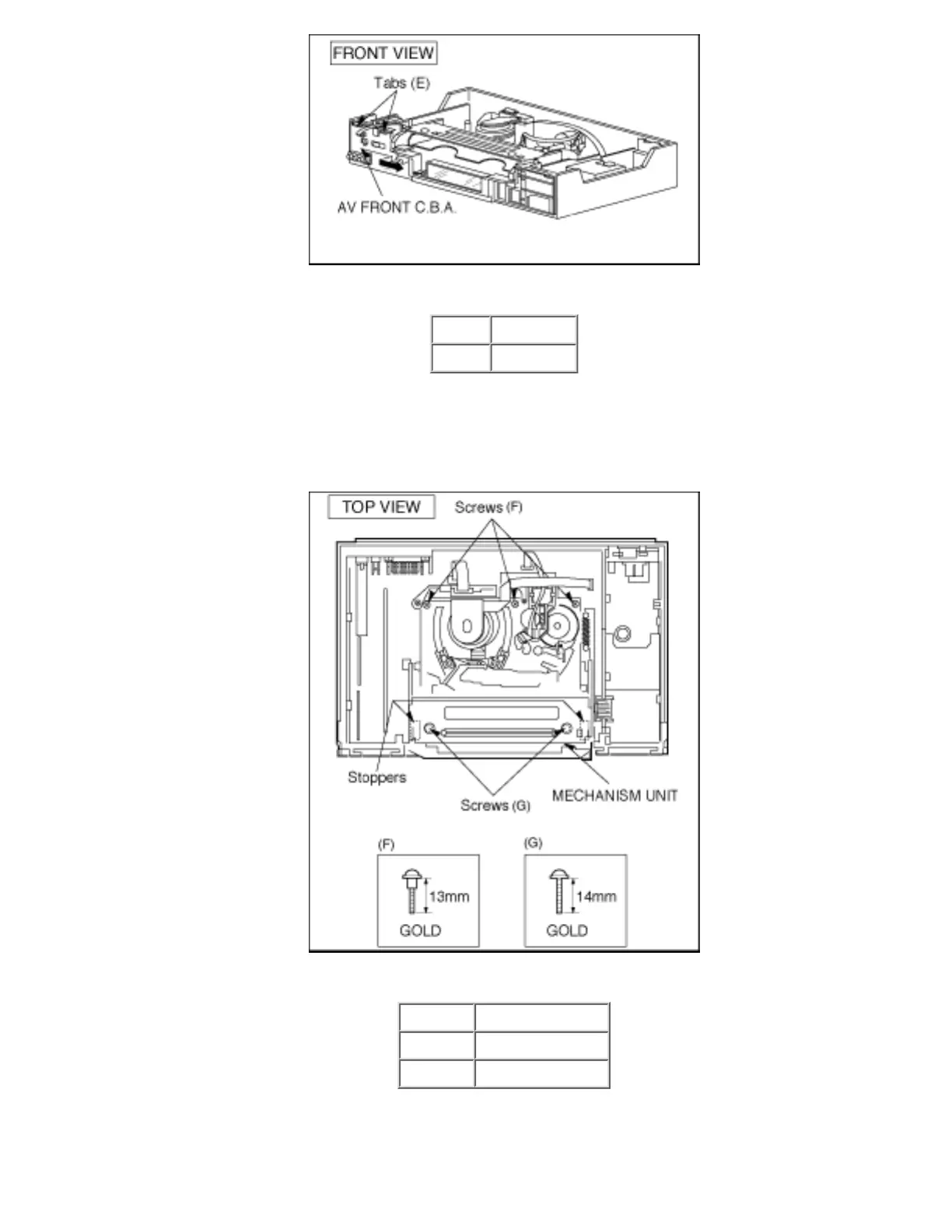

Fig. D7
5.
REMOVAL OF THE MAIN C.B.A.
Disconnect Bridge Connector (C)
Remove Screw (H)
Unlock 7 Tabs (I)
Fig. D8
