Panasonic NV-SD440EG/ - Cylinder Unit Replacement

2.1.3 CYLINDER UNIT REPLACEMENT
TOP PREVIOUS NEXT

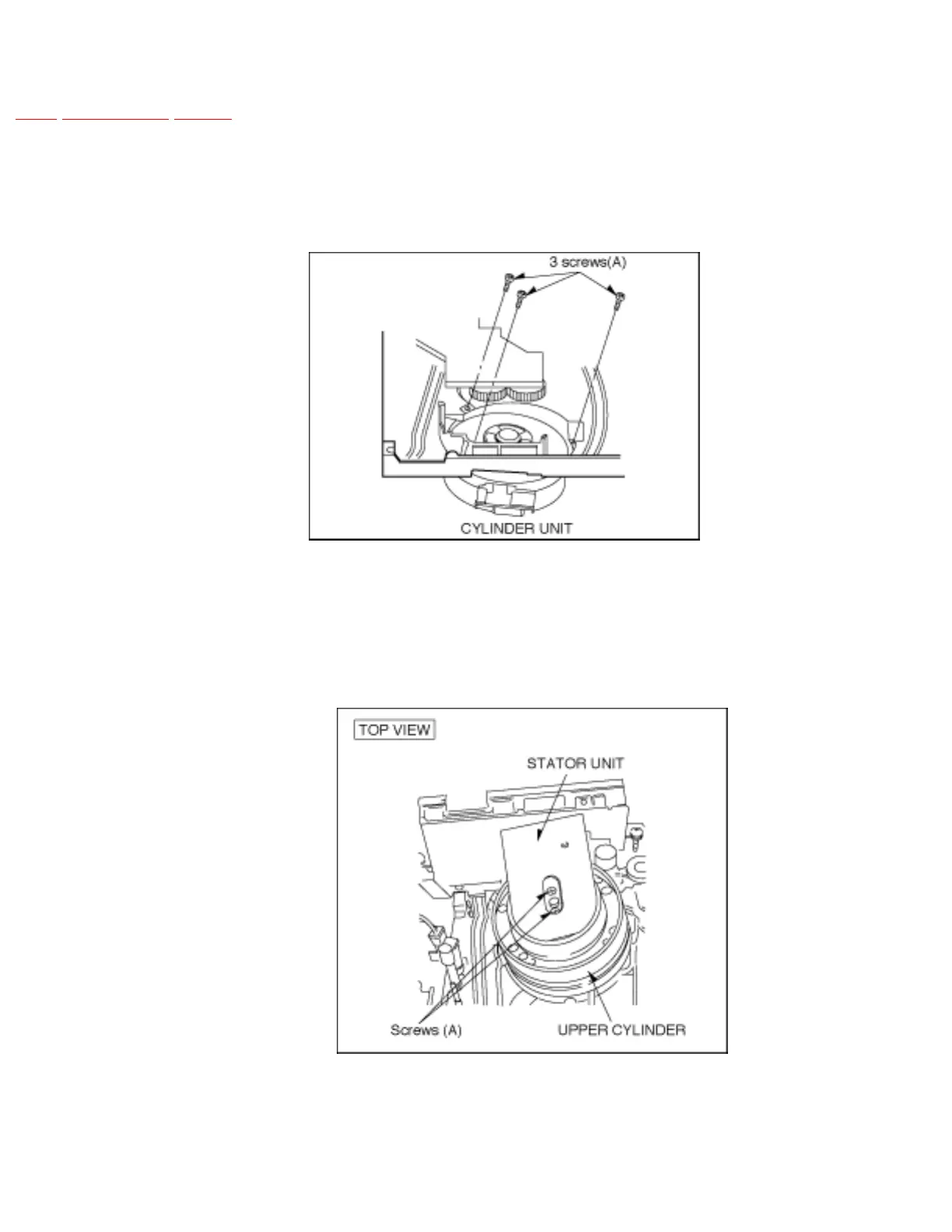

CYLINDER UINT REPLACEMENT
Remove the 3 Screws (A) of the CLINDER UNIT with a magnetized screw driver.1.
Fig. S4
UPPER CYLINDER DISASSEMBLY
Remove 2 screws (A).1.
Remove the Cylinder Stator Unit.
Fig. S5
2.
Remove 2 screws (B).3.
Remove the Cylinder Rotor Unit.
Fig. S6
4.
1.
