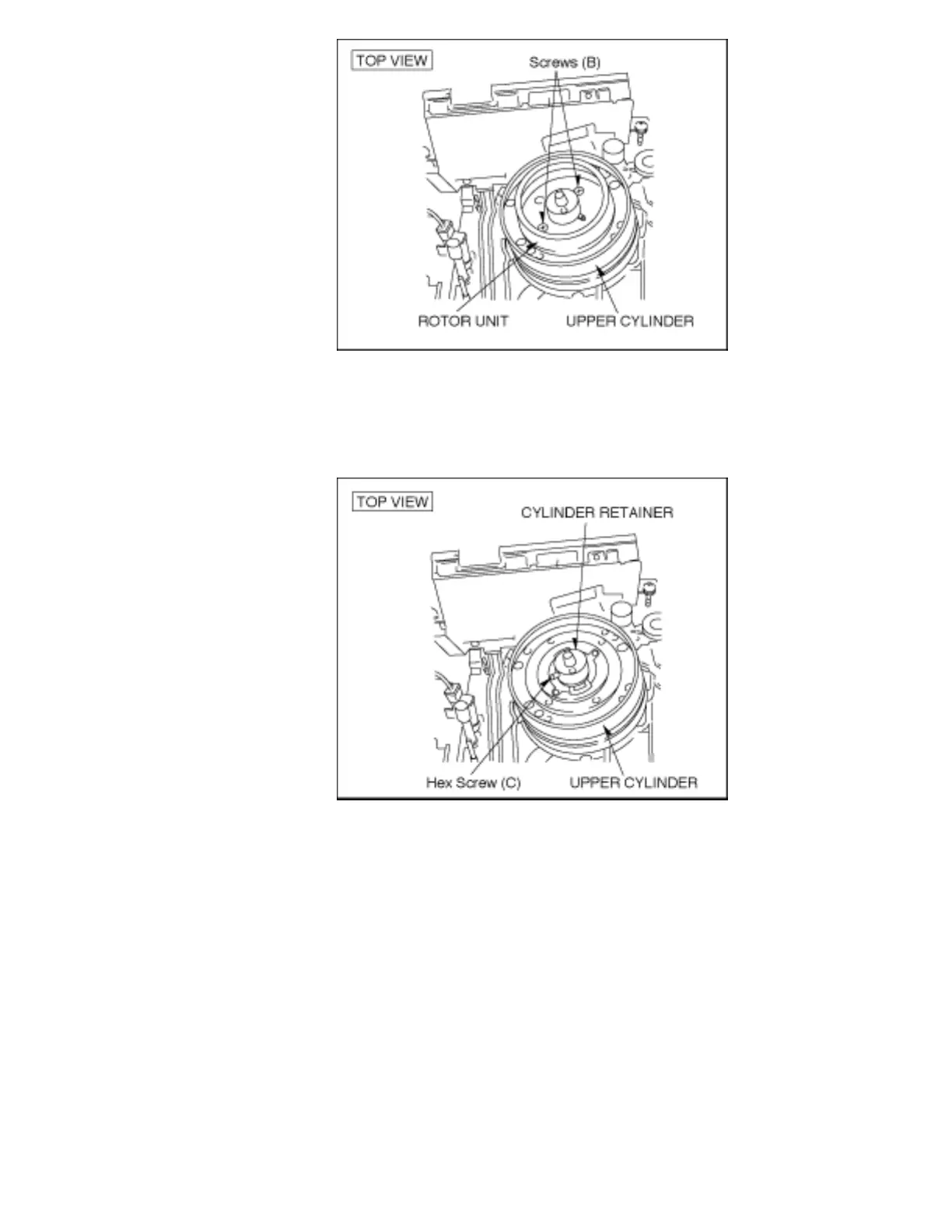

Loose hex screw (C) (1.5mm) and remove the Cylinder Retainer.5.
Remove the Upper Cylinder.
Fig. S7
6.
UPPER CYLINDER ASSEMBLY
Install the Cylinder Retainer so that the 2 holes on top of the Cylinder Retainer are at right
angles with the Head Amp Shield.
1.
Tighten the hex screw (C) (1.5mm) while pressing down on top of the Cylinder Retainer.
Fig. S8
2.
