Panasonic PT-AE900U

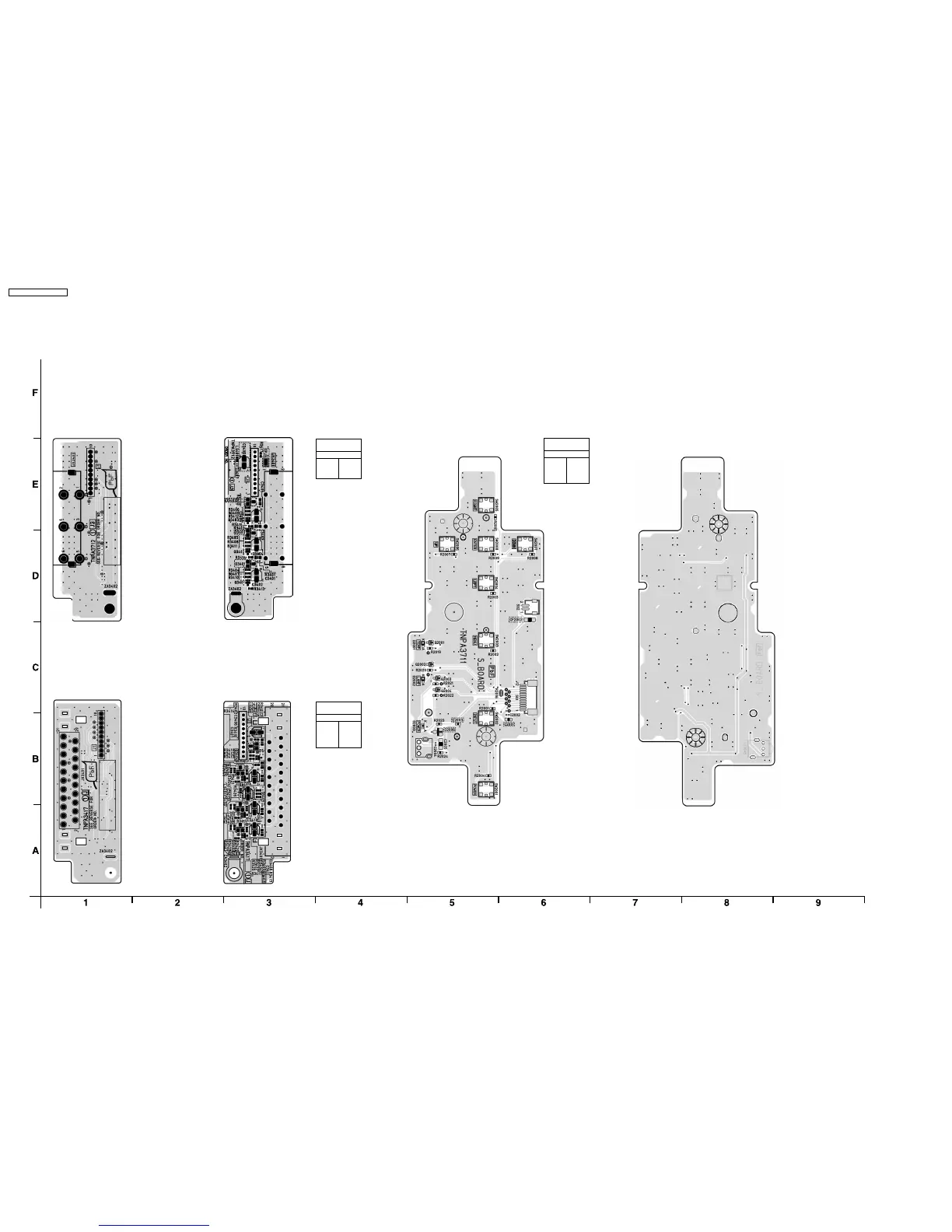

12.2. J-P.C.Board/S-P.C.Board
J-P.C.Board TNPA3712
(Foil Side)
(PT-AE900U only)
S-P.C.Board TNPA3711
(Foil Side)
S-P.C.Board TNPA3711
(Component Side)
J-P.C.Board TNPA3712
(Component Side)
(PT-AE900U only)
J-P.C.Board TNPA3417AB
(Foil Side)
(PT-AE900E only)
J-P.C.Board TNPA3417AB
(Component Side)
(PT-AE900E only)
ADDRESS INFORMATION
TRANSISTOR
J-P.C.Board
(
Component Side )
Q3401
Q3402
Q3403
D-3
D-3
E-3
ADDRESS INFORMATION
TRANSISTOR
J-P.C.Board
(
Component Side )
Q3401
Q3402
Q3403
Q3404
B-3
A-3
A-3
B-3
ADDRESS INFORMATION
TRANSISTOR
S-P.C.Board
(Foil Side)
Q2001
Q2002
Q2003
Q2004
C-5
C-5
C-5
C-5
PT-AE900U / PT-AE900E
60
