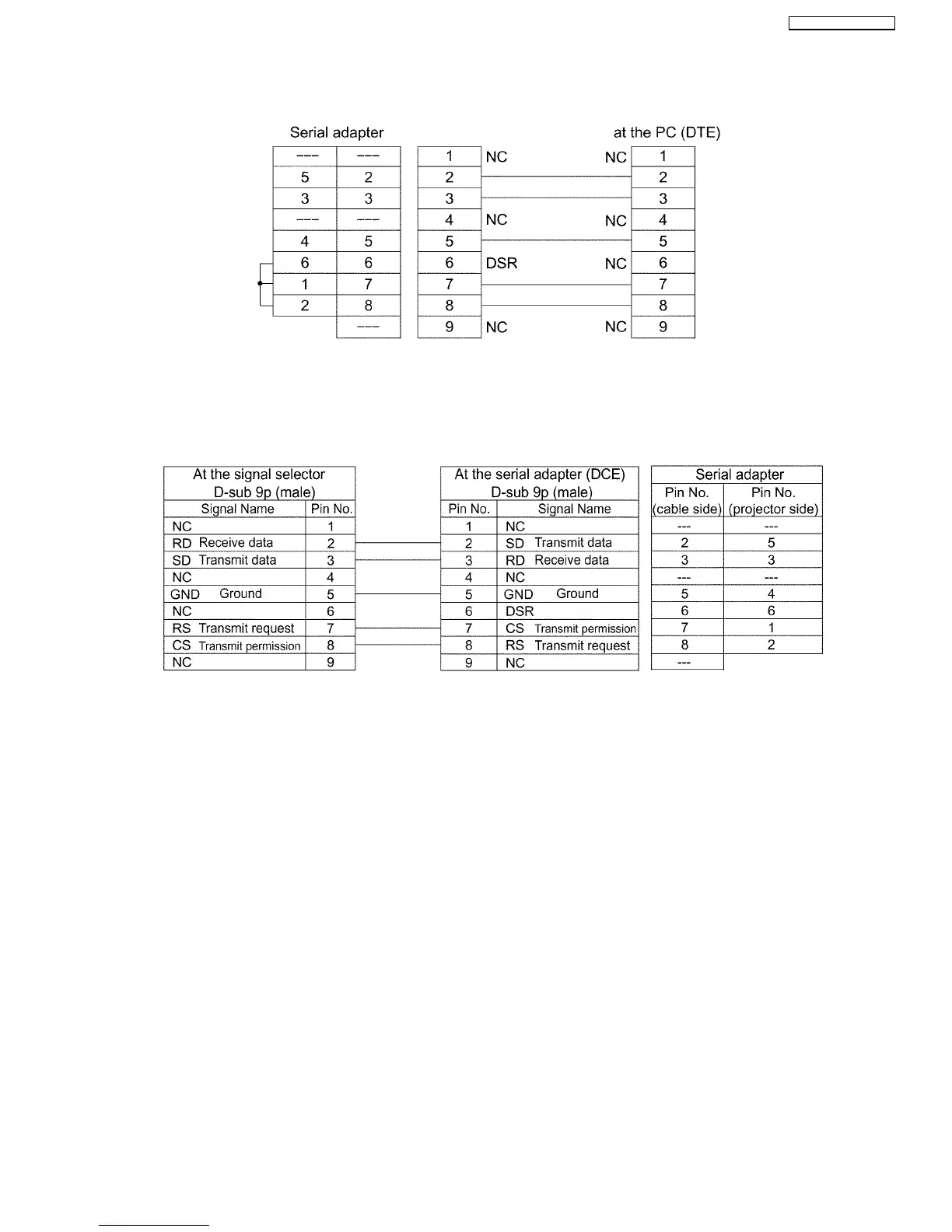

5.6. Communication Cable Specifications
5.7. Signal Selector Connecting Cable Specifications
When connecting to a signal selector (ex. TW-SWS62J), use a cable with specifications below.
Connecting method: Connects a video signal cable from the signal selector to "VIDEO IN", and an RGB signal cable to "PC IN".
Note:
Set VP control terminal switch of the signal selector to VP TYPE "B".
13
PT-AX200U / PT-AX200E
