About Your Projector
ENGLISH -
17
Preparation

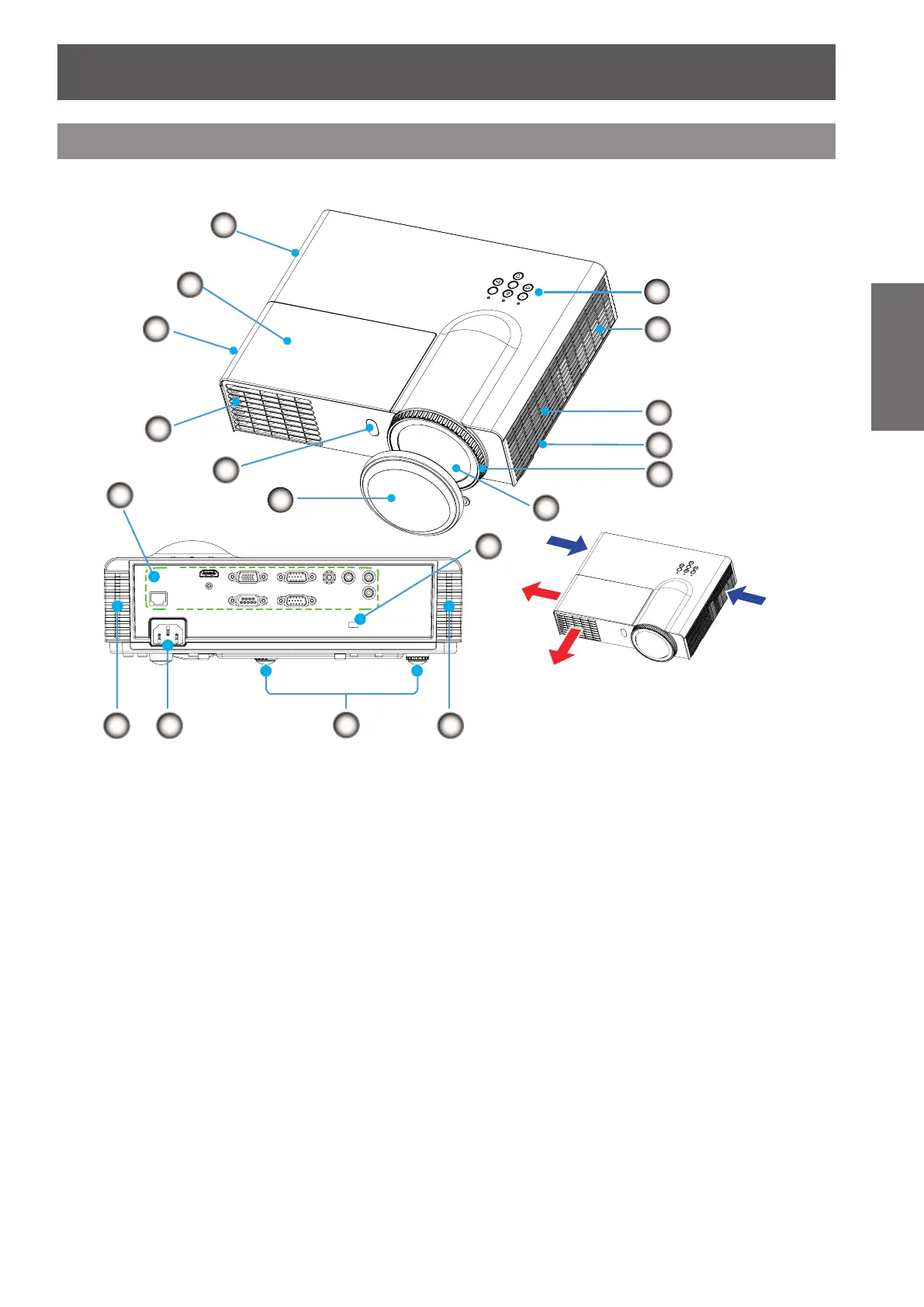

Projector body
3
2
2
1
121212124
121212125
12121210
12121212
12121213
12121211
121212128
121212129
121212129
7
121212126
12121214
12121215
12121216
(1) Control panel and indicators (
Æ
page 18)
(2) Air intake port
(3) Speaker
(4) Security bar
(5) Focus ring
Adjusts the focus.
(6) Projection lens
(7) Lens cap
(8) Remote control signal receiver
(9) Air exhaust port
WARNING:
Keep your hands and other objects away from
the air exhaust port
.
Keep your hand and face away.
z
Do not insert your nger.
z
Keep heat-sensitive articles away.
z
Heated air from the air exhaust port can cause burns
or external damage.
(10) Lamp cover
(
Æ
page 57)
(11) Security slot
Attaches the commercial shackle lock, manufactured
by Kensington, to protect your projector. Compatible
with the Kensington MicroSaver Security System.
(12) Air lter (right side)
(
Æ
pages 53, 55)
(13) Adjustable feet
Adjusts the projection angle.
(14) <AC IN> terminal
(15) Air lter (left side)
(
Æ
pages 53, 55)
(16) Connecting terminals
(
Æ
page 19)
