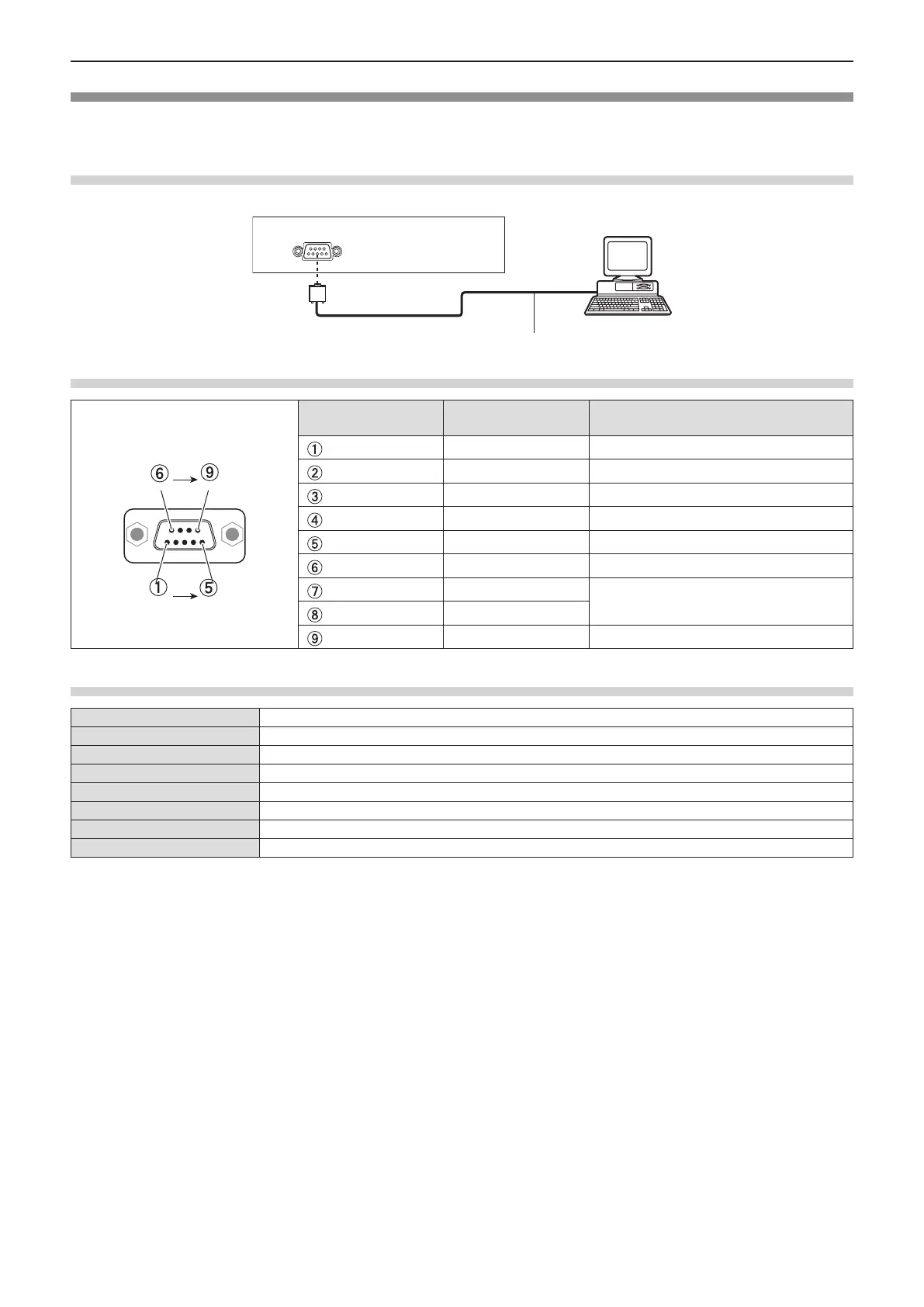

Serial terminal
The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specication, so that
the projector can be controlled by a personal computer which is connected to this connector.
Connection
Pin assignments and signal names
D-Sub 9-pin (female)
Outside view
Pin No. Signal name Contents
— NC
TXD Transmitted data
RXD Received data
— NC
GND Earth
— NC
CTS
Connected internally
RTS
— NC
Communication conditions
Signal level
RS-232C-compliant
Sync. method
Asynchronous
Baud rate
9 600 bps
Parity
None
Character length
8 bits
Stop bit
1 bit
X parameter
None
S parameter
None
Connecting terminals on projector
D-Sub 9p (female)
Computer
Communication cable (straight)
D-Sub 9p (male)
126 -
ENGLISH
Chapter 6 Appendix - Technical Information
