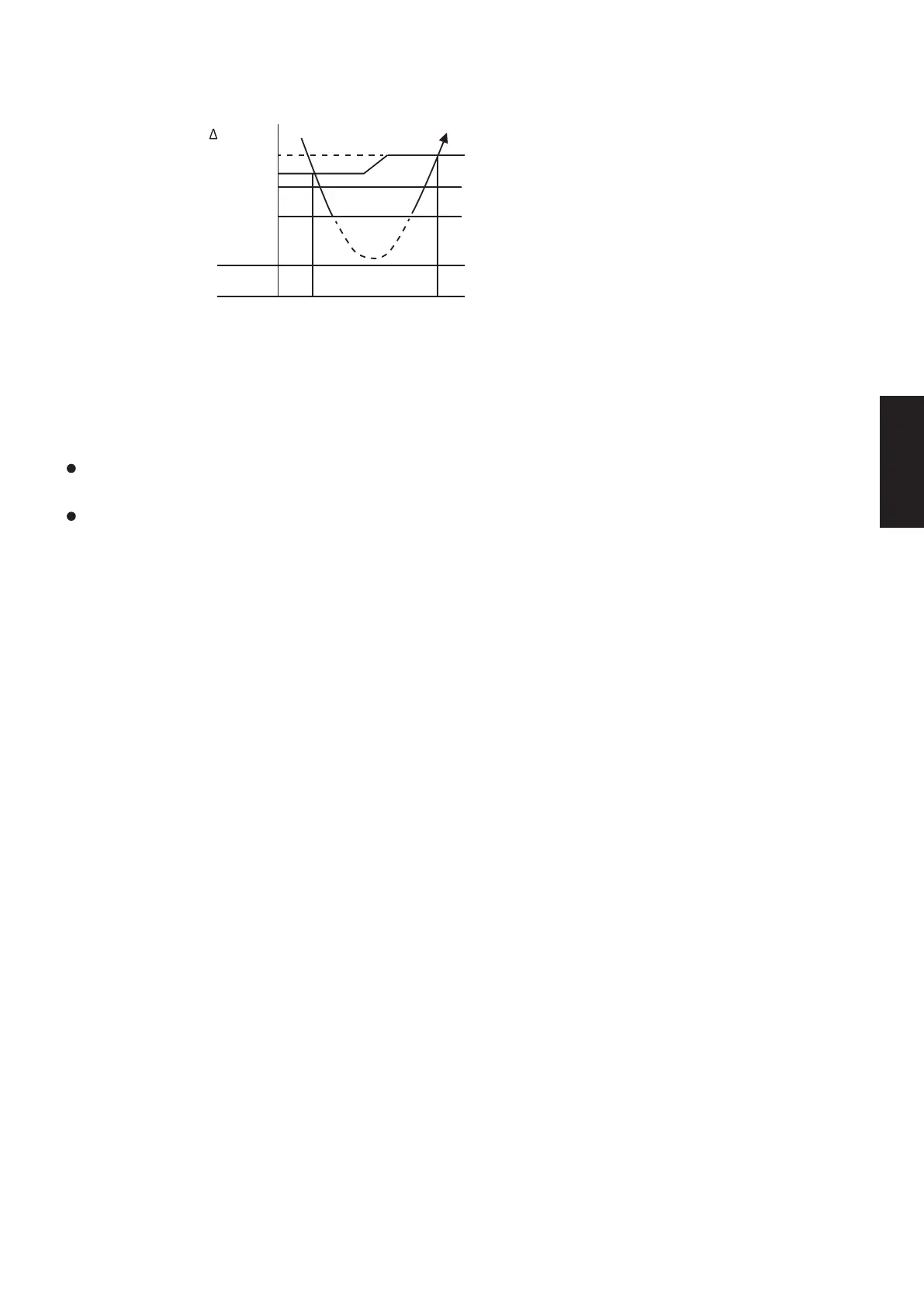

4-8. Fan Control during Dry Mode
The fan control during dry mode is as follows.
4-9. Ventilation Fan Output
The output of ventilation turns ON when the indoor unit turns ON. Also, when the indoor unit turns OFF,
the output of the ventilation turns OFF.
The ventilation fan can also be turned ON and OFF using the ventilation button on the remote controller.
Refer to the operating instructions supplied with the remote controller.
To enable this function, set the indoor EEPROM DN31 to “0001” in advance.
4-10. T10 Terminal
Using the T10 terminal, each indoor unit can be operated or stopped separately. Also, operating condition can be
checked.
T (deg)
+3.5
+0.5
-3.0
A AB
Fan mode
B:Fan mode is DRY-L during thermostat ON, LL during thermostat OFF
( L ≥ DRY-L ≥ LL)
A:Fan mode is set in the remote controller
Set temp. in remote controller
4-6. Automatic Flap Control
The flap position can be selected from 5 positions.
Operating mode Flap position
Cooling/Dry
Fan
1Heating
2 3 4 5
1
2 3 4 5
1
2 3 4 5
The flap will be closed automatically when the indoor unit is stopped.
For 4-Way cassette type (U3), the flap closes once and moves to the set position when the operating
mode is changed.
Do not change the flap position manually.
Only the swing operation can be used.
The swing operation can be set for the flap.
4-7. Filter Sign
When accumulated operating time of the indoor unit reaches the set time, the filter sign appears on
the remote controller. Clean the filter.
See the section “7-2. List of Simple Setting Items, 7-5. Simple Setting Items and Filter sign ON
times for each model”.
After cleaning the filter, press the filter button on the remote controller once. The filter sign turns off.
1
2
3
4
5 (Fully open)
Close
Type U3
NOTE
