5-4. How to Replace Fan Motor
Type F3
Removing Fan Motor
Remove the Lid of electrical component box and the
wiring cover. (Screws × 5 locations: Fig. 1)
Make sure the PC board should not be electrified.
Power supply LED should be lit off on PC board. (Fig. 2)
3. Disconnect the interconnector in the middle
of the wiring to the fan motor. (Fig. 2)
4. Remove the bottom plate. (Fig. 3)
5. Disconnect the wires. (Fig. 4)
Turn off the power supply.
WARNING
ELECTRICAL SHOCK CAN CAUSE
SEVERE PERSONAL INJURY OR DEATH.

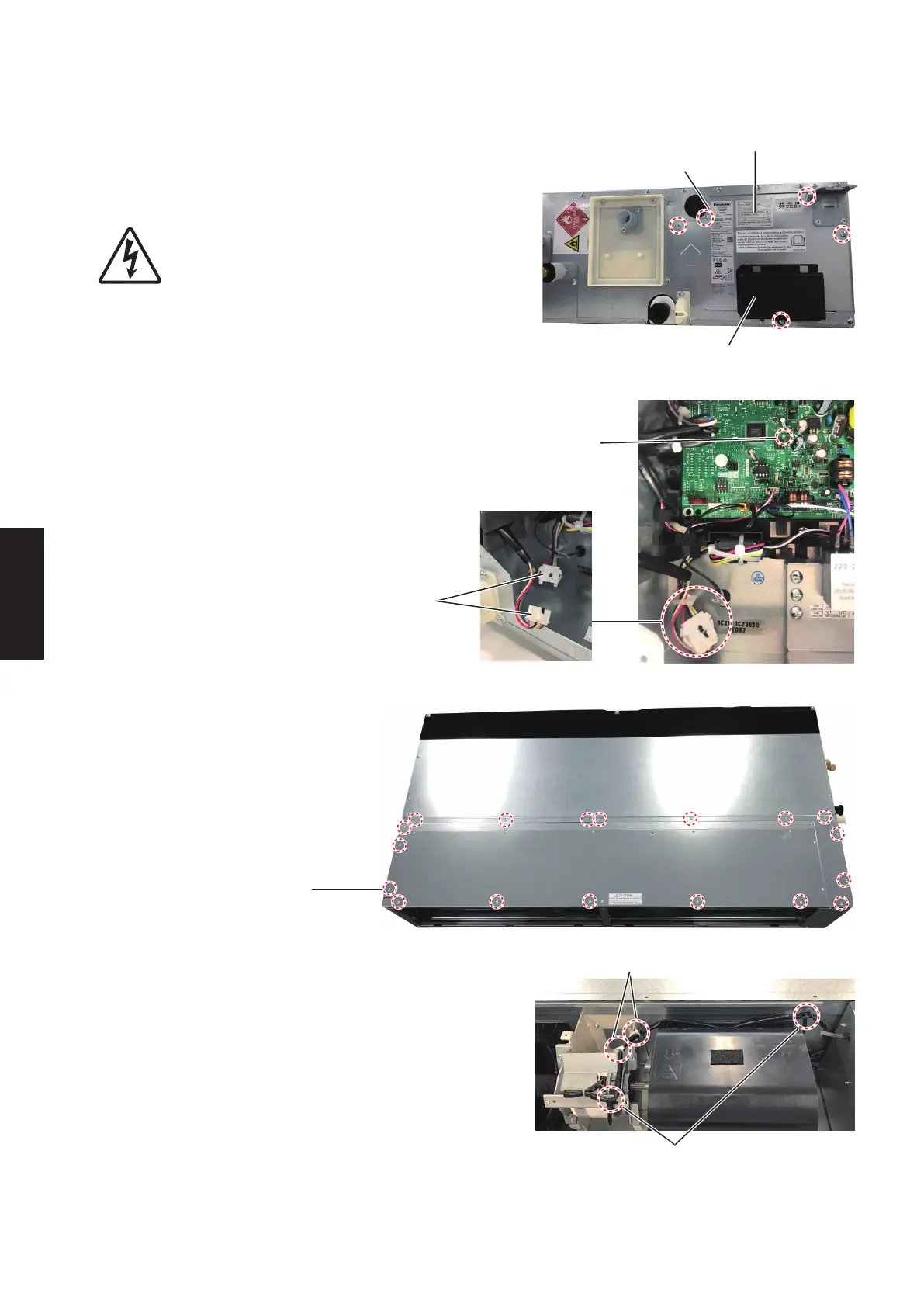

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Screw × 5
Wiring cover
Interconnector
Power LED
Band (cut out)
Band (desorb)
Screw x 18
Screw
Lid of electrical
component box
