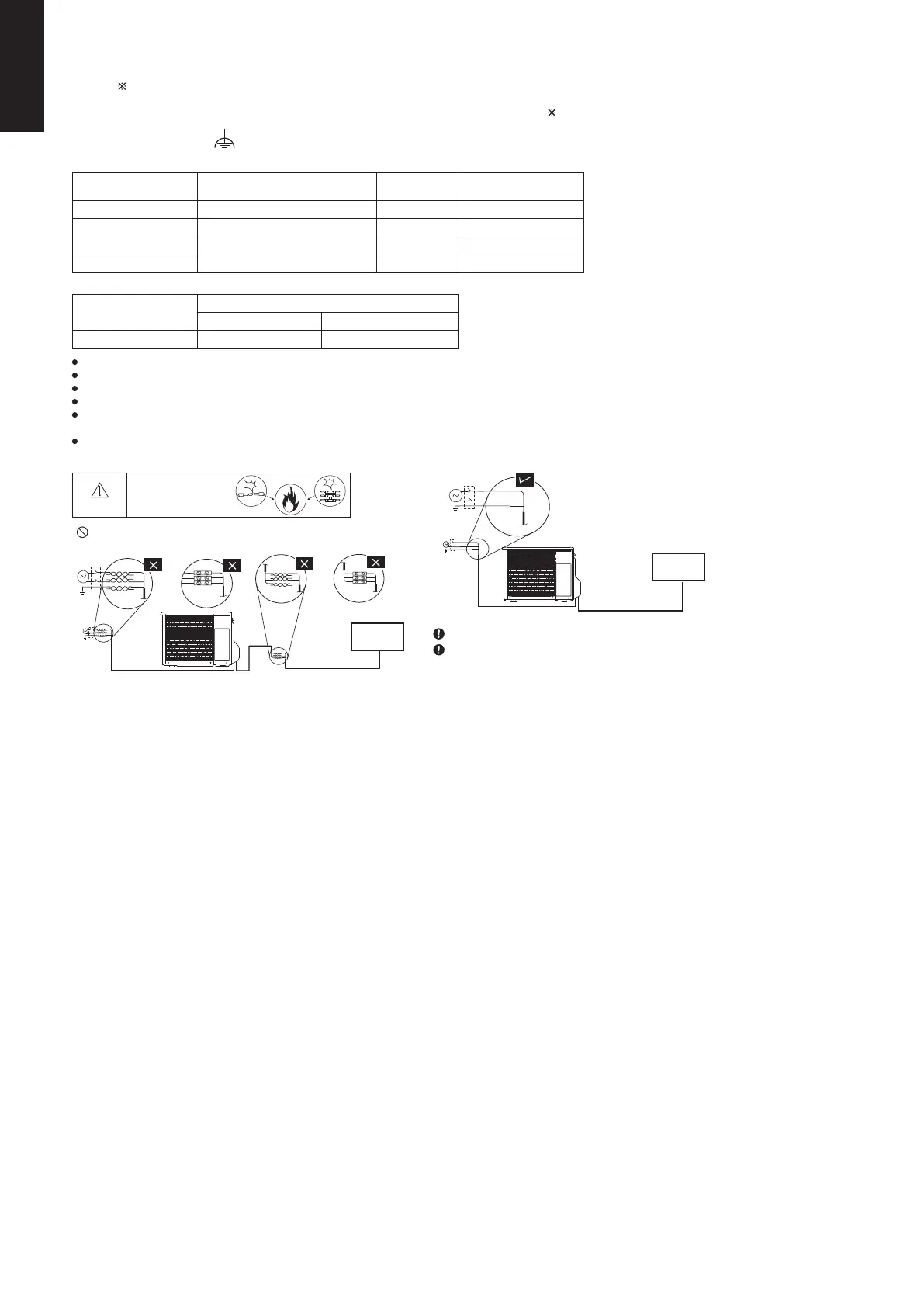

1
1-10-2-1-2
Outdoor unit
Model (A) Power supply cable
Min. wire size
(mm
2
)
Time delay fuse or
circuit capacity (A)
U-36PZ3E5 220-230-240V ~ 2.5 15
U-50PZ3E5 220-230-240V ~ 2.5 15
U-60PZ3E5 220-230-240V ~ 2.5 20
U-71PZ3E5 220-230-240V ~ 2.5 20
Refer to the installation instruction manual provided with the indoor unit.
The product meets the technical requirements of EN/IEC 61000-3-3.
Decide the length and size of the power supply cable based on the maximum ampere tabulated above in accordance with the national wiring regulations.
Select the fuse(s) and/or circuit breaker(s) from the types and ratings suitable for the maximum ampere tabulated above in accordance with the national wiring regulations.
An RCD suitable for use with inverters, resistant to high frequency noise, is most suitable. RCD’s intended for protection to include high frequency currents are
unnecessary and should be avoided, as potentially causing nuisance tripping, in this application.
If capacity of power supply circuit and enforcement are not enough, it can causes the electric shock and a fi re.
Control wiring
Type
Connection cable between outdoor and indoor unit
Outdoor unit Max. length
1.5 mm
2
U-36 ~ 71PZ3E5 40 m
WARNING
RISK OF FIRE
JOINING OF WIRES MAY
CAUSE OVERHEATING
AND FIRE.
Do not joint wires.
OROR
Indoor Unit
Use complete wire without joining.
Wire connection in this area must follow to national wiring rules.
Indoor Unit
Ssc : Short circuit power
: functional earthing
(for the shielded cable)
This equipment complies with EN/IEC 61000-3-12 provided that the short-circuit power Ssc is greater than or
equals to
2 kVA at the interface point between the user’s supply and the public system. It is the responsibility of
the installer or user of the equipment to ensure; by consultation with the distribution network operator if necessary
that the equipment is connected only to supply with a short-circuit power Ssc greater than or equals to
2 kVA.
