* The mechanism as shown below is for DECK1. For DECK
2, perform the same procedures.

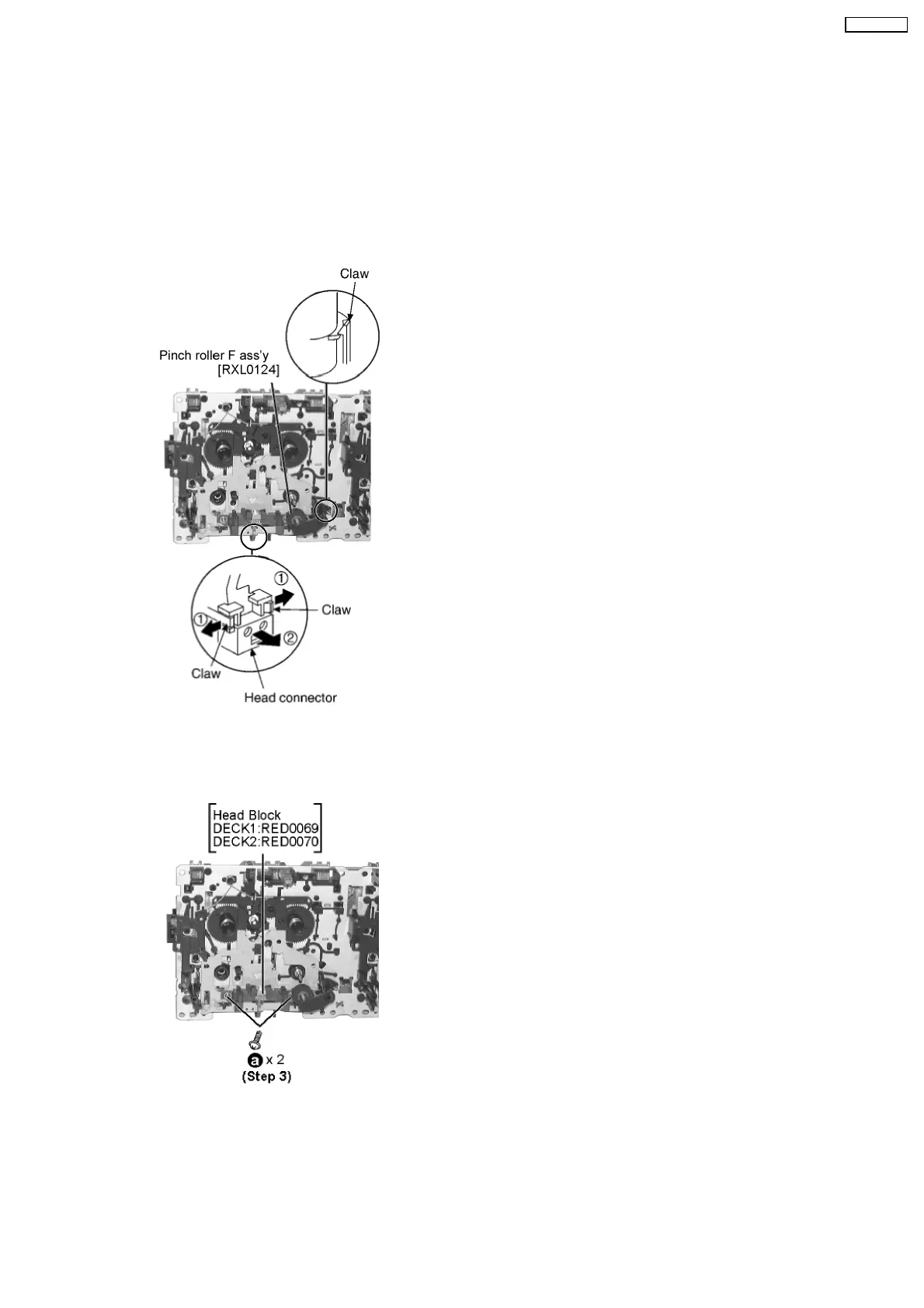

Step 1 Release the 2 claws, and then remove the pinch roller
(R), (F).
Step 2 Release the 2 claws, and then remove the head
connector.
Step 3 Remove 2 screws.
9.13. Replacement for the pinch roller ass’y and head block
·
Follow the (Step 1) - (Step 2) of Item 9.3 - Disassembly of Top Cabinet
·
Follow the (Step 1) - (Step 6) of Item 9.4 - Disassembly of CD Lid
·
Follow the (Step 1) - (Step 3) of Item 9.6 - Disassembly of CD Mechanism Unit
·
Follow the (Step 1) - (Step 3) of Item 9.10 - Disassembly of Front Panel Unit
·
Follow the (Step 1) - (Step 5) of Item 9.11 - Disassembly of Deck Mechanism Unit
33
SA-AK330EE
To Next Page
