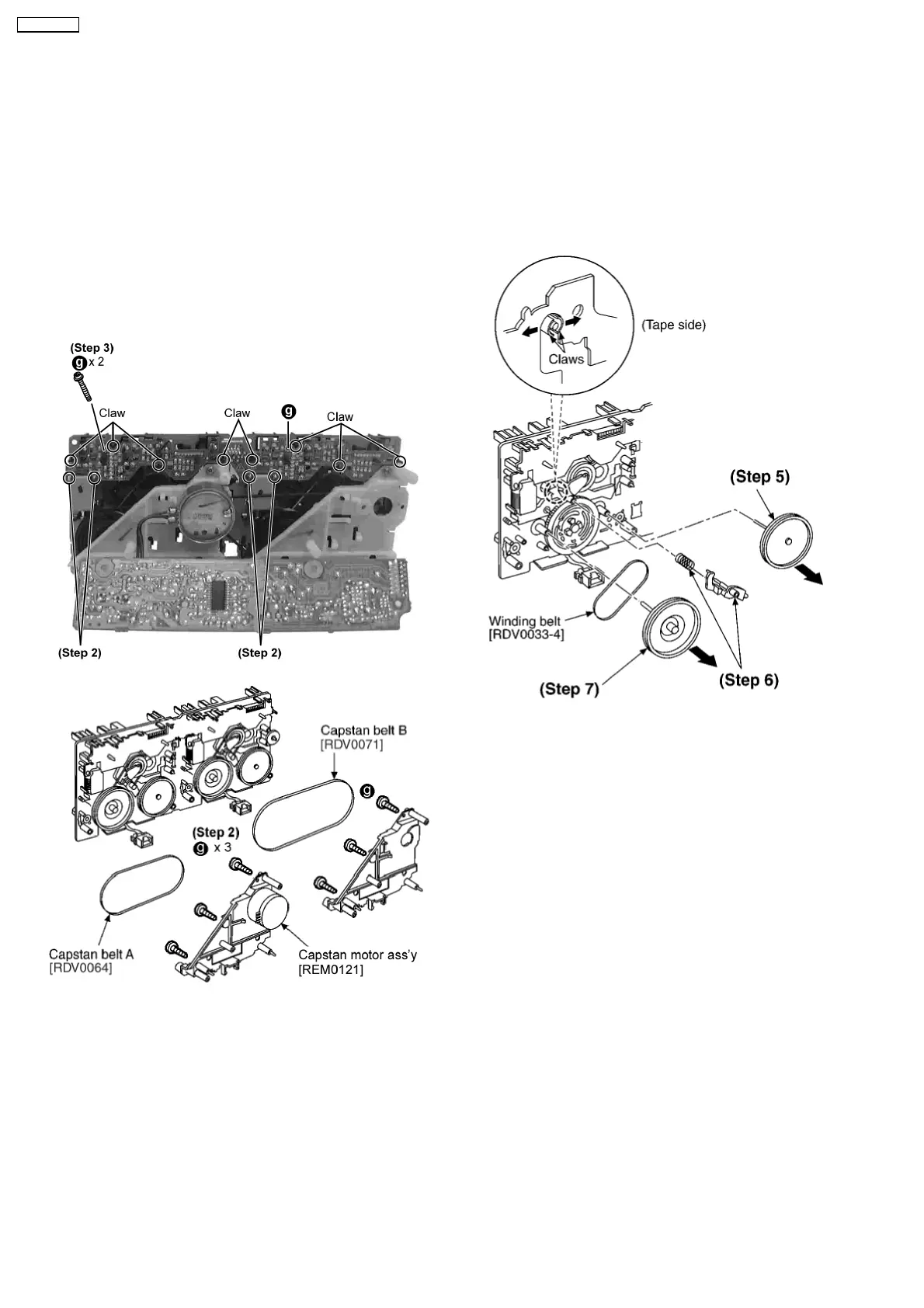

Step 1 Release the 2 claws, and then remove the head
connector.
Step 2 De-solder plunger point.
Step 3 Remove the Deck Mechanism P.C.B.
Step 4 Remove 3 screws.
Step 5 Remove the flywheel R.
Step 6 Release the claw of tape side, and then remove the
winding lever and spring.
Step 7 Remove the flywheel F.
[Installation of the belt]
Step 1 The boss and marking should be positioned
horizontally.
9.14. Replacement for the Deck motor ass’y, capstan belt A, capstan belt B
and winding belt
·
Follow the (Step 1) - (Step 2) of Item 9.3 - Disassembly of Top Cabinet
·
Follow the (Step 1) - (Step 6) of Item 9.4 - Disassembly of CD Lid
·
Follow the (Step 1) - (Step 3) of Item 9.6 - Disassembly of CD Mechanism Unit
·
Follow the (Step 1) - (Step 3) of Item 9.10 - Disassembly of Front Panel Unit
·
Follow the (Step 1) - (Step 5) of Item 9.11 - Disassembly of Deck Mechanism Unit
34
SA-AK33 0EE
To Next Page
