10.3. Checking of Panel, Deck & Deck Mechanism P.C.B.
1. Remove Top Cabinet.
2. Remove CD Lid.
3. Disassemble CD Mechanism Unit.
4. Remove volume knob at Front Panel Unit.
5. Disassemble Panel P.C.B.
6. Disassemble Deck Mechanism Unit.

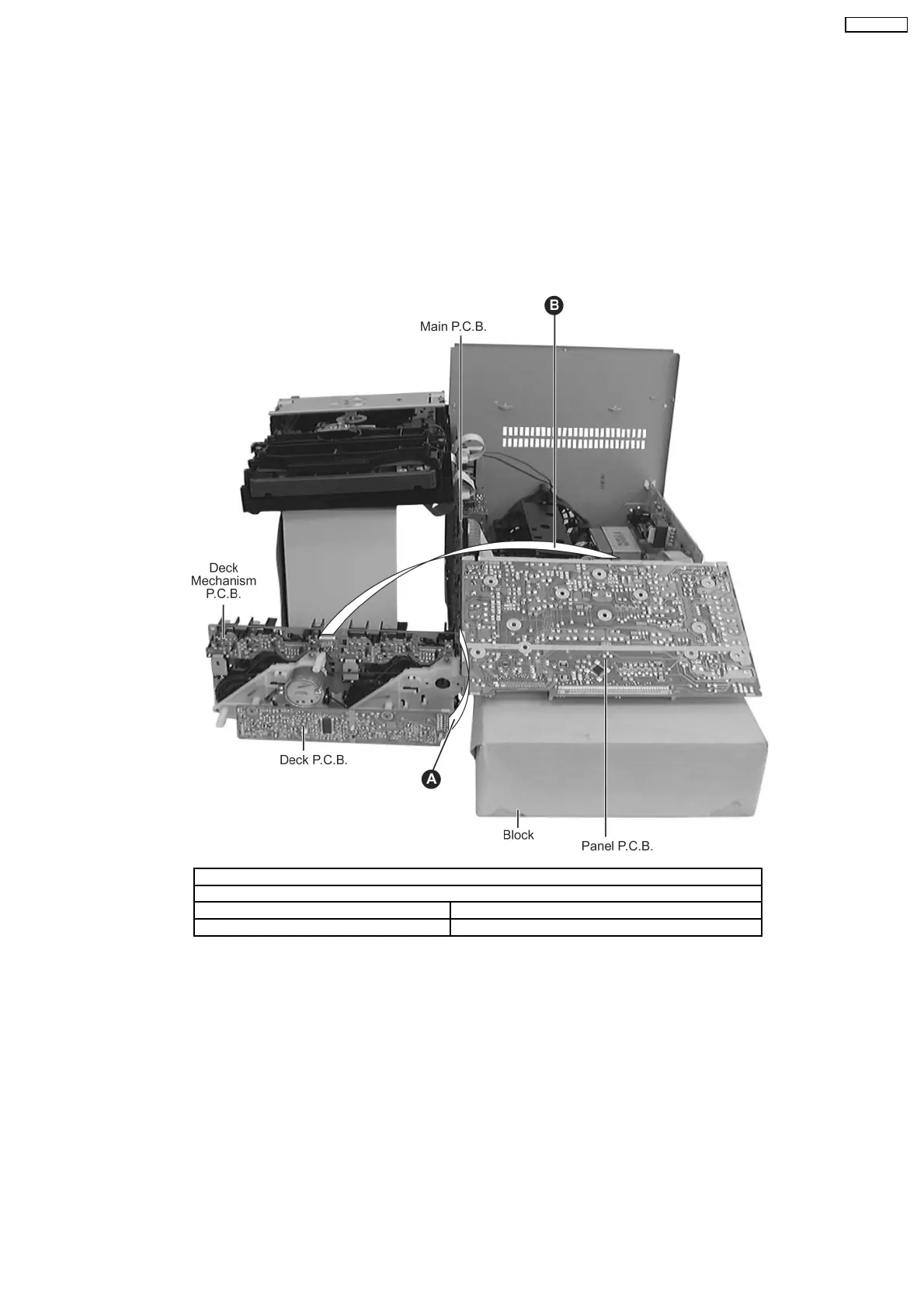

7. Use the extension cable (A) to reconnect (CN1001) Deck P.C.B. and (CN2803) Main P.C.B.
8. Use the extension cable (B) to reconnect (CP6401) Panel P.C.B. and (CN971) Deck Mechanism P.C.B.
Service Tools
Extension FFC
(A) Deck P.C.B. - Main P.C.B. REEX0485 (14 Pins)
(B) Panel P.C.B. - Deck Mechanism P.C.B. REEX0484 (10 Pins)
