Panasonic SA-MAX4000E - Electrical Replacement Parts List

29

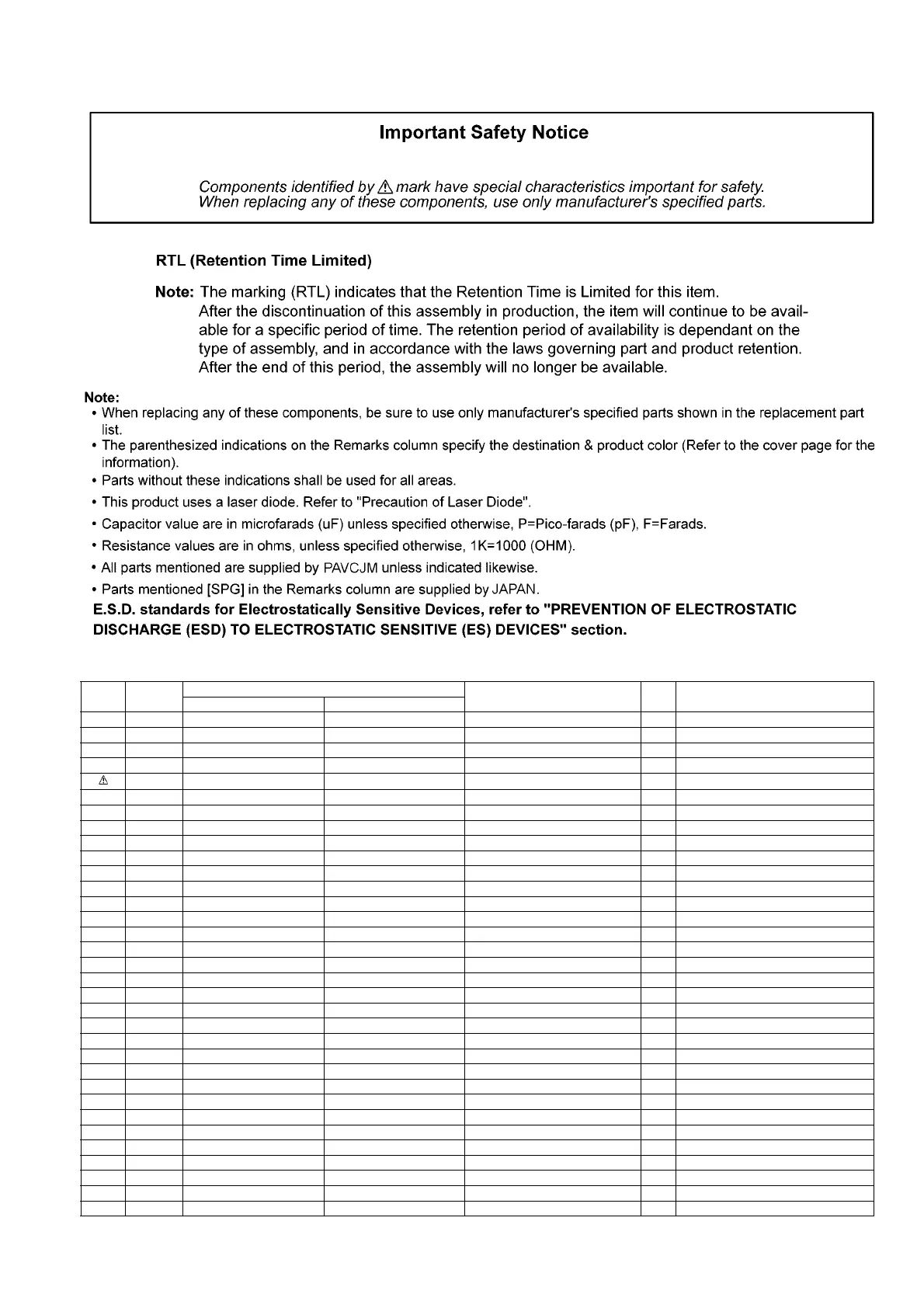

6.6. Electrical Replacement Part List
Safety Ref. No. Parts No. Parts name & Description Qty Remarks
SA-MAX4000PN SA-MAX4000E/GM/GS
PCB1 RFKV5075RA RFKB5075QA MAIN P.C.B W/DATA 1 (E.S.D), JIGS & ADJ, GM/GS
PCB1 RFKV5075RA RFKB5075YA MAIN P.C.B W/DATA 1 (E.S.D), JIGS & ADJ, E
PCB3 RFKV5075RA RFKB5075QA BT&NFC P.C.B 1 (E.S.D), JIGS & ADJ, GM/GS
PCB3 RFKV5075RA RFKB5075YA BT&NFC P.C.B 1 (E.S.D), JIGS & ADJ, E
PCB14 N0AB2GP00003 N0AC2GP00004 SMPS MODULE 1
IC2001 RFKV5075RA RFKB5075QA IC 1 (E.S.D), JIGS & ADJ, GM/GS
IC2001 RFKV5075RA RFKB5075YA IC 1 (E.S.D), JIGS & ADJ, E
LB2500 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2501 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2502 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2503 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2504 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2505 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2506 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2507 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2508 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2509 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2510 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2531 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2532 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2533 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2534 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2535 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2536 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2537 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB2539 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB5006 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB5007 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB5008 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB5009 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB5010 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB5011 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
LB5012 D0GBR00J0004 J0JBC0000010 INDUCTOR 1
