5

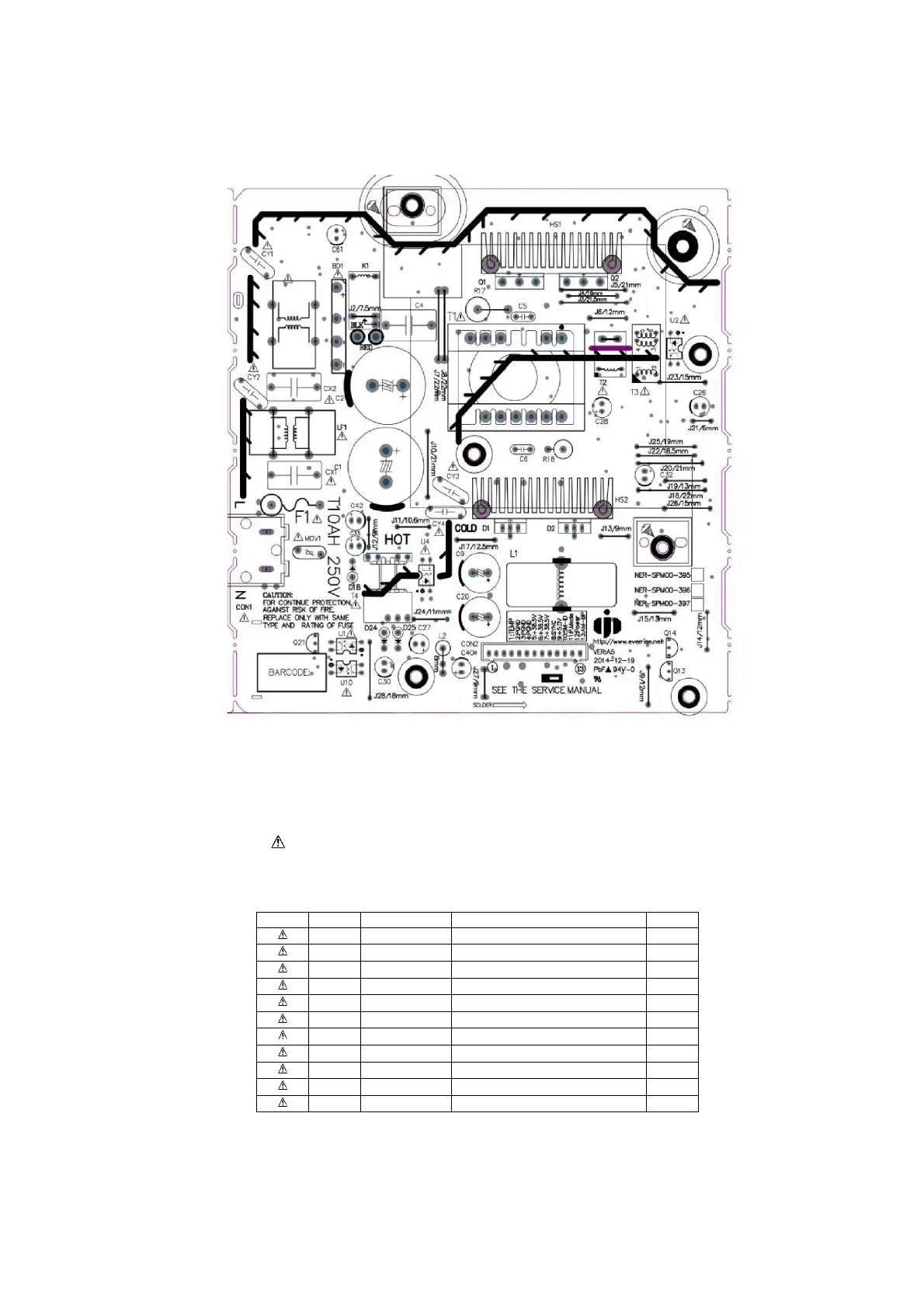

2.2. Power Supply using SMPS Module
This model uses Switching Mode Power Supply (SMPS) to provide the power supply to the unit. Here is the supplied part no. for the
SMPS Module
1) N0AC2GP00004
Figure 1-3
2.3. Safety Parts Information
Safety Parts List:
There are special components used in this equipment which are important for safety.
These parts are marked by in the Schematic Diagrams, Exploded View & Replacement Parts List. It is essential that these
critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the
original design without permission of manufacturer.
Safety Ref No. Part No. Part Name & Description Remarks
24 RGR0455H-E1 REAR PANEL GM/GS
24 RGR0455H-D REAR PANEL E
33 RKM0744-K2 TOP CABINET
301 RAE1049Z-V TRAVERSE ASS'Y (E.S.D)
A2 K2CJ2YY00101 AC CORD GM/GS
A2 K2CP2YY00061 AC CORD GM/GS
A2 K2CQ2YY00119 AC CORD
A2 K2CT2YY00097 AC CORD
A3 RQT0A38-D O/I BOOK (En/Ge/Fr/It/Po/Cz) E
A3 RQT9983-Z O/I BOOK (En/Cn/Ru/Ur/Ar) GM/GS
PCB14 N0AC2GP00004 SMPS MODULE
