- This unit has a gear which used for checking items (open/close of
disc tray, up/down operation of traverse unit by manually) when
servicing. (For gear information, that is described on the items for
disassembly procedures.)
- For preparation of gear (for servicing), perform the procedures as
follows.
- In case of re-servicing the same set, the “gear for servicing” may
be took off because it had been used. So, the “gear for servicing”
must be stored.

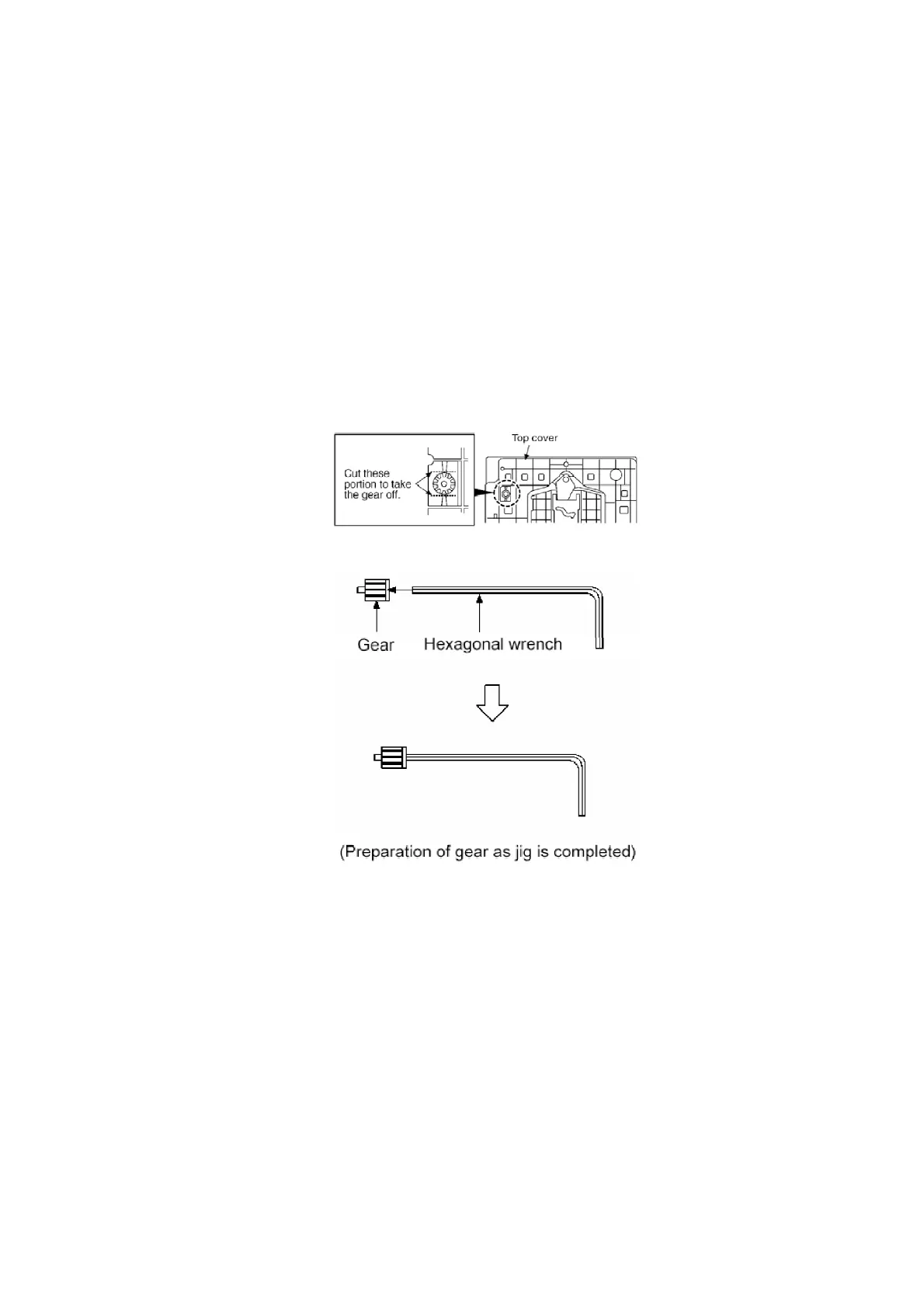

1. Remove the gear attached to top cover of CD loading mechanism.
2. Insert the hexagonal wrench (2.5mm) into the gear.
8.10.2. Replacement for the disc tray
32
