2. Protection Circuitry
The protection circuitry may have operated if either of the following conditions are noticed:
- No sound is heard when the power is turned on.
- Stops during a performance.
The function of this circuitry is to prevent circuitry damage if, for example, the positive and
negative speaker connection wires are “shorted”, or if speaker systems with an impedance less
than the indicated rated impedance of the amplifier are used.
If this occurs, follow the procedure outlines below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once again after one minute.
Note:
When the protection circuitry functions, the unit will not operate unless the power is first turned
off and then on again.

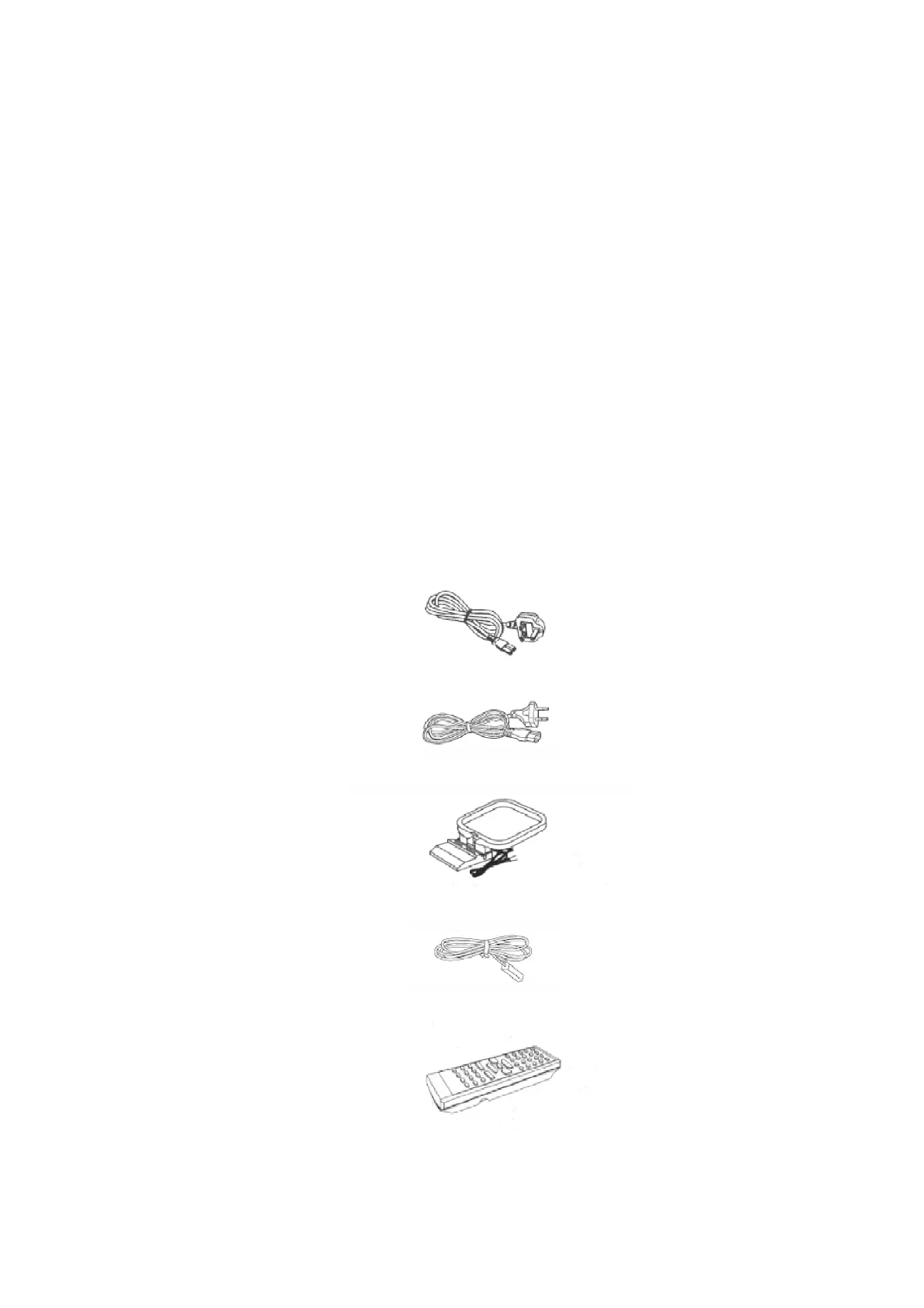

3. Accessories
AC Main Lead .....(For EB only)
AC Main Lead .....(For E & EG only)
AM Loop Antenna.....1 pc
FM Indoor Antenna
Remote Control Transmitter.....1 pc
Antenna plug adaptor .....(For EB only)
4
