11.2. Operation Check without Cassette Tape

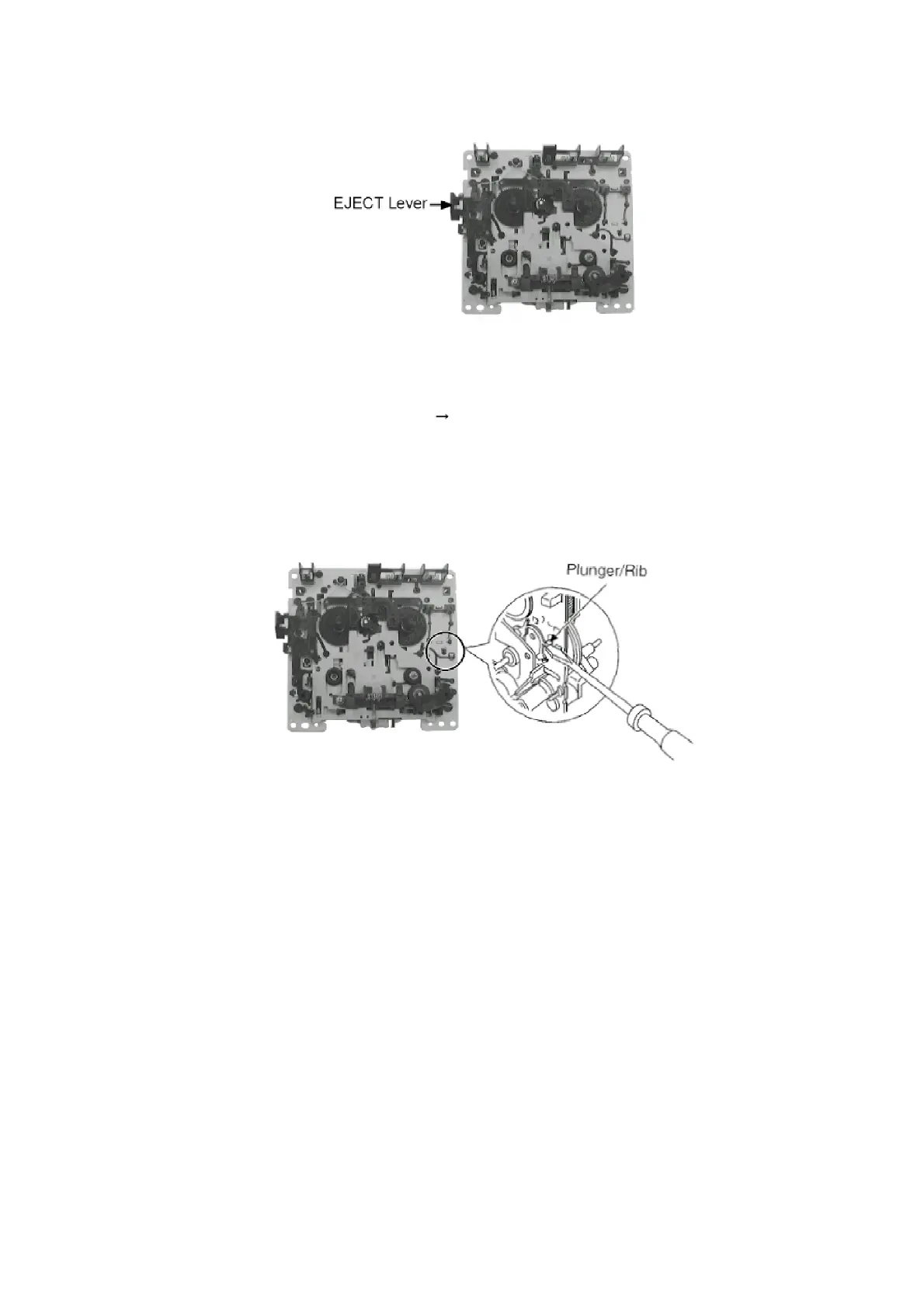

1. Pull up the EJECT lever using a rubber band. (Cf. Fig. 6)
2. Supply DC5V to MOTOR. ( MOTOR rotates.)
3. Lift up the mechanism unit’s plunger/rib with the tip of a negative
screwdriver, and operate the unit in the same timing as /
supplying the power. (Cf. Fig. 7) /
Fig. 7
12. Measurement And Adjustments
12.1. Tuner Section
12.1.1. AM-IF Alignment
- AM-IF ALIGNMENT
77
