4. Supply DC9V to the plunger, and turn the power ON and OFF. (
Power +PL, -PL) (Cf. Fig. 5)
A. FWD PLAY: Supply the plunger power in a flash. (ON: approx.
5msec)
B. FWD FF: Supply the plunger power in a flash at PLAY mode.
(ON: approx. 5msec)
C. STOP: Supply the plunger power in a flash at FWD FF mode.
(ON: approx. 5msec)
D. REV PLAY: Supply the plunger power in a normal timing at
STOP mode. (ON: approx. 200msec)
E. REV REW: Supply the plunger power in a flash at REV PLAY
mode. (ON: approx. 50msec)
F. STOP: Supply the plunger power in a flash at FF mode. (ON:
approx. 50msec)
Repeat the operation ( FWD PLAY)
(Note) Other operation may start if a timing of supplying the
plunger power is missed.

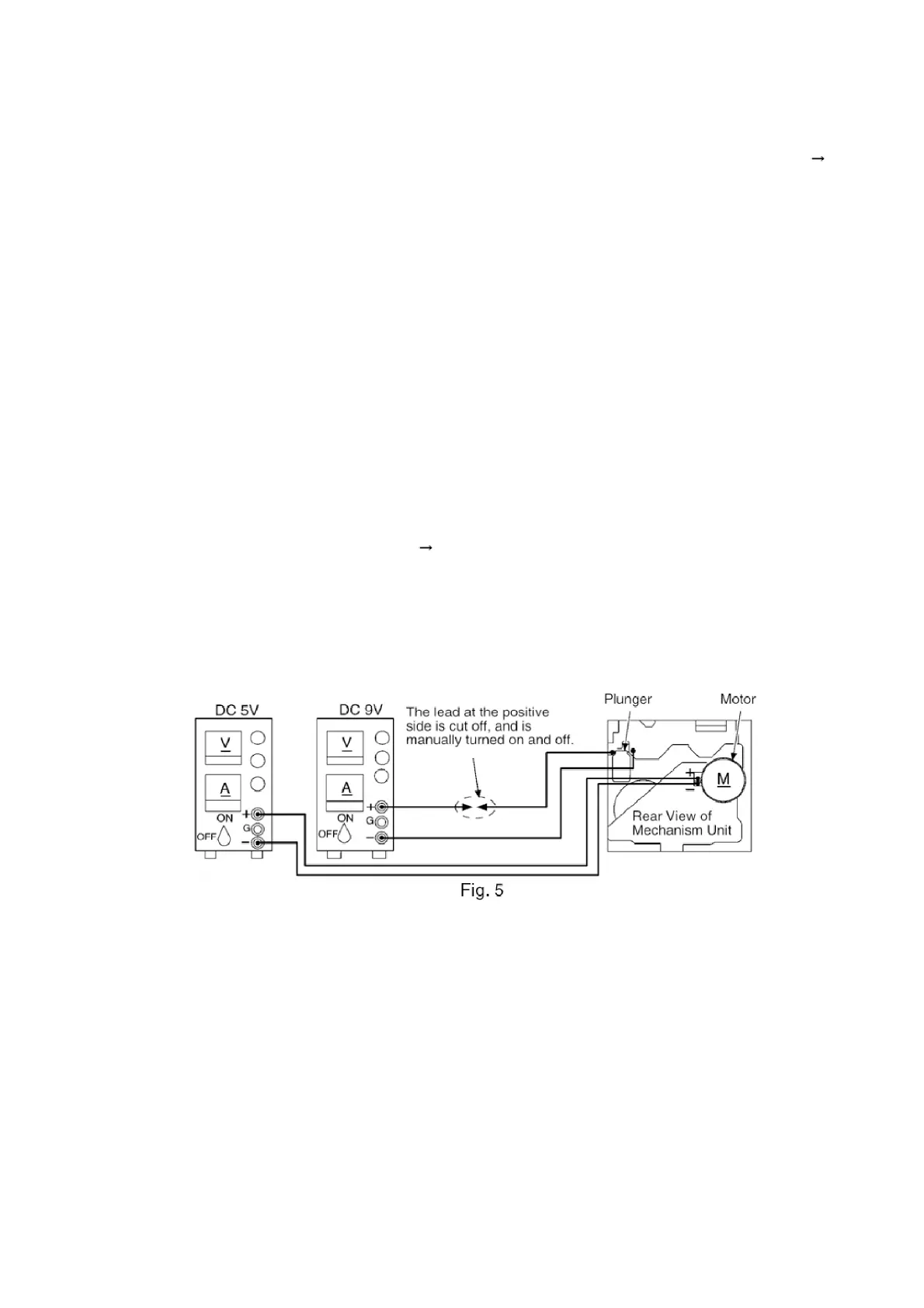

11.1.1. Connection Status between Mechanism and Power Supply (Motor,
Plunger)
11.1.2. Operative Parts of Mechanism Unit (EJECT lever fitted with rubber band,
/ Plunger/Rib operation)
Fig. 6
