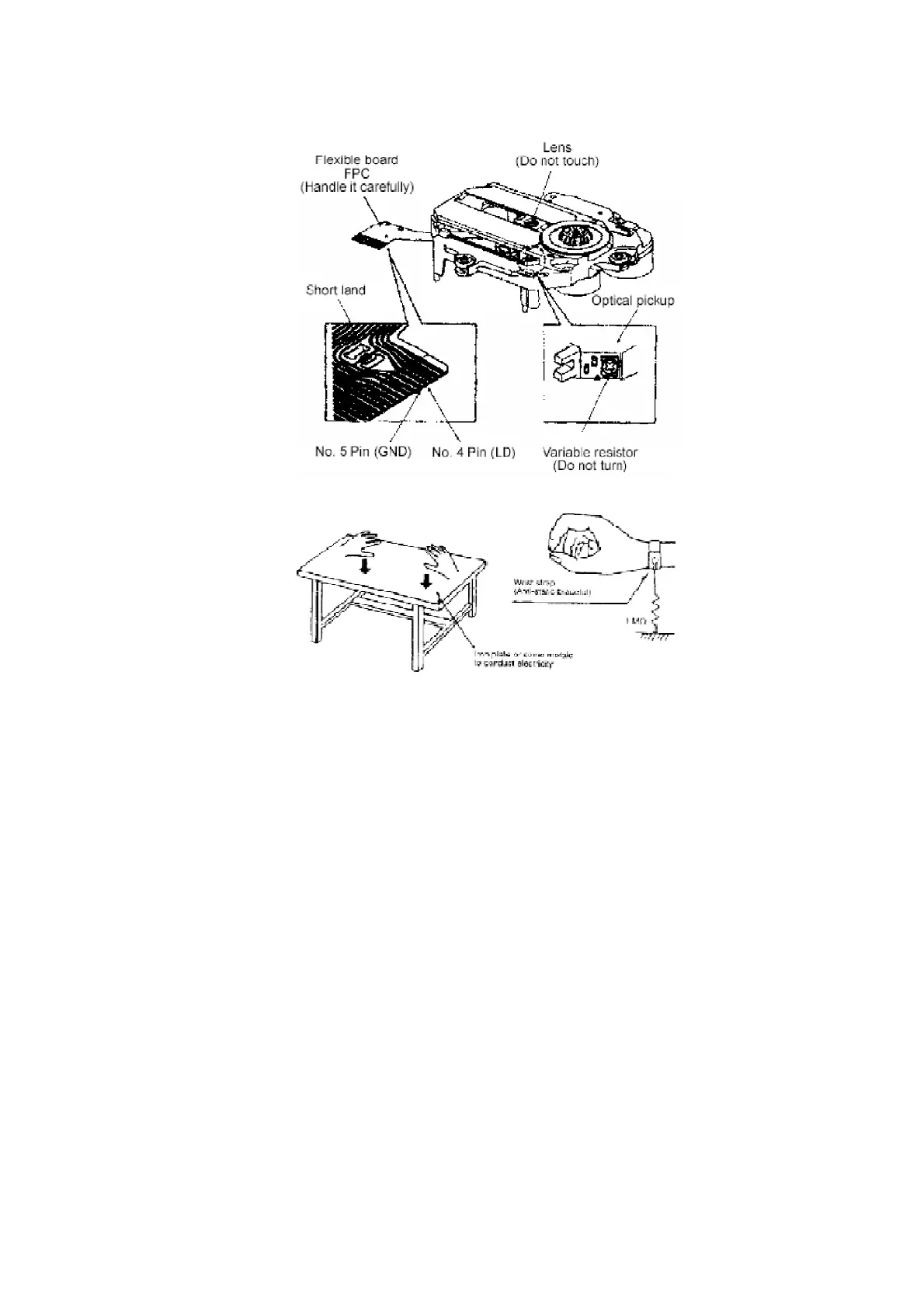

Figure No.7.2
8. Disassembly and Main Component Replacement
Procedures.
“ATTENTION SERVICER”
Some chassis components maybe have sharp edges. Be careful when disassembling and
servicing.
1. This section describes procedures for checking the operation of
the major printed circuit boards and replacing the main
components.
2. For reassembly after operation checks or replacement, reverse
the respective procedures. / Special reassembly procedures are
described only when required.
3. Select items from the following index when checks or
replacement are required.
4. Refer the Parts No. on the page of “Main component Replacement
9
